Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Specifications
Brand Name :
Glorytek
Model Number :
300DF
Place of Origin :
China
MOQ :
1
Price :
121000
Payment Terms :
T/T
Delivery Time :
30 work days
Description
Product Description

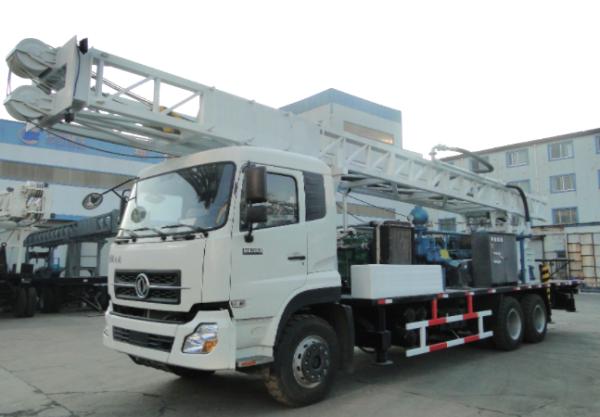

DF300 truck mounted water well drilling rig
DF300 truck mounted water well drilling rig is a direct circulation rotary drilling rig. The drilling rig uses the Dongfeng 6×4 special drilling rig chassis, the model is DFS1251GL18, the emission standard is China III, and the 11.00R20 steel wire cross-country pattern tires are used, which has good off-road performance.
The drilling rig has a compact structure, and the chassis engine is Yuchai YC6J180-33 diesel engine, emission of China III, 132kw/2500rpm with strong power. The drilling rig uses an independent diesel generator set as the power when drilling, and the mechanical hoist and the turntable work at the same time through the motor drive.
The drilling rig is equipped with mechanical double winches. The main and auxiliary hydraulic winches have the characteristics of large lifting force and fast lifting speed, which can meet the needs of normal drilling and have the ability to deal with general accidents in the well.

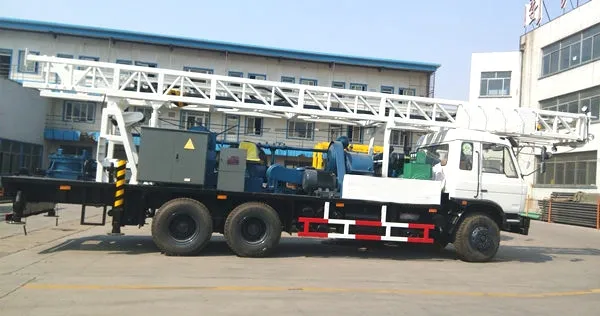

Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Specification
Nominal drilling depth (M)
300

Through hole diameter of turntable (mm)
500

Turntable speed (r/min)
8.6-142

Turntable torque (kN.m)
38.9-2.4

Single rope pulling force of main winch (kN)
30

Main hook lifting capacity (kN)
240

Single rope pulling force of auxiliary winch (kN)
30

Lifting force of secondary hook (kN)
120

Drill tower bearing capacity (kN)
240

Effective height of drilling tower (mm)
11900

Kelly rod (mm)
Φ108×108×7500

Drill rod (mm)
Φ88.9×9.8×5500

Power
Generator model
HH100/R6105AZLD-1 100kW

Main rig
Y225S-4 37kW/1470rpm

Mud pump
Y225S-4 37kW/1470rpm

Hydraulic pump
YE2-160M-4 11kW/1470rpm

Mud pump
Model
BW850/20
Bore (mm)
150
Displacement (L/min)
850, 600
Pump pressure (MPa)
2, 3
Input power (kW)
40
Truck chassis
Chassis model
DFS1251GL18
Chassis form
6×4
Engine
model
YC6J180-33
Type
Water-cooled four-stroke supercharged and inter-cooled
Rated power (kW)
132
Rated speed (rpm)
2500
Dimension
Working status (mm)
10500×2480×13700
Transport state (mm)
12500×2480×3700
Company Profile
Truck Mounted Multifunctional Borewell Drilling Rig Water Well Drilling Machine
Glorytek Industry (Beijing) Co., Ltd.
is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
