Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling
Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling
Specifications
Brand Name :
Glorytek
Model Number :
542
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD1400 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 piece per month
Delivery Time :
2 weeks
Packaging Details :
Seaworthy package
Color :
As picture or customized
Processing Type :
Forging, Casting
Connection :
Standard Types
Product Type :
Hammer
Usage :
Mining, Construction, Quarrying
Moq Of Hammer :
1set
Suitable Projects :
Water Well Drilling
Application :
Drilling
Origin :
Hebei, China
Description

RC Hammers

Product Description

Reverse circulation (RC) hammers are specialized drilling tools designed for efficient and effective drilling in various geological conditions. Here are their key features:

  1. Improved Drill Cuttings Removal: RC hammers use a reverse flow of air to bring cuttings to the surface, ensuring cleaner and more accurate samples.
  2. High Penetration Rate: Engineered for optimal energy transfer, they provide rapid penetration through hard rock formations.
  3. Durable Construction: Made from high-strength materials, these hammers are built to withstand harsh working environments and prolonged use.
  4. Versatile Application: Suitable for a range of drilling projects, including mineral exploration, water well drilling, and geotechnical investigations.
  5. Enhanced Sample Quality: The reverse circulation method minimizes contamination, resulting in higher-quality geological samples.

RC hammers are widely used in the mining and exploration industries, allowing for efficient drilling and accurate sample retrieval. Their robust design and effective performance make them a preferred choice for contractors seeking reliable solutions in challenging drilling conditions.

Item
GLF345
GLF355
GLF360
GLF385
Drilling Dia. (ф/mm)
110-130
135-155
160-200
200-254
Hammer Length(mm)
1281
1292
1345
1578
Outside Dia.(ф/mm)
105
124
154
190
Weight(kg)
36
36
61
 61
Working Pressure(Mpa)
0.7-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air Consumption (M3/Min.)
5.7-14.2
6.5-19.3
9-18
12-30.8
Torque(N.M)
600
 791
1040
1260
Impact Frequency (Times/Min.)
≥800
800-1200
600-1100
660-1208
Connection 1
API 2-7/8
T 91-3
API 4-1/2
API 4 1-2

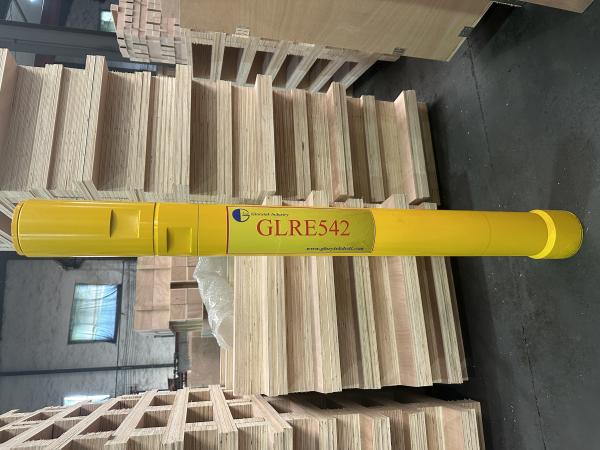

Product Picture

Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling

Company Profile

Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting projects ect.

Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling

Dth Hammer 542 Reverse Circulation Down The Hole Hammer For Well Drilling

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ


Q:Are you Manufacture or Factory?
A:Yes we have our own factory.

Q:What the MOQ?
A:1set.

Q:How to place an order?
A:1) Inform size and model/main usage/quantity

Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
