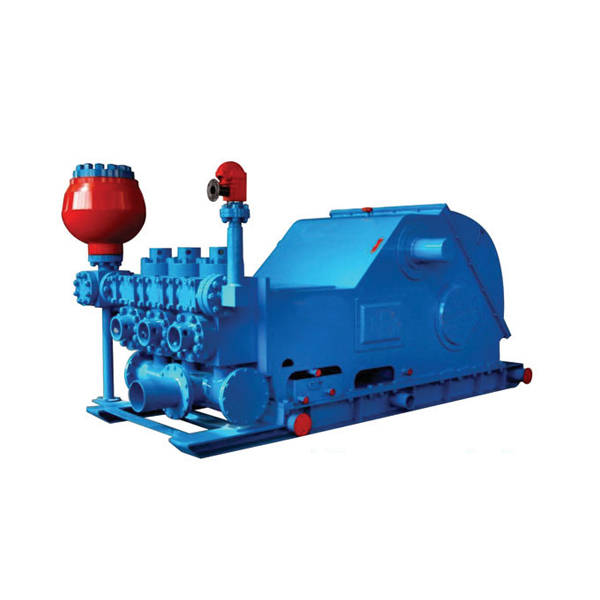

3NB-350 Single Action Triplex Mud Pump for Water Well Drilling with 350hp Power
3NB-350 Single Action Triplex Mud Pump for Water Well Drilling with 350hp Power
Specifications
Payment Terms :
T/T
MOQ :
1
Brand Name :
GLORYTEK
Model Number :
3NB-350
Price :
Negotiable
Place of Origin :
China
Description
3NB-350 Mud Pump For Water Well Drilling
3NB-350 Single Action Triplex Mud Pump for Water Well Drilling with 350hp Power
Single Action Triplex Back and Forth Piston Pump
Technical Specifications
Model 3NB-350
Type Single Action Triplex
Input Power 350hp
Motive Power 6190ZC-1 (diesel engine) / Y400-6.28KW (motor)
Rated Pump Speed 120 Impact/min
Stroke Length 180mm
Gear Ratio 4.483
Rated Input Speed 582.8 Rev/min
Continuous Speed 540 Rev/min
Inhalation Diameter 203mm
Discharge Pipe Diameter 76mm
Dimensions 3100 * 2080 * 2015 mm
Weight 8.058 tons
Performance Parameters
Pump Stroke Bore (mm)
90 100 110 120 130 140
130 Impact/min 7.44 L/S 9.18 L/S 11.1 L/S 13.23 L/S 15.52 L/S 18.01 L/S
120 Impact/min 6.87 L/S 8.48 L/S 10.26 L/S 12.21 L/S 14.33 L/S 16.62 L/S
110 Impact/min 6.29 L/S 7.77 L/S 9.4 L/S 11.19 L/S 13.14 L/S 15.23 L/S
100 Impact/min 5.72 L/S 7.06 L/S 8.55 L/S 10.17 L/S 11.94 L/S 13.84 L/S
Pump Pressure (Mpa) 31 25 20.8 17.5 14.9 12.8
Mechanical efficiency: 90% | Volumetric efficiency: 100%
