Specifications
Brand Name :
GLORYTEK
Model Number :
GLF400
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
25 days
Packaging Details :
standard exporting packing
Name :
GLF500 Top Hammer Full Hydraulic Reverse Circulation RC Drill Rig
Max. drill depth :
300m
Drill diameter :
110～305mm
Drill rod diameter :
102mm
Drill rod length :
3m
Working air pressure :
1.2-3.5 MPa
dimension :
6.3×2.1×2.8 m
Air consumption :
16-55 m³/min
Weight :
8.5t
Drill method :
Air reverse circulation drilling, down-the-hole hammer drilling
Description

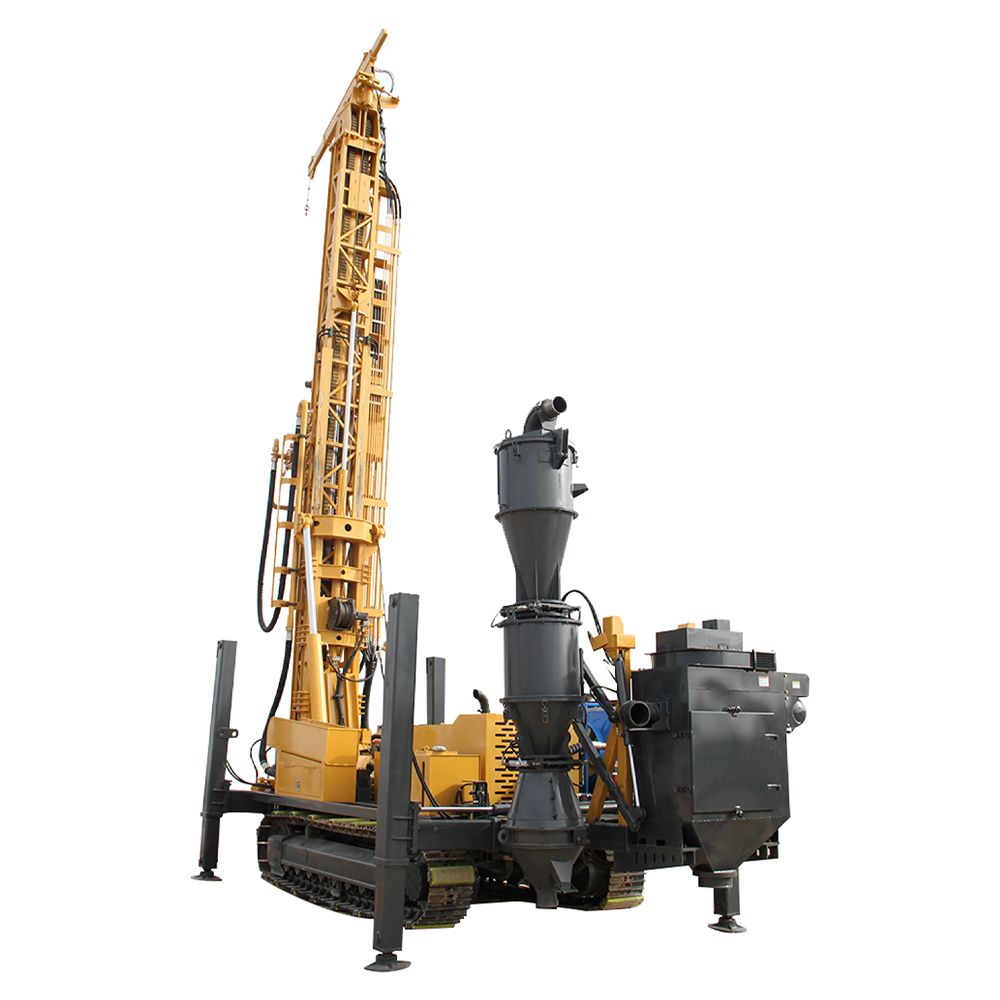

GLF400 Full Hydraulic Reverse Circulation RC Drill Rig

Description

The GLF400 reverse circulation exploration drill rig is a lightweight, high-efficiency,environmentally friendly, multi-functional, fully hydraulic drilling rig. It incorporates the latest RC drilling technology, with rock dust effectively collected via a dust collector to prevent environmental pollution. Cuttings can also be gathered through a cyclone separator for use in sampling and analysis by geological exploration departments. Featuring an advanced structure,user-friendly operation, and minimal auxiliary time, it is widely applicable for drilling water wells, monitoring wells, and other exploratory boreholes, as well as for drilling geothermal heat pump boreholes in urban construction. This rig employs compressed air down-the-hole drilling, achieving high penetration rates in rocks with Mohs hardness f=6-20.
Its simple structure facilitates operation and maintenance, incorporating slide frame compensation,drill pipe connection/disconnection, rotation, and winch functions.

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 300 Meter Depth

Technical Parameter

Model

GLF400

Max. drill depth

300m

Drill diameter

105-305mm

Working air pressure

1.2-3.5 MPa

Air consumption

16-55 m³/min

Drill rod length

3m

Drill rod diameter

102mm

Axial pressure

6t

Lifting force

22t

Slow lifting speed

4m/min

Slow feed speed

0.5-8m/min

Fast lifting speed

20m/min

Fast feed speed

32m/min

Rotation torque

8000Nm; 4000Nm

Rotation speed

0-75r/min；

0-150r/min

Small winch lifting force

1.5t

wire rope length

60m

Feeding efficiency

10-35m/h

Grade ability

21°

Weight

11t

Whole dimension

6.2*1.85*2.8 m

Application formation

Loose layer and bedrock

Drill method

Air reverse circulation drilling, down-the-hole hammer drilling

Hammer

Middle pressure and high air pressure series

Certificate

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 300 Meter Depth


Customer Visting

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 300 Meter Depth

Company Profile

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 300 Meter Depth

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
