High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
High Pressure 6 DHD360 Down The Hole Hammer For Blasting Applications
Specifications
Brand Name :
Glorytek
Model Number :
GL360SK 6''
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 piece per month
Delivery Time :
2 weeks
Packaging Details :
Seaworthy package
Application :
Drilling
Moq Of Hammer :
1set
Keyword :
DTH Drilling Hammer
Material :
High-Quality Steel
Hammer Sizes :
6''
Impact Frequency :
Depends on Size
Shank Types :
DHD, Ql, Mission, SD, etc.
Air Consumption :
Depends on Size
Advantage :
High Performance, High Wear Resistant
Manufacturing Process :
Forging
Description
Heavy Duty DHD360 6 Inch DTH Hammer For Mining Operations
DTH Hammers

A DTH (Down-the-Hole) hammer is a precision-engineered drilling tool that delivers powerful impact force to break rock formations during drilling operations. This hammer, attached to the end of the drill string, uses compressed air to drive a piston, striking the drill bit to create boreholes efficiently. DTH hammers are highly efficient, versatile, and suitable for various drilling applications, including mining, construction, water well drilling, and geotechnical exploration. With robust construction and advanced technology, DTH hammers offer high penetration rates, low maintenance requirements, and reliable performance in challenging geological conditions.

Technical Specifications
Item GL345A GL355K GL360K GL380K
Drilling Dia. (ф/mm) 105-130 140-152 165-219 203-350
Hammer Length(mm) 1034 1098 1372 1504
Outside Dia.(ф/mm) 98 124 152 180
Weight(kg) 39 70 92 230
Working Pressure(Mpa) 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1
Air Consumption (M³/Min.) 3.5-15 4.5-18 9-26 9.6-24.8
Torque(N.M) 335 800 1150 1870
Impact Frequency (Times/Min.) ≥800 840-1500 950-1650 1100-1550
Connection 1 API 2-3/8 API 2-3/8 API 3-1/2 API 4 1-2
Connection 2 Ф64-8 Ф84-8 Ф99.5-8 ф128-10

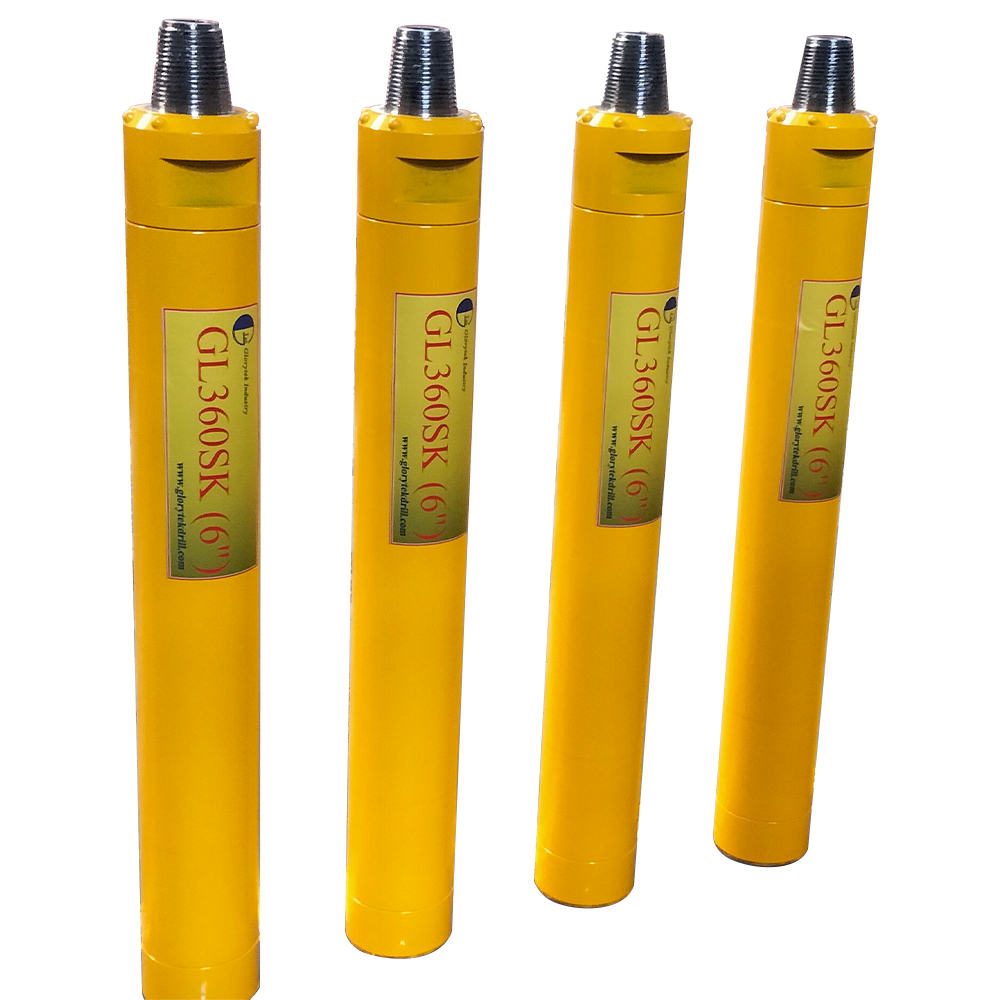

Product Image
High Pressure 6
Company Profile
High Pressure 6

Glorytek Industry (Beijing) Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting projects etc.

High Pressure 6 High Pressure 6
After-sale Warranty
  • Free change once the problem caused by the quality issue.
  • Timely after-sale assistance shall be provided all the time.
Frequently Asked Questions
Q: Are you Manufacture or Factory?
A: Yes we have our own factory.
Q: What the MOQ?
A: 1 set.
Q: How to place an order?
A: 1) Inform size and model/main usage/quantity
Q: What is the Payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
