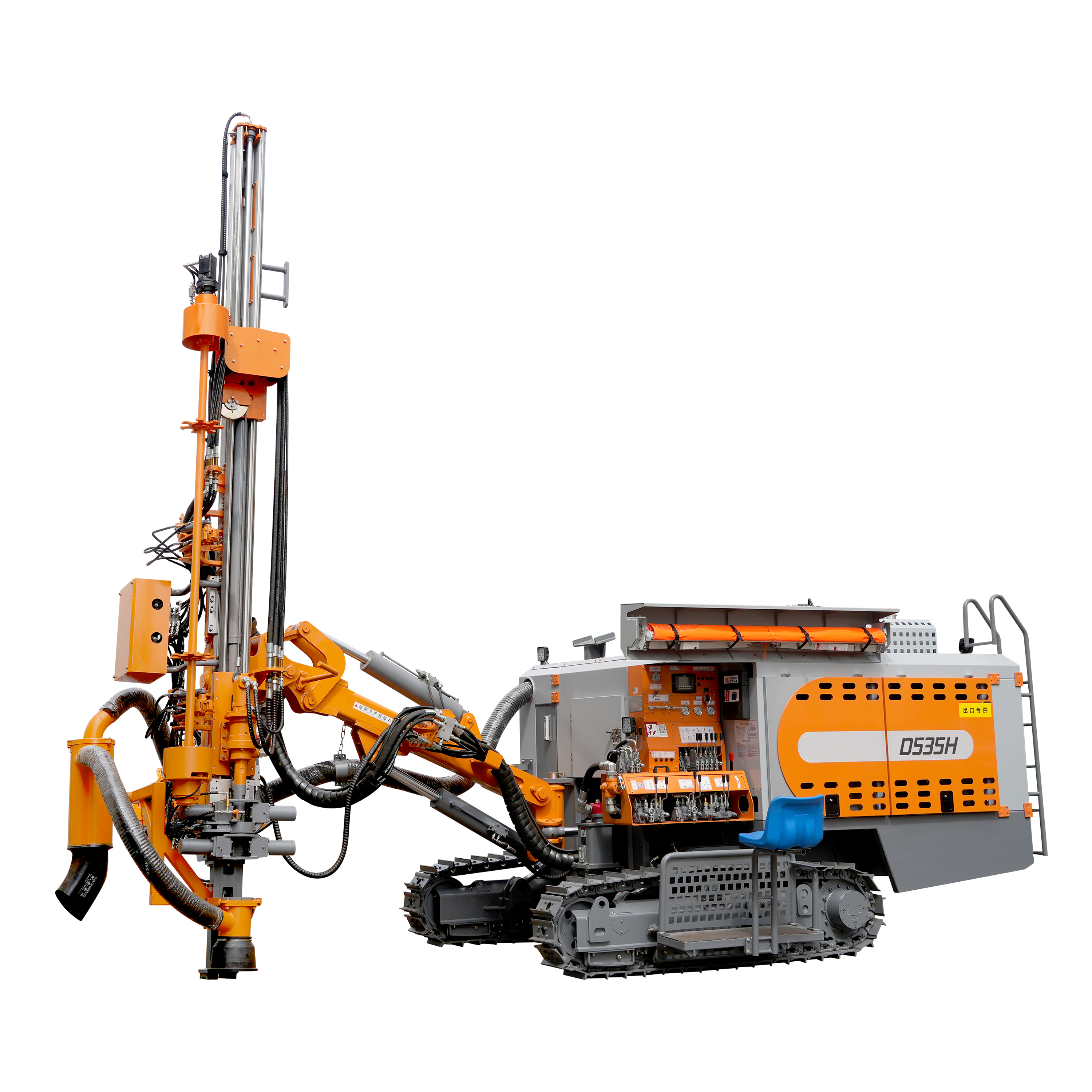

D535H Small Integrated DTH Surface Rock Drill/Drilling Rig
D535H Small Integrated DTH Surface Rock Drill/Drilling Rig
Specifications
Brand Name :
Glorytek
Model Number :
D535H
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
45 days
Packaging Details :
standard exporting packing
Air working pressure: :
18 bar
Air flow FAD: :
12 m³ / min
Hole range: :
Φ90 - 127 mm
Drill pipe size: :
Φ60 mm
Drill pipe handling capacity: :
7
Hole depth: :
21 m
Description

ROCK DRILLING RIG

The D535H integrated down-the-hole drill is an upgrade on the basis ofwell-proven models, and the core hydraulic components are frominternationally renowned brands. With the single-powered screw aircompressor and hydraulic system, and the power output at peaks shift design,comparing with separate drill arrangement, the total power of the dieselengine is reduced by about 30%, and the maintenance cost is reduced by50%.The integrated design of the D535H solves the problems of air compressortransportation, air pressure pipeline loss and remote management, andimproves productivity.


D535H Small Integrated DTH Surface Rock Drill/Drilling Rig

Technical Parameter

Air working pressure:
18 bar
Air flow FAD:
12 m³ / min
Hole range:
Φ90 - 127 mm
Drill pipe size:
Φ60 mm
Drill pipe handling capacity:
6+1
Hole depth:
21 m
Feed total length:
6,100 mm
Feed extension:
970 mm
Feed force:
7.5 kN
Tramming speed.Max:
3.2 km/h
Hill climbing ability:
25°
Fuel tank capacity:
250 L
Carrier ground clearance:
340 mm
Track frame oscillation angle:
+/-10°
DTH hammer:
3.5 inch
Rotation torque:
1,500 Nm
Drill pipe length:
3,000 mm
Feeding:
Hydraulic cylinder - steel rope feeding system
Feed travel length:
3,400 mm
Feed rate max.:
0.88 m/s
Pull up force:
16.5 kN
Traction force:
96 kN
Weight(Options excluded):
8,630 kg

Related Products

D535H Small Integrated DTH Surface Rock Drill/Drilling Rig

Working Conditions

D535H Small Integrated DTH Surface Rock Drill/Drilling Rig

Company Profile

D535H Small Integrated DTH Surface Rock Drill/Drilling Rig

Glorytek Industry (Beijing)Co.,Ltd.,located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
