D545H Integrated DTH Surface Rock Drill/Drilling Rig Multi-Directional Drilling Design
D545H Integrated DTH Surface Rock Drill/Drilling Rig Multi-Directional Drilling Design
Specifications
Brand Name :
Glorytek
Model Number :
D545H
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
45 days
Packaging Details :
standard exporting packing
Air working pressure: :
18 bar
Air flow FAD: :
17 m³ / min
Hole range: :
Φ90 - 130 mm
Drill pipe size: :
Φ68/76 mm
Drill pipe handling capacity: :
7
Hole depth: :
24 m
Description

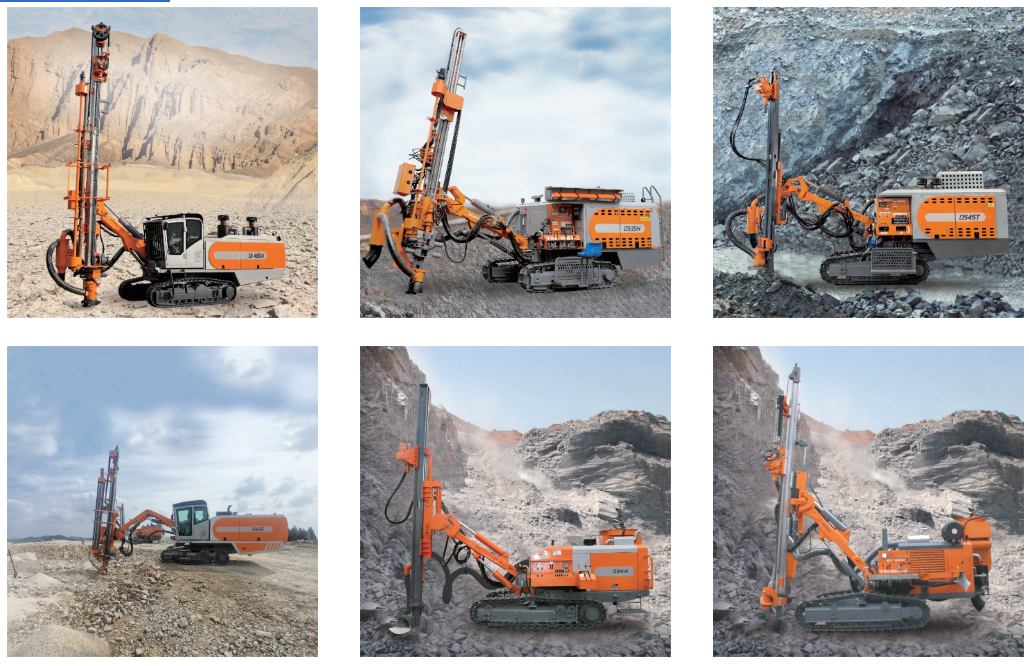

ROCK DRILLING RIG

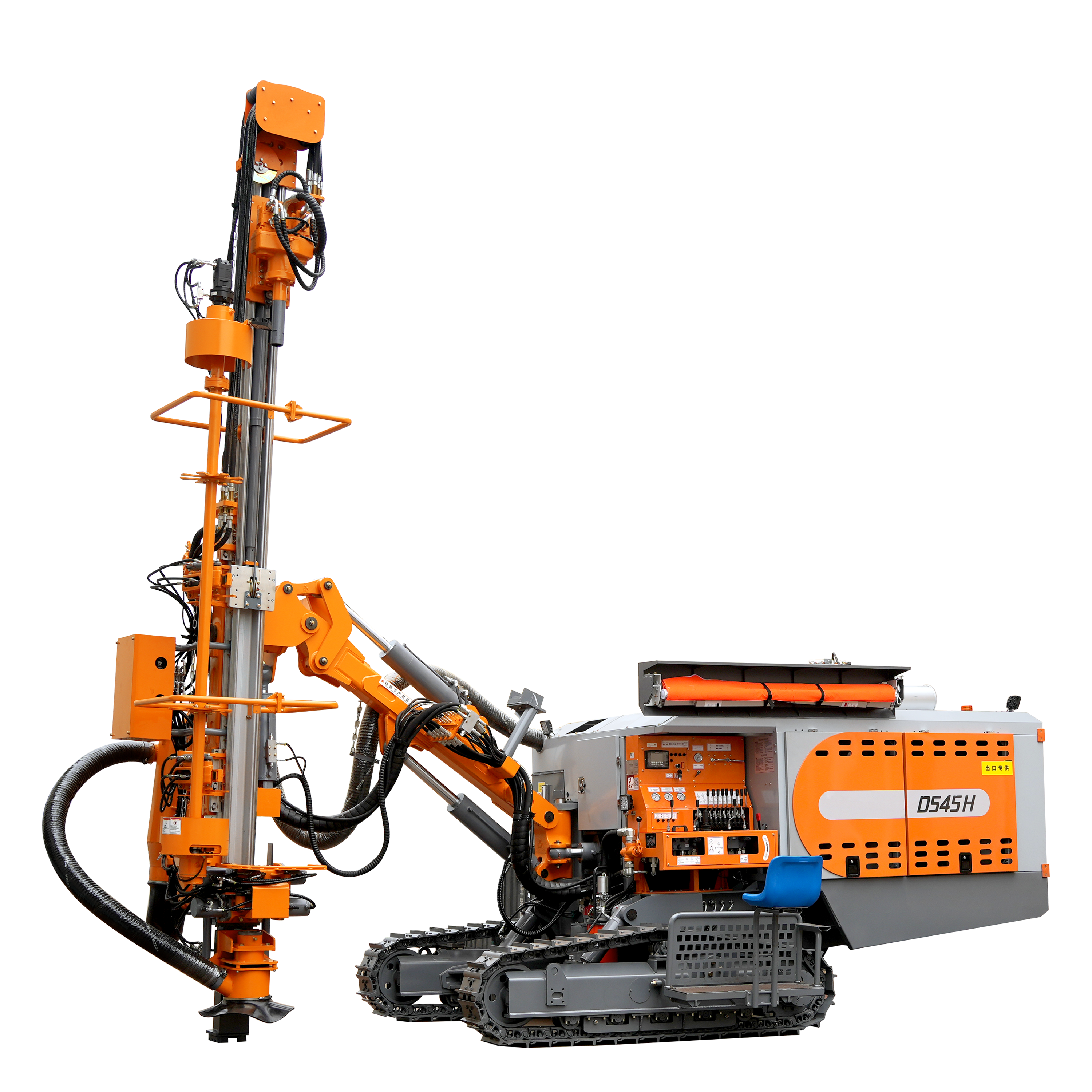

The D545 integrated down-the-hole drill is an upgrade on the basis of well-proven models, and the core hydrauliccomponents are from internationally renowned brands. With thesingle-powered screw air compressor and hydraulic system, and the poweroutput at peaks shift design, comparing with separate drill arrangement,the total power of the diesel engine is reduced by about 30%, and themaintenance cost is reduced by 50%.The integrated design of the D545 solves the problems of air compressor transportation, air pressure pipelineloss and remote management, and improves productivity.


D545H Integrated DTH Surface Rock Drill/Drilling Rig Multi-Directional Drilling Design

Technical Parameter

Air working pressure:
18 bar
Air flow FAD:
17 m³ / min
Hole range:
Φ90 - 130 mm
Drill pipe size:
Φ68/76 mm
Drill pipe handling capacity:
7
Hole depth:
24 m
Feed total length:
6,100 mm
Feed extension:
1,220 mm
Feed force:
13 kN
Tramming speed.Max:
3.3km/h
Hill climbing ability:
25°
Fuel tank capacity:
300 L
Carrier ground clearance:
340 mm
Track frame oscillation angle:
+/-10°
DTH hammer:
3.5/4 inch
Rotation torque:
1,900 Nm
Drill pipe length:
3,000 mm
Feeding:
Hydraulic cylinder+rope /Hydraulic cylinder+ chain
Feed travel length:
3,400 mm
Feed rate max.:
0.88 m/s
Pull up force:
16.5 kN
Traction force:
119 kN
Weight(Options excluded):
10,000 kg
