GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
Specifications
Brand Name :
Glorytek
Model Number :
GL600S
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability :
40sets/month
Delivery Time :
20 days
Packaging Details :
Standard exporting packing
Name :
GL600S Crawler Type DTH Water Well Drill Rig Machines For Borehole
Keyword :
Drill Rig Machines For Borehole
Depth :
600m
Drilling diameter :
105-500mm
Air pressure :
1.05-4.5Mpa
Rod length :
3m,6m
drill rod dia. :
89-102-114mm
Lifting force :
35t
The engine :
176kw
Dimension :
5800*2200*2550mm
Description

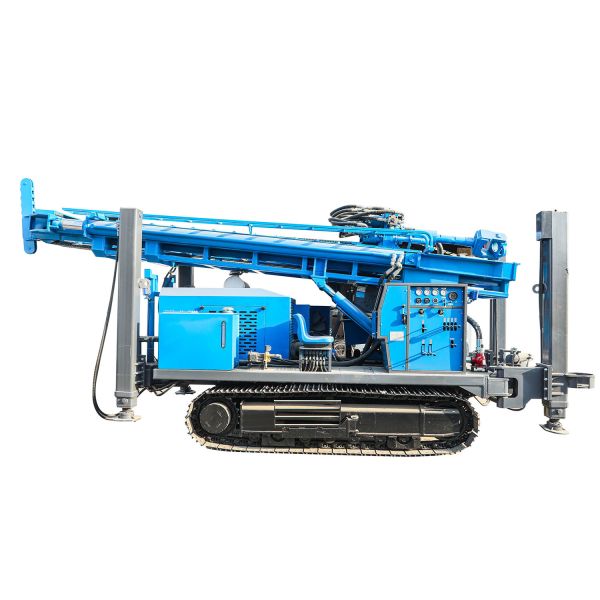

GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter
GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole
The GL600S crawler water well drill rig machine is designed for geothermal, industrial, and agricultural drilling applications. Featuring a durable steel crawler chassis for easy mobility and a powerful 176kw diesel engine, this rig delivers exceptional drilling capacity.
Technical Specifications
Parameter Value
Max Drilling Depth (m) 600
Drilling Diameter (mm) 105-500
Air Pressure (Mpa) 1.05-4.5
Air consumption 16-60m³/min
Rod Length (m) 3.0 / 6.0
Rod Diameter (mm) 89-102-114
Main Shaft Pressure (T) 14
Lifting Force (T) 35
Fast lifting speed 24m/min
Rotary Torque (N.m) 13000
Rotary Speed (r/min) 30/170
Winch Lifting Force (T) 5
High leg stroke (M) 1.5-1.65
Moving Speed (km/h) 3.5
Uphill Angle (°) 21
Weight of the Rig (T) 13
Engine 191KW
Overall Dimensions (MM) 5800*2200*2550
Working Condition loose layer or bedding rock
Drilling Method Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
Customer Visiting
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
Company Profile
About Glorytek Industry
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to clients' requirements. As an important member of "Sundrill Corporation," our 250,000 square meter facility includes machining machinery, CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of equipment and 600 employees, our products have been exported to more than 60 countries worldwide.
Warranty Information
For drill rig main parts, if quality issues are confirmed, we provide free replacement within one year after shipping.
