16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
Specifications
Brand Name :
Glorytek
Model Number :
GL-160
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model: :
GL-160 Mini HDD Drill Rig
Rig weight: :
2.15t
Engine power: :
55kw
Max. push & pull force: :
160N.M/16TON
Traveling form: :
remote control
Drill rod diameter: :
50mm
Drill rod length: :
2m
Description

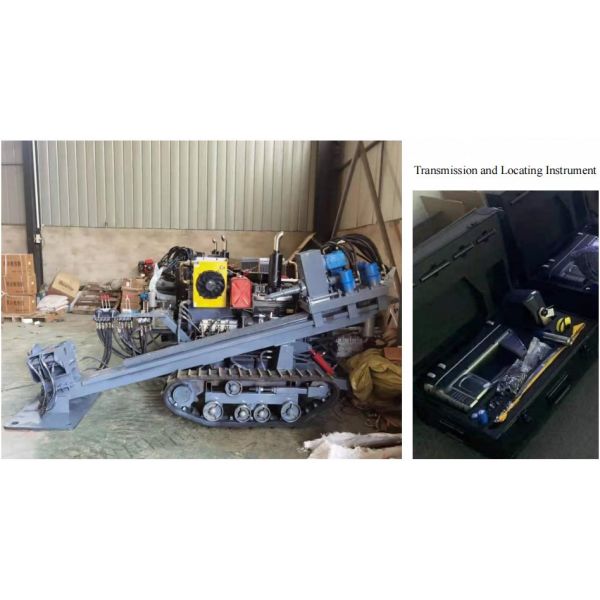

GL-160 Mini HDD Drill Rig

Product Description

1-Technical Parameter

Main Technical Parameters Configuration List
Model: GL-160 Mini HDD Drill Rig HDD drill rig
(standard configuration)		 1set
Rig weight: 2.15t
Dimensions (L×W×H): 3800*1600*1800mm Transmission and locating instrument
(optional)		 1set
Engine power: 55kw
Max. push & pull force: 160N.M/16TON Pilot bit
(standard configuration)		 1pc
Traveling form: remote control
Walking speed: 2km/h Male and female pulling eye
(standard configuration)		 1set
Water injection system: 160 type three-cylinder mud pump
Max. pressure of mud pump: 2.8MPa Drum Reamer
(standard configuration)		 2pcs
Max. flow of mud pump: 160L/min
Entry angle: 28° Swivel(15T)
(standard configuration)		 1pc
Departure angle: 20°
Climbing ability: 35° Drill rod
(standard configuration)		 2m/pc, 50pcs, for 100m
Drill rod diameter: 50mm
Drill rod length: 2m
16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price

Related Products

16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
Packing and Transport

Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

Company Profile
16ton Mini Horizontal Directional Drill/Drilling Rig with Factory Price
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

After-sale Warranty

(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.

(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.

(3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

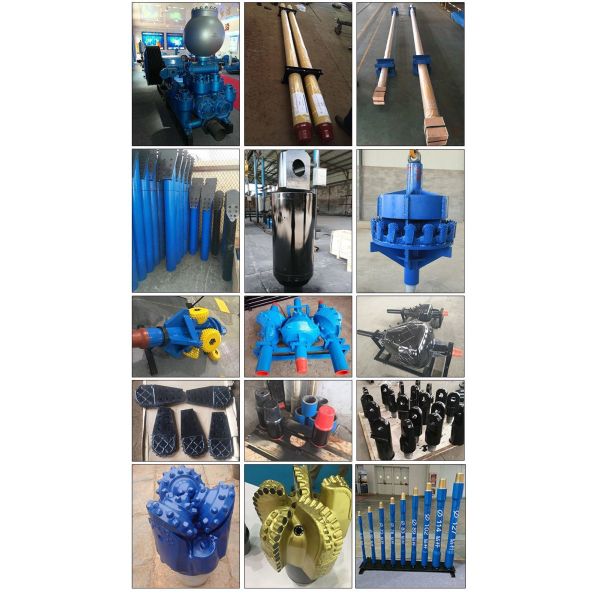

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
