600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction
600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction
600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction
600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction
Specifications
Brand Name :
GLORYTEK
Model Number :
GL600S
Certification :
CE,SGS,TUV
Place of Origin :
China
MOQ :
1 sets
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
20 workdays
Packaging Details :
standard exporting packing
Hole Diameter :
105--500(mm)
Model :
GL-600S
Type :
Rotary Drilling Rig
Uphill Angle :
21°
High Light :
Water Well Drill Rig , well drilling rig
Diesel Engine :
176KW
Motor :
DC Motor
Drill Rig Weight :
13000kg
Rotation Speed :
0-1000rpm
Drill Rig Type :
Water Well Drill Rig
Supporting Form :
Hydraulic Unit
Description

Top Hammer Hydraulic Rotary Water Well Drill Rig with 600m Drilling Depth

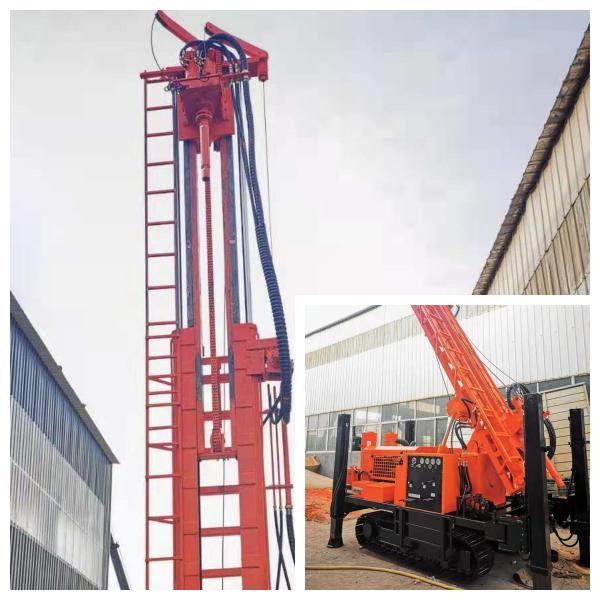

Drilling Rig Show:
600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction

Specifications:
(For reference,more details please contact us)

Technical Parameter
Max drilling depth 600m
Drilling diameter 105-500mm
Air pressure 1.05-4.5Mpa
Air consumption 16-60m³/min
Rod length 3m/6m
Rod diameter 89/102/114mm
Main shaft pressure 14T
Lifting force 35T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 13000 N.M
Rotary speed 30/170r/min
Winch lifting force 5T
High leg stroke 1.5m-1.65
Drilling efficiency 10-35m/h
Moving speed 3.5Km/h
Uphill angle 21°
Weight of the rig 13T
Dimension 5.8m x 2.2m x 2.55m
Working condition loose layer or bedding rock
Drilling method Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling
Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 176KW


Description of GL-600S:

High efficiency and energy-savingmultifunctional drilling machine, mainly used for drilling water wells,monitoring wells, geothermal air conditioning holes, anchoring, foundation andbridge pile holes drilling; the rig can adopt DTH hammer, mud pump,reversecirculation,sleeve following-up and other boring technologies, can effectivelysolve the problems during drilling in various terrain.

GL-600S drilling machine is equipped with imported large torque hydraulic rotarypower head, which can be selected according to different constructionrequirements, greatly saving the cost ofpurchasing equipment and effectively improving construction efficiency.


Application:

This drilling rig is suitable for drilling projects such as water well drilling, general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling.

Working Draw


600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction

Related Product
Support air drilling or mud drilling equipment and drilling tools.
Our Steel Crawler Mounted Water Well Drilling Rig, including 100m, 150m, 200m, 300m, 350m, and 600 meters, our drilling rig can meet your specific

We also have trailer type and truck mounted type.

600m Drilling Depth Top Hammer Hydraulic Water Well Drill Rig For Construction
