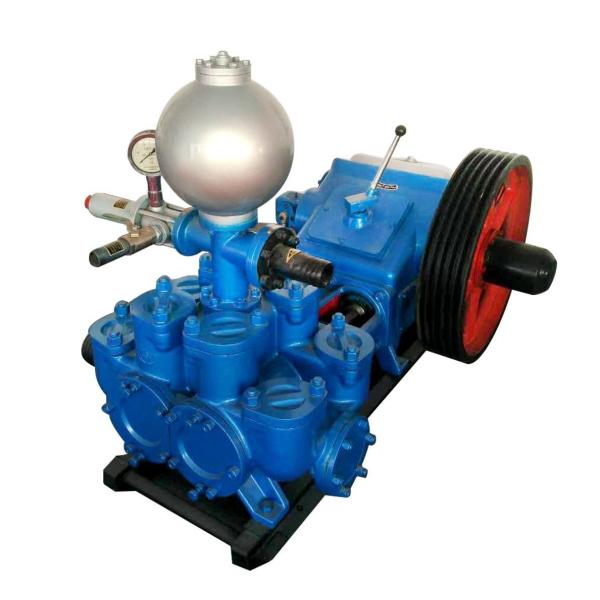

BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate
BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate
BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate
BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate
Specifications
Brand Name :
GLORYTEK
Model Number :
3NB series mud pump
Certification :
CE,SGS,TUV
Place of Origin :
China
MOQ :
1 sets
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
20 workdays
Packaging Details :
standard exporting packing
Theoretical Flow Rate :
850L/min
Application :
Drilling
Style :
Horizontal
Structure :
Piston pump
Feature :
High Presuress
Mud Pump Parts :
Double Mud Pump fluid end parts
Driving Force :
electric or diesel or hydraulic motor
Description

▶Description of structure:

The pump head is mainly composed of a cylinder liner, a cylinder top sleeve, a cylinder head, a piston, a tie rod, a steel ball, a valve seat, a valve cover and the like. It is a bottom-in and top-out type.

The rod drives the piston to reciprocate to control the steel ball and The valve seat is opened and closed for suction and discharge operations.

The cylinders have a common suction and drainage chamber. An inlet pipe joint is installed on the waist flange on the side of the suction chamber to connect the suction hose and the water filter, and the other end is blocked with the inlet pipe end cap.



▶Detailed Photos:

BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate

BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate

▶Product Parameters:
This is BW series mud pump, a kind of horizontal type, double-acting reciprocating piston pump. The followings are about parameters of different types of BW drilling mud pumps.

Type:BW250 Horizontal double cylinder reciprocating single acting piston pump
Cylinder Liner Dia(mm) 80 65
Piston Stroke(mm) 100
Theoretical Flow Rate(L/min) 250 145 90 52 166 96 60 35
Rated Pressure(MPa) 2.5 4.5 6 6 4 6 7 7
Storkes Per Minute 200 116 72 42 200 116 72 42
Input Power(kW) 15
Overrall Dimension(L×W×H) (mm) 1000×995×650
Weight(kg ) 760


Type:BW850/2 Horizontal double cylinder reciprocating double action piston pump
Cylinder Liner Dia(mm) 150
Piston Stroke 180
Theoretical Flow Rate(L/min) 600 850
Rated Pressure(MPa) 3 2
Strokes Per Minute 58 82
ID of Suction Pipe 127
ID of Discharge Pipe 64
Input Rotating Speed 470
Input Power(kW) 40
Overrall Dimension(L×W×H)(mm) 2000×1030×140

▶Application

It can be applied to the geological exploration and engineering exploration of railways, water conservancy, metallurgy, construction, geology, foundation plugging, grouting, etc. This slurry pump is used to provide flushing fluid in the borehole during geophysical exploration, and supply the flushing fluid to holes in the working rock of a working geological rig.

▶Packaging

BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate

▶Company Profile
BW850/2 Drilling portable mud pump 600-850 L/Min Theoretical Flow Rate

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

▶Related product
We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
