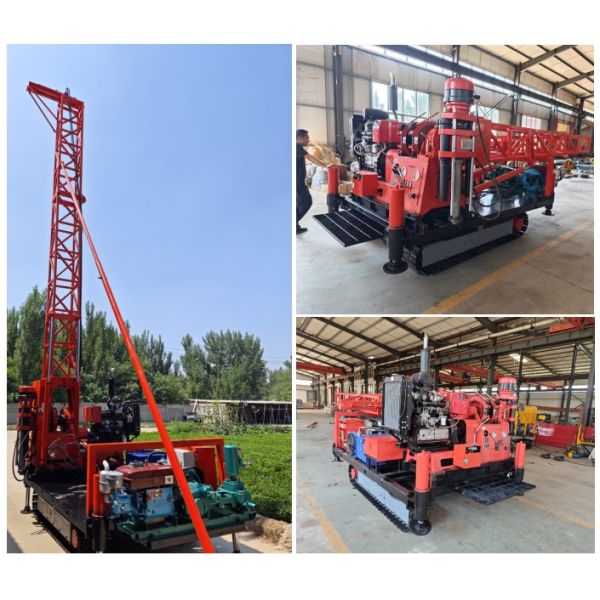

Geological Sample Diamond Exploration Rig 100m 150m 200m 300m Inclined Hole Sampling
Geological Sample Diamond Exploration Rig 100m 150m 200m 300m Inclined Hole Sampling
Geological Sample Diamond Exploration Rig 100m 150m 200m 300m Inclined Hole Sampling
Geological Sample Diamond Exploration Rig 100m 150m 200m 300m Inclined Hole Sampling
Specifications
Brand Name :
Glorytek
Model Number :
GLXY-2T
Place of Origin :
China
Certification :
CE, TUV, SGS
MOQ :
1SET
Price :
20000
Packaging Details :
Seaworthy Packing
Delivery Time :
around 15-20 days after your advance payment.
Payment Terms :
30% advance payment by T/T after issuing proforma invoice, 70% remaining payment by T/T before dispatching from our factory.
Supply Ability :
100 sets every month
Drill rig dimensions :
L2200*W900*H1800
Wire rope capacity :
50m
Drilling Depth :
Up To 1,000 Feet
Drill-tower height :
7.5/8.5m(Optional)
Cylinder leg stroke :
1000/1600mm(Optional)
Weight(without power unit) :
1100kgs
Max .lifting capacity(single rope) :
3000kgf
Weight(power unit) :
420kgs
Description

Product Description:

Exploration Drilling Rigs offer the perfect combination of high-capacity exploration and deep exploration capabilities. The GLXY-2T Crawler core drill rig is special designed for inclined hole drilling.

Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.

Geological Sample Diamond Exploration Rig 100m 150m 200m 300m Inclined Hole Sampling

Technical Parameters:

Parameter Value
Drilling Depth Up To 1,000 Feet
Max.Lifting Capacity(Single Rope) 3000kgf
Motor Rated Power 22kw
Hydraulic Tower Height 8.5m
Drill-tower Height 7.5/8.5m(Optional)
Weight(without Power Unit) 1100kgs
Wire Rope Capacity 50m
Weight(Power Unit) 420kgs
Motor Rated Speed 1470(r/min)
Cylinder Leg Stroke 1000/1600mm(Optional)
Special Properties inclined hole drilling

Support and Services:

Exploration Drilling Rigs Technical Support and Service

Warranty of GLXY-2T Crawler Core Drill Rig:
(1)Within the period of the first year after delivery, the main parts of Core Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.

Packing and Shipping:

The packaging and shipping of exploration drilling rigs is as follows:

  • Exploration drilling rigs will be carefully packaged, using shockproof and water-resistant materials, to protect them from any damage during transportation.
  • The packed exploration drilling rigs will be shipped out using reliable and secure delivery services.
  • The delivery time for exploration drilling rigs will depend on the location of the customer.
