Choke Manifold Working Pressure psi (mpa) 3000(21) Working Temperature ºC (°F) P.U -29~121 (-20~250)
Choke Manifold Working Pressure psi (mpa) 3000(21) Working Temperature ºC (°F) P.U -29~121 (-20~250)
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Main path and Side path in :
3 1/8×2 1/16(80×52)
Working Pressure psi :
3000(21)
Working Temperature ºC :
P.U -29~121 (-20~250)
Working medium :
Mud Gas(sulfur-hydrogen)
Description

Choke Manifold Working Pressure psi (mpa) 3000(21) Working Temperature ºC (°F) P.U -29~121 (-20~250)


Descriptions of Choke Manifold Working Pressure psi (mpa) 3000(21) Working Temperature ºC (°F) P.U -29~121 (-20~250):

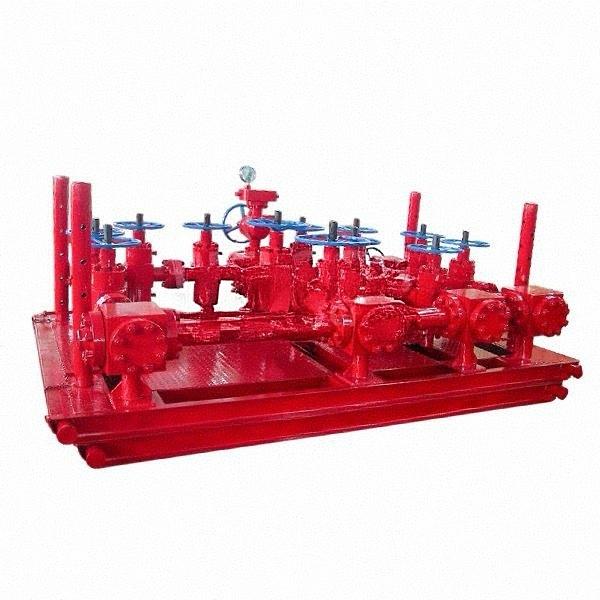

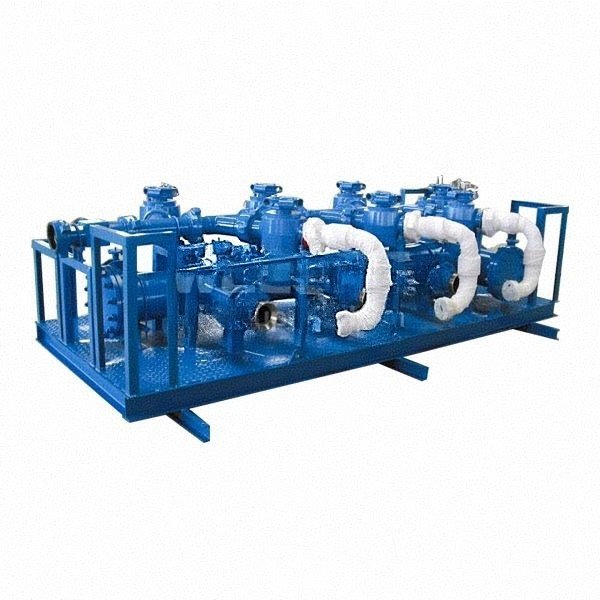

Choke manifold is necessary device to control the well kick successfully and execute the pressure control technology on oil/gas well in the course of drilling, as it is, the device is adopted to execute new drilling-well's technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve's opening, so balanced drilling can work under minimum pressure-difference.

The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components.


Specifications:


Model JG-35 JG-35 JG-70 JG-105
Main path and Side path in(mm) 3 1/8×2 1/16(80×52) 4 1/16×2 9/16(103×65) 4 1/16×3 1/16(103×78)
Working Pressure psi (mpa) 3000(21) 3000(21)
5000(35) 10000(70)
Working Temperature ºC (°F) P.U -29~121 (-20~250)
Working medium Mud Gas(sulfur-hydrogen)
Material grade DD-FF
