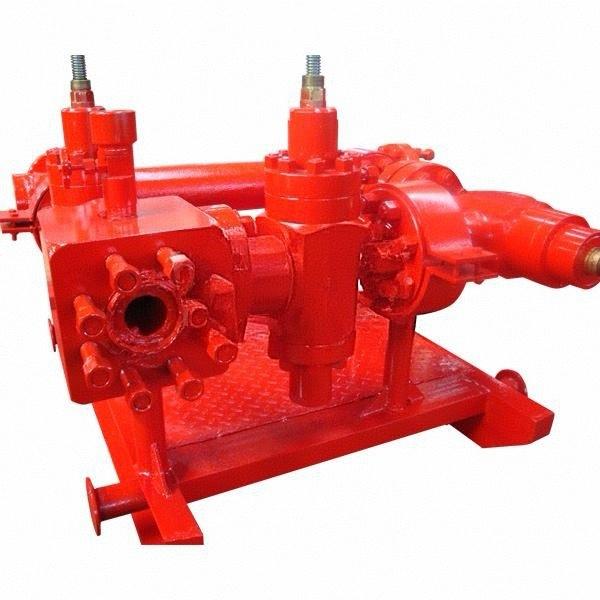

Kill Manifold Working pressure: 2000PSI~20000PSI Nominal Bore: 2.1/16~4.1/16
Kill Manifold Working pressure: 2000PSI~20000PSI Nominal Bore: 2.1/16~4.1/16
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Working pressure :
2000PSI~20000PSI
Nominal Bore :
2.1/16"~4.1/16"
Working Medium :
oil, natural gas, mud
Working Temperature :
-46°C~121°C (Class LU)
Description

Kill Manifold Working pressure: 2000PSI~20000PSI Nominal Bore: 2.1/16"~4.1/16"


Descriptions of Kill Manifold Working pressure: 2000PSI~20000PSI Nominal Bore: 2.1/16"~4.1/16":


Kill manifold consists of check valves, gate valves, line pipes, pressure gauges. In case of increase in well head pressure, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick and blowout can be prevented. In this case, by using blow down lines connected to the kill manifold, the increasing well head pressure also can be released directly for bottom hole pressure release. or water and extinguishing agent can be injected into the well by means of kill manifold.


Specifications:


Model YG-35 YG-70 YG-105
Main path and Side path in(mm) 3 1/8×2 1/16(80×52) 4 1/16×2 9/16(103×65) 4 1/16×3 1/16(103×78)
Working Pressure psi(mpa) 5000(35) 10000(70) 15000(105)
Working Temperature°C(°F) P.U -29~121 (-20~250)
Working medium Mud Gas(sulfur-hydrogen)
Material grade DD-FF
