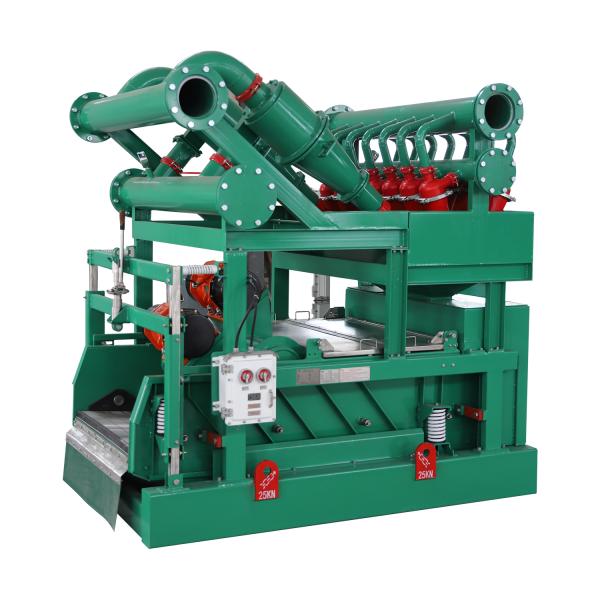

Sand and Mud Removal Machine 200-240 m³/h Throughput
Sand and Mud Removal Machine 200-240 m³/h Throughput
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Maximum throughput :
200-240 m³/h
Cyclone nominal diameter :
250-300 mm
Number of cyclones :
2
Fixed work stress :
200-400 kPa
Description

Sand and mud removal machine Maximum throughput 200 -240 m³/h


Descriptions of Sand and mud removal machine Maximum throughput 200 -240 m³/h:


The drilling fluid sand and mud removal integrated machine is mainly composed of a sand remover, a mud remover and a vibrating screen. It is one of the main equipment for solid phase control of drilling fluids. Its function is to remove harmful solid phases and improve drilling fluid performance. The separation particle size of the desander is 44-74 μm, and the separation particle size of the desander is 20-44 μm. The maximum mesh size of the vibrating screen mesh is 360 mesh. The hydrocyclone of the sand and mud removal machine is made of wear-resistant materials, with reliable performance, good separation effect and long service life.


Specifications:


Model ZQJ250X2/100X14 ZQJ300X2/125X14
project
Desander Maximum throughput m³/h 200 240
Cyclone nominal diameter mm 250 300
Number of cyclones 2 2
Fixed work stress kPa 200-400 200-400
Desilter Maximum throughput m³/h 200 240
Cyclone nominal diameter mm 100 125
Number of cyclones 14 14
Fixed work stress kPa 200-400 200-400
Vibrating screen Motor Power kW 2.2+2.2 2.2+2.2
Violent force kN 38+38 38+38
Amplitude mm 7 7
Total screen area ㎡ 2.7 2.7
Screen quantity 4 4
Maximum mesh size of screen 360 360
Total mass kg 3800 4200
