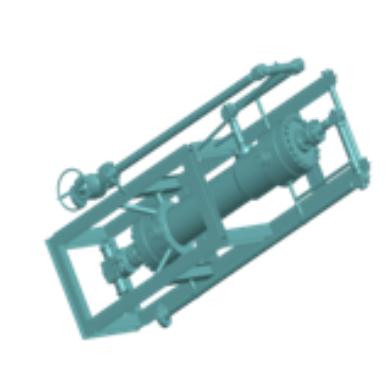

Cyclone Desander for Drilling 70Mpa/105Mpa High Pressure
Cyclone Desander for Drilling 70Mpa/105Mpa High Pressure
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Maximum working pressure :
70Mpa/105Mpa
Maximum working temperature of fluid :
120℃
Ambient temperature :
-40℃~70℃
Maximum inner diameter of desander port :
φ210mm
Description

Filter/Cyclone desander Maximum working pressure 70Mpa/105Mpa


Descriptions of Filter/Cyclone desander Maximum working pressure 70Mpa/105Mpa:


The equipment can not only achieve the same effect as the imported device, but also has the effect of sulfur and acid prevention. It is suitable for the sand removal operation of high pressure, high production and acid bearing oil and gas wells. It can effectively remove the harmful solid debris such as fracturing sand, formation sand, ejection cartridge case, clay, heavy oil and other objects that affect surface transportation, testing and measurement.


Specifaications:


Maximum working pressure 70Mpa/105Mpa
Maximum working temperature of fluid 120℃
Ambient temperature -40℃~70℃
Minimum storage temperature of the device -50℃
Working medium oil, gas and water
Maximum inner diameter of desander port φ210mm
Inlet and outlet size 2-9/16″
Volume of desander ≥46L
Natural gas processing capacity ≥150million m3/d
Sulfur protection grade 10%
