Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI
Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Max. Torque :
18440 Ft.lbf
Speed (High Gear) :
65 rpm
Speed (Low Gear) :
10.5 rpm
Pressure Rating :
1740 PSI
Description

Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI


Descriptions of Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI:

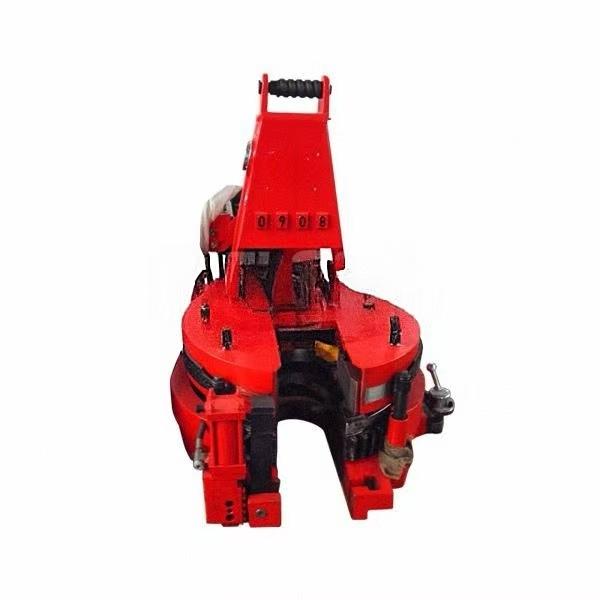

ZQ drill pipe power tong is an ideal well head tool for oil drilling apparatus, widely applied in making up and breaking out in drilling well and repairing well on offshore and land, open head design of the ZQ series allows to take the long is a combination of spinning tong and torque tong instead of cathead manual tong and spinning rope for makin up and breaking out. They are strictly designed and manufactured in according with API 7K.


Specifications:


Model ZQ127-25 ZQ162-50 ZQ203-100
Size Range mm 65-127 85-162 127-203
Max. Torque kN.m 25 50 100
Ft.lbf 18440 36880 73750
Speed (High Gear) rpm 65 60 40
Speed (Low Gear) rpm 10.5 4.1 2.7
Air Pressure MPa 0.5–0.9
PSI 72-144
Pressure Rating MPa 12 14 16.6
PSI 1740 2320 2400
Flow Rating L/min 120 120 114
gpm 31.7 31.7 30
Shifting Distance mm 1000 1000 1500
in 39.4 39.4 59
Shape Size mm 1110×735×815 1570×800×1190 1760×1000×1360
Weight kg 620 1500 2400


Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI
