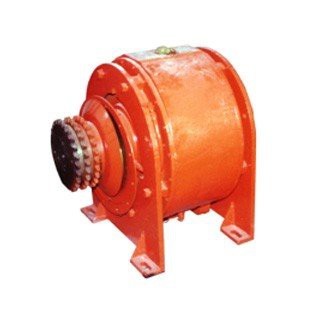

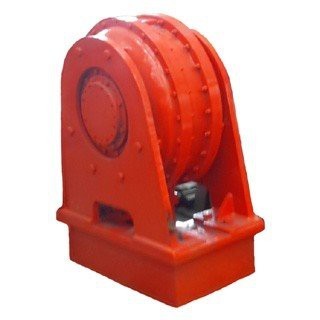

Hydromatic Brake 1600 HP 25 psi 2300 r/min for Drilling Rig Drawworks
Hydromatic Brake 1600 HP 25 psi 2300 r/min for Drilling Rig Drawworks
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Max.Pressure, :
25 (psi)
Max.Speed :
2300 r/min
Max.Brake Power :
1600 HP
Diameter of Rotor :
20"
Description

Hydromatic Brake Max.Pressure 25 (psi) Max.Speed 2300 r/min


Descriptions of Hydromatic Brake Max.Pressure 25 (psi) Max.Speed 2300 r/min:


The hydromatic water brake is one kind of hydraulic device. It can absorb the power by converting the kinetic energy into the internal friction heat of the working fluid, the working fluid is usually water (when winter it should be antifreeze), and then the heat energy converted from the absorbed mechanical energy during the braking process should be remove and spread away through the circulation of the working fluid.

In the field of oil drilling, water brakes are mainly used as auxiliary deceleration brakes, which can reduce the speed of the drawworks, that is, the speed of the main drum or the speed of the hook block, to keep the drilling tool evenly devolved at a safe speed.


Specifications:


Model 122 22SR 202 502
Max.Pressure,Mpa(psi) 0.172(25) 0.25(36) 0.25(36) 0.25(36)
Max.Speed.r/min 2,300 1,550 1,550 1,500
Max.Brake Power,kW(HP) 1,192(1,600) 1,838(2,500) 2,205(3,000) 1,715(2,300)
Diameter of Rotor 12" 22" 20" 20"
Applicable Rig XJ350 XJ450/ZJ20 XJ650/ZJ20 XJ650/ZJ20


Hydromatic Brake 1600 HP 25 psi 2300 r/min for Drilling Rig Drawworks Hydromatic Brake 1600 HP 25 psi 2300 r/min for Drilling Rig Drawworks
