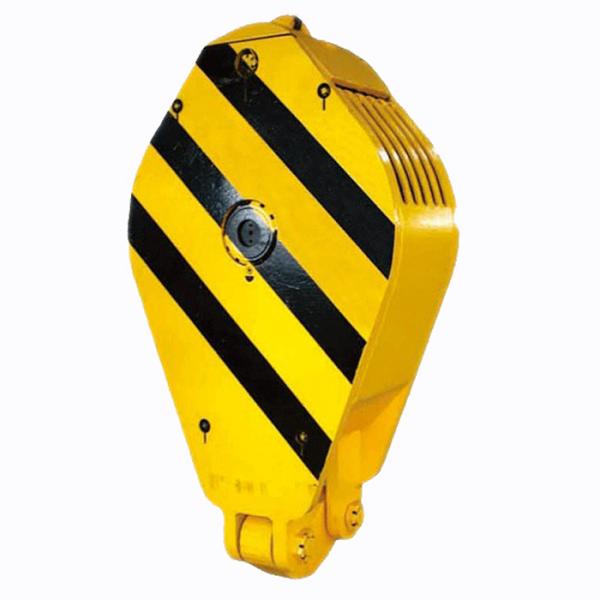

High Load Capacity Traveling Block for Oil Drilling Rig 36-60 in Diameter Sheaves Max. Hook Load 1700-6750 KN
High Load Capacity Traveling Block for Oil Drilling Rig 36-60 in Diameter Sheaves Max. Hook Load 1700-6750 KN
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Max. Hook Load :
1700-6750 KN
Diameter of Sheaves :
36-60 in
Diameter of  Wire Line :
29-45 mm
Qty. of Sheaves :
5-7 pcs
Description

Traveling Block for Oil Drilling Rig Max. Hook Load 1700-6750 KN Diameter of Sheaves 36-60 in


Descriptions of Traveling Block for Oil Drilling Rig Max. Hook Load 1700-6750 KN Diameter of Sheaves 36-60 in:


In accordance with API Spec.8C and marked with API MONOGRAM;

The side plate assembly is made of thick steel plate;

The grooves are quenched to extend the service life;

Equipped with the rope covers;

The bearings and the sheaves are interchangeable with those of matching Crown Block;


Specifications:


MODEL PARAMETERS YC170 YC225 YC315 YC450 YC585 YC675
Max. Hook Load KN(USton) 1700(190) 2250(250) 3150(350) 4500(500) 5850(650) 6750(750)
Qty. of Sheaves pcs 5 5 6 6 7 7
Diameter of Sheaves mm(in) 915(36) 1120(44) 1270(50) 1524(60) 1524(60) 1524(60)
Diameter of Wire Line mm(in) 29(1-1/8) 35(1-3/8) 35(1-3/8) 38(1-1/2) 38(1-1/2) 42(1-5/8)/
42(1-5/8) 45(1-3/4_
Overall Dimension mm(in) 2094X960X640 (83X38X25) 2294X1190X630 (90X47X25) 2680X1350X974 (105.5X53.1X38.3) 3075X1600X800 (121X63X31.5) 3400x1600x1148
(134x63x45)		 3400x1600x1148
(134x63x45)
Weight KG 2800 3713 6842 8135 12200 12500
