BOP Electronic Remote Control System Flameproof Motor Power 18.5 X 3（kW）
BOP Electronic Remote Control System Flameproof Motor Power 18.5 X 3（kW）
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Flameproof motor power :
18.5 kW
Oil volume :
960 L
Volume :
80*24 L
Control Qty :
14
Description

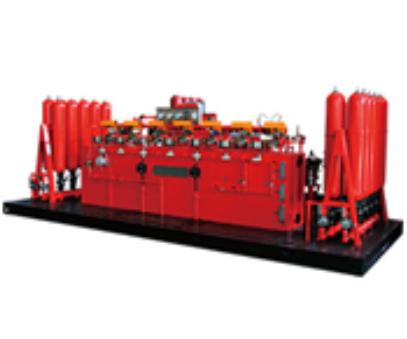

BOP electronic remote control system Flameproof motor power 18.5 x 3(kW)


Descriptions of BOP electronic remote control system Flameproof motor power 18.5 x 3(kW):


Wellhead device and control system, including hydraulic blowout preventer and control system, four-way, casing head flange sub Etc.
Well control manifold, including throttle manifold, kill manifold, blowout manifold and blowout line, etc.
Blowout prevention tools in drill string, including float valve, etc. Well control instrument, including comprehensive logging instrument, liquid level monitor, overflow alarm instrument and various pressure gauges.
Drilling fluid purification and perfusion device.Special equipment and tools.
lWith driller console or auxiliary driller console (push-button or touch)
lThe whole system adopts PLC bus control technology, and the host and the main and auxiliary drilling floor are connected with signal cables, and the distance can reach more than 200 meters
lThis series of products has obtained the overall CE certification


Specifications:


Model Control Qty Accumulator Flameproof motor power(kW) System capacity Rated Max
Volume(L) Oil volume(L) Way triplex pump(mL/r) pneumatic pump(mL/r) Pressure(Mpa) Pressure(Mpa)
FKQ1920-7 7 80×24 960 Side/rear 18.5×3 80×3 120×6 21 31.5
FKQ1600-14 14 80×20 800 Side/rear 18.5×2 80×2 120×4 21 31.5
FKQ1600-12 12 80×20 800 Side/rear 18.5×2 80×2 120×4 21 31.5
FKQ1600-10 10 80×20 800 Side/rear 18.5×2 80×2 120×4 21 31.5
FKQ1600-10 10 80×20 800 Side/rear 18.5×4 80×4 120×12 21 31.5
FKQ1440-14 14 60×24 720 Side/rear 18.5×2 80×2 120×4 21 31.5
FKQ1280-10 10 80×16 640 Side/rear 18.5×2 80×2 120×3 21 31.5
FKQ1280-9 9 80×16 640 Side/rear 18.5×2 80×2 120×3 21 31.5
FKQ1280-8 8 80×16 640 Side/rear 18.5×2 80×2 120×2 21 31.5
FKQ1280-7 7 80×16 640 Side/rear 18.5×2 80×2 120×2 21 31.5
FKQ1200-9 9 60×20 600 Side/rear 18.5×2 80×2 120×3 21 31.5
FKQ1200-8 8 60×20 600 Side/rear 18.5×2 80×2 120×2 21 31.5
FKQ960-8 8 60×16 480 Side/rear 18.5×2 80×2 120×2 21 31.5
FKQ960-7 7 60×16 480 Side/rear 18.5×2 80×2 120×2 21 31.5
FKQ800-8 8 40×20 400 Side/rear 18.5 80 120 21 31.5
FKQ 800-7 7 40×20 400 Side/rear 18.5 80 120 21 31.5
FKQ 800-6 6 40×20 400 Side/rear 18.5 80 120 21 31.5
FKQ720-7 7 60×12 360 Side/rear 18.5 80 120 21 31.5
FKQ 720-6 6 60×12 360 Side/rear 18.5 80 120 21 31.5
FKQ 640-6 6 40×16 320 Side/rear 18.5 80 120 21 31.5
FKQ 640-5 5 40×16 320 Side/rear 18.5 80 120 21 31.5
FKQ 480-5 5 40×12 240 Side/rear 18.5 80 120 21 31.5
FKQ 480-4 4 40×12 240 Side/rear 18.5 80 120 21 31.5
FKQ320-5 5 40×8 160 Side/rear 15 60 120 21 31.5
FKQ320-4 4 40×8 160 Side/rear 15 60 120 21 31.5
FKQ320-3 3 40×8 160 Side/rear 15 60 120 21 31.5
FKQ240-3 3 40×6 120 Side/rear 15 60 120 21 31.5
FKQ200-4 4 25×8 100 Side/rear 15 60 120 21 31.5
FKQ160-3 3 40×4 80 Side/rear 15 60 120 21 31.5
FKQ150-2 2 50×3 75 Side/rear 15 60 120 21 31.5
FK125-3 3 25×5 62.5 Side/rear 7.5/11 28 × 21 21
FK80-3 3 40×2 40 Side/rear 7.5 28 × 21 21
FK80-2 2 40×2 40 Side/rear 7.5 28 × 21 21
FK75-2 2 25×3 62.5 Side/rear 7.5 28 × 21 21
FK63-2 2 63×1 31.5 Side/rear 7.5 28 × 21 21
FK50-2 2 25×2 25 Side/rear 7.5 28 × 21 21
FK40-2 2 40×1 20 Side/rear 7.5 28 × 21 21
FK25-2 2 25×2 12.5 Side/rear 7.5 28 × 21 21
FK25-1 1 25×2 12.5 Side/rear 7.5 28 × 21 21
