Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Internal dia. :
840 mm
Inlet pressure :
0.04-0.15 MPa
Capacity :
500-900 m³/h
Cut size :
74-350 μm
Description

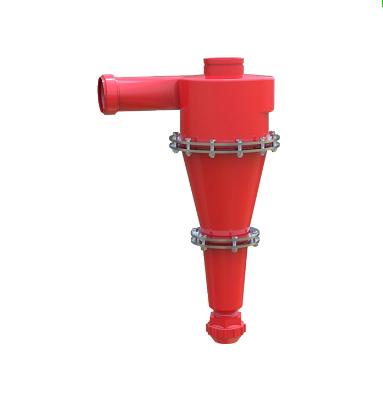

Cyclone Internal dia. 840 (mm) Inlet pressure 0.04-0.15 (MPa) Capacity 500-900 (m³/h)


Descriptions of Cyclone Internal dia. 840 (mm) Inlet pressure 0.04-0.15 (MPa) Capacity 500-900 (m³/h):


Cyclone is to separate the two-phase or multi-phase mixture of liquid-liquid, liquid-solid, liquid-gas and so on with a certain density difference under the action of centrifugal force. The mixed liquid is tangentially flowed into the cyclone with a certain pressure, and a high-speed rotating flow field is generated in the cylindrical cavity.


Specifications:


Model Internal dia.(mm) Inlet pressure(MPa) Capacity(m³/h) Cut size(μm)
FX840 840 0.04-0.15 500-900 74-350
FX710 710 0.04-0.15 400-550 74-250
FX 660 660 0.04-0.15 160-450 74-220
FX610 610 0.04-0.15 200-300 74-200
FX500 500 0.04-0.2 140-240 74-200
FX400 400 0.04-0.2 100-170 74-150
FX350 350 0.04-0.2V 70-160 50-150
FX300 300 0.04-0.2 45-90 50-150
FX250 250 0.04-0.3 40-80 40-100
FX200 200 0.04-0.3 25-40 40-100
FX150 150 0.04-0.3 14-35 20-74
FX125 125 0.04-0.3 8-20 20-50
FX100 100 0.04-0.3 8-20 20-50
FX75 75 0.1-0.4 4-10 10-40
FX50 50 0.1-0.4 2-5 7-40
FX25 25 0.1-0.6 0.3-1 5-20
FX10 10 0.1-0.6 0.05-0.1 1-5
