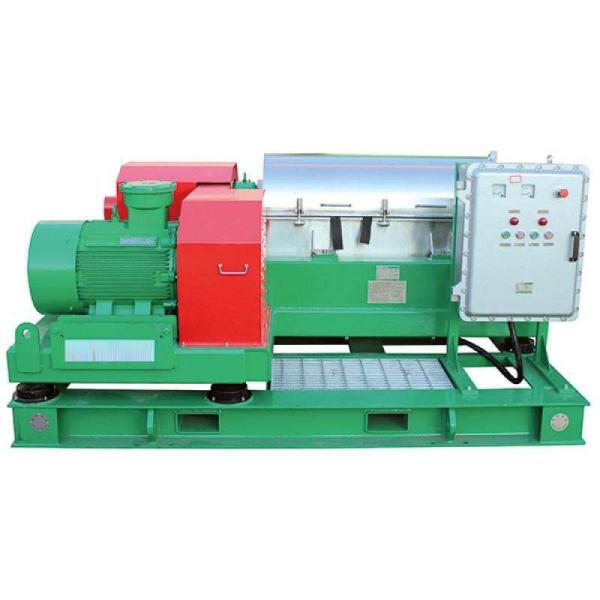

Centrifuge for Drilling Rig Mud Pump 200-484 GPM 3900 RPM
Centrifuge for Drilling Rig Mud Pump 200-484 GPM 3900 RPM
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Bowl Diameter :
14-18 in
Max. Capacity :
200-484 GPM
Max Bowl Speed :
3900RPM
Effective Capacity :
132GPM
Description

Centrifuge Max. Capacity 200-484 GPM Max Bowl Speed 3900 RPM


Descriptions of Centrifuge Max. Capacity 200-484 GPM Max Bowl Speed 3900 RPM:


Centrifuge is the premium centrifuge with the best material configuration. It is the best option for middle term and long term investment because of its reliability and working life. This series of decanter centrifuge are popular for the drilling waste management, oil sludge treatment, tank cleaning waste treatment, as well as solids control, barite recovery, Low gravity and high gravity solids separation, dewatering etc.


Specifications:


Model LW363C LW363C-V LW453C-V LW553C-V
Bowl Diameter 360mm(14inch) 360mm(14inch) 450mm(18inch) 550mm(22inch)
Bowl Length 1271mm(50inch) 1271mm(50inch) 1540mm(61inch) 1800mm(71inch)
Max. Capacity 200GPM(45m3/h) 200GPM(45m3/h) 352GPM(80m3/h) 484GPM(110M3/h)
Effective Capacity 132GPM(30m3/h) 132GPM(30m3/h) 264GPM(60m3/h) 400GPM(90m3/h)
Max Bowl Speed 3900RPM 3900RPM 3200RPM 3000PRM
Typical Bowl Speed 3200RPM 0~3200RPM 0~2800RPM 0~2500RPM
Max G-Force 3063 3063 2578 2719
Typical G-Force 2062 0~2062 0~1973 0~1888
Separation point 2~5µm 2~5µm 2~5µm 2~5µm
Differential Speed 40 0~40 0~35 0~45
Gearbox Torch 3500N.M 3500N.M 7500N.M 12000N.M
Gear Box Ration 57:1 57:1 57:1 57:1
Main Drive Motor 37KW(50HP) 37KW(50HP) 55KW(75HP) 90KW(120HP)
Back Drive Motor 11KW(15HP) 11KW(15HP) 22KW(30HP) 37KW(50HP)
Recommend Pump 7.5KW(10HP) 7.5KW(10HP) 15KW(20HP) 22KW(30HP)
EX Standard ExdIIBt4 / IEC EX/ ATEX
Electric Carbinet Exd Standard PLC+Positive Pressurized
Weight 3500KG 3400KG 4580KG 5840KG
Dimension 3305x1638x1277mm 3305x1638x1277mm 3824x1798x1317 4293x1978x1381
