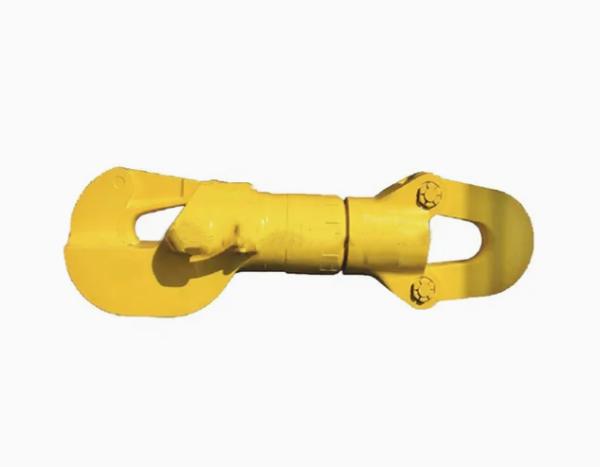

Drilling Hook 900 kN Load Capacity 6-1/16 in Opening
Drilling Hook 900 kN Load Capacity 6-1/16 in Opening
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Max. Hook Load :
900 kN
Main hook opening size :
6-1/16 in
Assistant hook dia. :
3-1/8 in
Spring stroke :
7 in
Description

Hook Max. Hook Load 1350 kN Main hook opening size 7 in


Descriptions of Hook Max. Hook Load 1350 kN Main hook opening size 7 in:


The hook is the important lifting equipment for drilling, the main functions of which are suspending and lifting the drill string, replacing the drill bit, dropping the casing, discharging the production of the slightly jammed drill, etc. It mainly consists of the Hook Rod, Sheave system, Body, etc.


Specifications:


Model DG90 DG135 DG170 DG225 DG315 DG450 DG585
Max. Hook Load kN 900 1350 1700 2250 3150 4500 5850
Ton 100 150 200 250 350 500 650
Main hook opening size Mm 155 165 180 190 220 328
in 6-1/16 6-1/2 7 7-1/2 8-5/8 9-3/8
Assistant hook dia. Mm 80 90 100 120
in 3-1/8 3-1/2 4 4-3/4
Spring stroke mm 180 200
in 7 8
