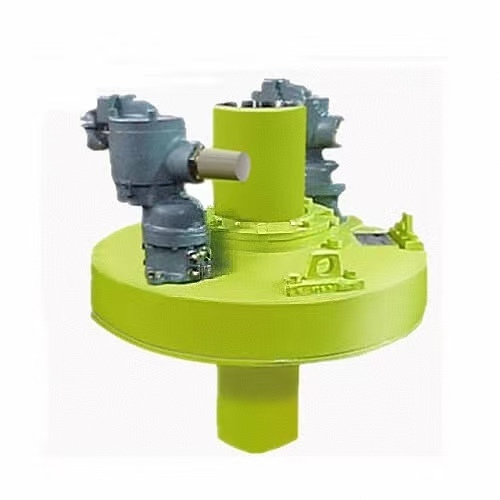

Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm
Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm
Specifications
Stall torque :
855~1215 ft.lbf
Idel speed :
76~110 rpm
Stem connection :
6-5/8 REG LH
Max. static Load :
2250KN
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Description

Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm


Descriptions of Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm:


Kelly spinner is a special equipment to connect single pipe automatically by companying with mouse hole clamping device.

It unitizes air or hydraulic motor to drive kelly to rotate and features safe, saving time and labor.

It is designed and manufactured according to API Spec 8A Specification for Drilling and Production Hoisting Equipment.


Specifications:


Model FXD QF2 Q3 A6C 6600 6800
Drive mode Pneumatic Hydraulic Driven
Max. static Load 2250KN 2250KN
Pressure Mpa 0.5~0.9 13.8
psi 72~130 2000
Stall torque N.m 1200 1600 1650 1500 1500 1650
ft.lbf 885 1180 1210 1100 1100 1215
Idel speed rpm 76 72 72 170 130 110
Rotation Direction Single Double Double Double Double Double
Air consumption/Flow m3/min 9.3 20 20 9.3 15 91LPM
ft3/min 328 706 706 328 529 24GPM
Stem connection 6-5/8 REG LH
Size mm 845×740×725 558×558×935 860×725×980 768×768×1125 740×710×978 740×710×978
in 33×29×28 22×22×37 34×28×39 30×30×48 29×28×38.5 29×28×38.5
Weight kg 383 450 520 540 500 504
lb 844 992 1146 1190 1100 1110
