SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting
SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting
Specifications
Brand Name :
SERVA
Model Number :
QPE 1200
Certification :
API
Place of Origin :
China
Payment Terms :
T/T,L/C
Packaging Details :
Wooden box
Description

SERVA QPE 1200 Quintuplex Plunger Pumps

The QPE 1200 is a reciprocating, horizontal single-acting, quintuplex plunger pump for continuous well service. The pump is especially good for long-time coiled tubing operations.

The QPE 1200 pump passed the test for 100 hours of continuous operation at 110% of maximum pressure.

Specifications
Rated Maximum Brake Horsepower 1,000 bhp
Maximum Rod Load 100,000 lbs
Stroke Length 6”
Gear Ratio 4.6:1
Plunger 2 3/4” to 4 1/2”
Pump Weight 7,000 lbs

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

Major Features:

Wearing parts can be interchanged with similar mainstream products at home and abroad

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

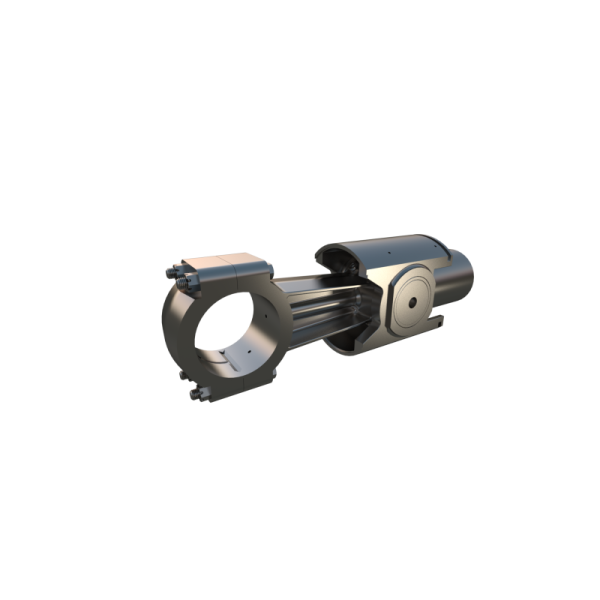

The improved design of crosshead increases the contact area of the joint bearing by 38% and greatly improves the service life of the crosshead

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

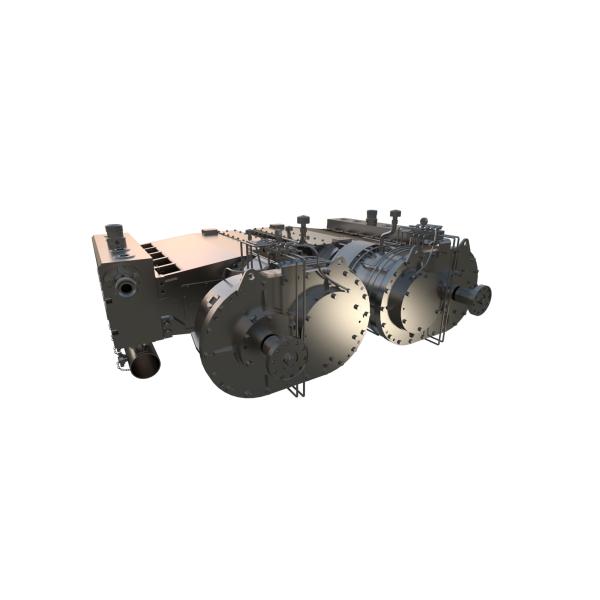

Power end of symmetrical design

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

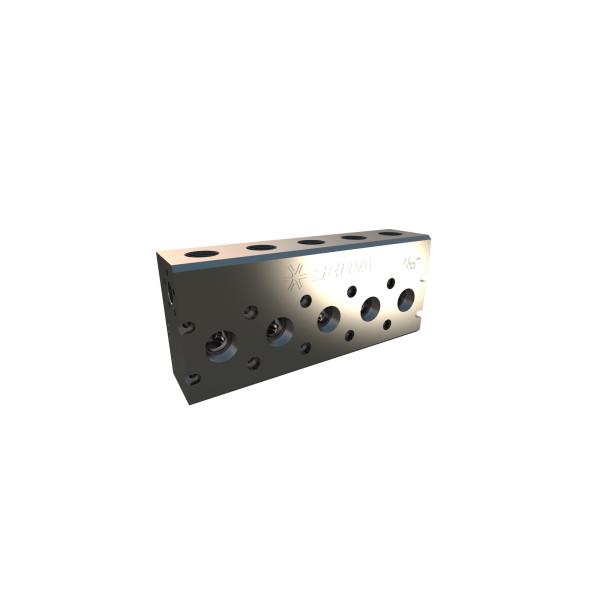

Adopting FACET™ technology and UltraLast™ stainless steel fluid cylinder to improve service life of fluid cylinder by 400%

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

Suction and discharge connections can be custom designed as required by customers

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

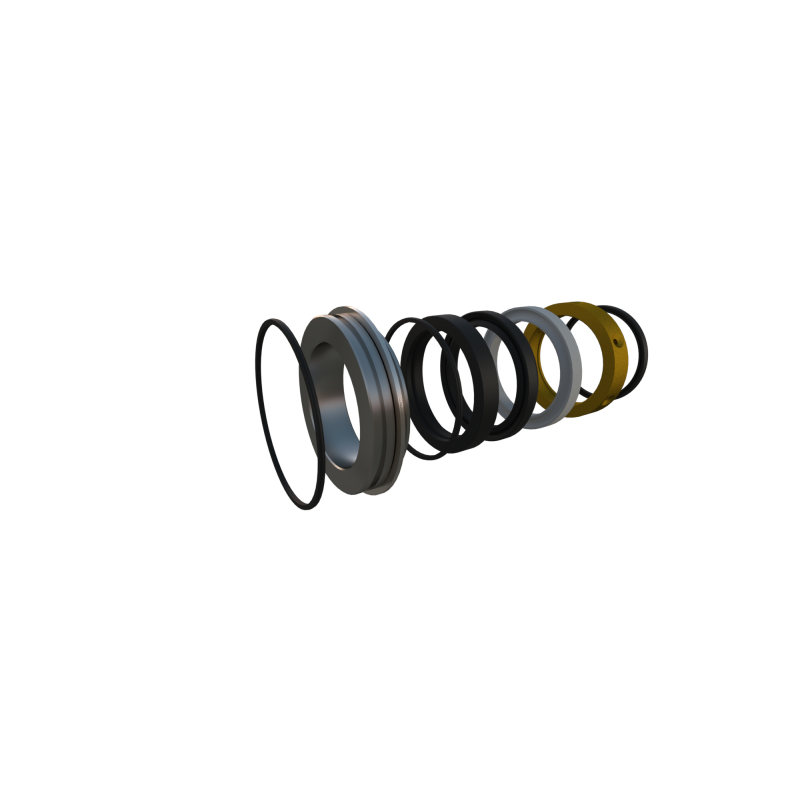

Imported packing and homemade top-performance packing are available, which can be interchanged with packing of the same specification in the market

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

The strength of integrally forged connecting rod is 50% higher than that of conventional connecting rod

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

Crosshead and push rod are designed to prevent mud from entering into the power end

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

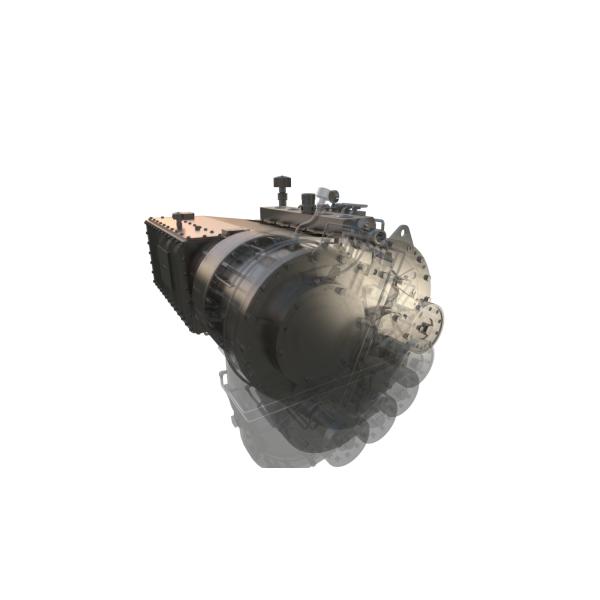

Gear reduction box capable of rotating in 6 different angles is available

SERVA QPE 1200 Quintuplex Plunger Pump Horizontal Single Acting

"24 hr/7 days a week" was introduced for the first time and test for 100 hours of continuous operation is passed
