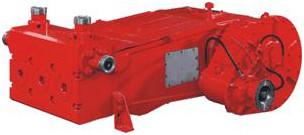

Horizontal 100000 Lbs 447KW Triplex Plunger Pump
Horizontal 100000 Lbs 447KW Triplex Plunger Pump
Specifications
Brand Name :
JY
Model Number :
JY-3ZB-600(450)
Certification :
ISO9001
Place of Origin :
China
MOQ :
1sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1set/6 months
Delivery Time :
75 days
Packaging Details :
Skid
Type :
JY-3ZB-600(450)
Maximum input power :
447KW(600hp)
Maximum load of connecting rod :
445000N(100000 lbs)
Stroke :
152.4mm(6")
Maximum stroke times :
450rpm
Transmission ratio :
4.61: 1
Overall dimensions :
1626×1366×607 mm
Length*width*height :
(64"×53.78"×32.28")
Weight :
2492kg(5489 lb)
Description

Frac Pump Truck/ JY-3ZB-600(450) Type Triplex Plunger Pump Maximum Input Power 447KW

JY-3ZB-600(450)

1. Product description

JY-3ZB-600 type horizontal single-action triplex plunger pump is composed of power end, reduction gearbox and fluid end. Fluid end is forged by high-quality alloy steel. This pump has features such as high power, high pressure, small volume, light weight, etc.

2. Main technical and performance parameters

Main technical parameters

Pump model: JY-3ZB-600
Maximum input power: 447kW(600hp)
Maximum load of connecting rod: 445000N(100000 lbs)
Stroke: 152.4mm(6")
Maximum stroke times: 450rpm
Transmission ratio of reducer box gear: 4.61: 1
Overall dimensions: 1626×1366×607mm
Length*width*height (64"×53.78"×32.28")
Weight: 2492kg(5489 lb)

Main performance parameters

Stroke times of pump (rpm) 50 120 200 300 450
Diameter of plunger Displacement GPM Pressure psi Displacement GPM Pressure psi Displacement GPM Pressure psi Displacement GPM Pressure psi Displacement GPM Pressure psi
Inch (mm) (L/min) (MPa) (L/min) (MPa) (L/min) (MPa) (L/min) (MPa) (L/min) (MPa)
3"(76.2) 28(104) 14141(97.5) 66(250) 14098(97.2) 110(417) 8456(58.3) 165(625) 5642(38.9) 248(938) 3756(25.9)
3-1/2"(88.9) 37(142) 10399(71.7) 90(341) 14098(97.2) 150(568) 6208(42.8) 225(851) 4148(28.6) 337(1277) 2756(19)
4"(101.6) 49(185) 7962(54.9) 118(445) 7919(54.6) 196(741) 4757(32.8) 294(1112) 3176(21.9) 441(1668) 2118(14.6)
4-1/2"(114.3) 62(235) 6295(43.4) 149(563) 6266(43.2) 248(938) 3756(25.9) 372(1407) 2509(17.3) 558(2111) 1668(11.5)
