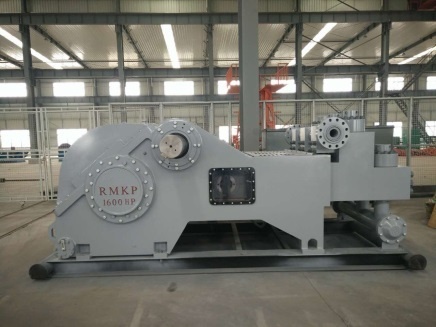

API 7K Standard Oilfield Drilling Rig Mud Pump RMKP PA-11-7500
API 7K Standard Oilfield Drilling Rig Mud Pump RMKP PA-11-7500
Specifications
Brand Name :
ATO
Model Number :
PA-11-7500
Certification :
API
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 DAYS
Packaging Details :
WOODEN BOX
Description

RMKP API 7K PA-11-7500 Mud Pump

Input power rating (KW) 1193 (16000HP)
Rated pump speed (RPM) 115
Stroke Length (mm) 1279(11”)
Gear ratio 4.38
Rated speed of transmission shaft (RPM) 504
Max. working pressure (Kg/sq.cm) 352 (5000PSI)
Valve size (API) 7#
Max. liner diameter (mm) Φ7”
Max. displacement (GPM) 632
Max. liner pressure (Kg/sq.cm) 275 (3905PSI)
Diameter of suction pipe (mm) 254 (10”)
Diameter of discharge pipe (mm) 100 (4”)
Overall dimensions 4380*2700*2700 mm
Weight (exclude five way joint and
pulsation damper) 17600kg
Weight (lbs ) (21000kg )

API 7K Standard Oilfield Drilling Rig Mud Pump RMKP PA-11-7500
