200 Meter Trailer Type Water Well Drilling Rig Manufacturer
200 Meter Trailer Type Water Well Drilling Rig Manufacturer
200 Meter Trailer Type Water Well Drilling Rig Manufacturer
200 Meter Trailer Type Water Well Drilling Rig Manufacturer
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
Drilling depth :
200m
Drilling diameter :
Φ105-Φ350mm
One push length :
3M
Drilling pipe diameter :
Φ76mm, Φ89mm
Iift force :
18T
Fast forward speed :
20m/min
Dimension :
4400x2150x2200mm
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Description
200 Meter Trailer Type Water Well Drilling Rig Manufacturer
Product Specifications
Attribute Value
Product Name 200 type tire type water well drilling rig
Drilling depth 200m
Drilling diameter Φ105-Φ350mm
One push length 3M
Drilling pipe diameter Φ76mm, Φ89mm
Lift force 18T
Fast forward speed 20m/min
Dimension 4400x2150x2200mm
Weight 5.5T
Diesel engine power Xidong 65 kW
Product Features
Power Advantages
  • Clean power source using compressed air, eliminating fuel storage and transportation needs
  • No complex power wiring required and zero exhaust emissions
  • Ideal for environmentally sensitive areas like nature reserves and urban residential zones
  • Quick start/stop capability with adjustable working status for improved efficiency
Drilling Performance
  • High impact energy for breaking various rocks and soil layers
  • Adaptable to diverse geological conditions from soft soil to hard rock
  • Adjustable impact frequency and torque for optimal drilling speed
  • Significant time and cost savings for large-scale water well projects
Technical Parameters
Parameter Unit Value
Model Shitan ST 200
Max drilling depth M 200
Drilling diameter mm 105-350
Air pressure Mpa 1.2-3.5
Rod length m 3
Rod diameter mm 76-89
Main shaft pressure T 4
Lifting force T 18
Power head stroke M 40
Max rotary torque Nm 5900
Max rotary speed r/min 30-120
Secondary winch lifting force T 1
Jacks stroke m 1.35
Moving speed km/h 2.5
Uphill angle Slope 21°
Weight of the rig T 5.5
The engine Xidong 65kw
Overall dimensions 4400*2150*2200mm
Working condition Loose layer and bedrock
Drilling method Hydraulic rotary, down-the-hole impactor
Working Principle
The pneumatic water well drilling rig uses compressed air as a power source to drive the drilling operation. The process involves four key components:
  1. Compressed air generation: High-pressure air is created by an air compressor (electric or diesel-powered) and transported through pipelines to the drilling components.
  2. Impact drilling: Compressed air drives the impactor, creating powerful blows that break rock formations while airflow carries debris to the surface.
  3. Rotary drilling: Pneumatic motors rotate the drill bit for more effective rock fragmentation and debris removal.
  4. Slag discharge and wall protection: High-pressure airflow maintains borehole cleanliness while protective media can be injected to stabilize unstable formations.

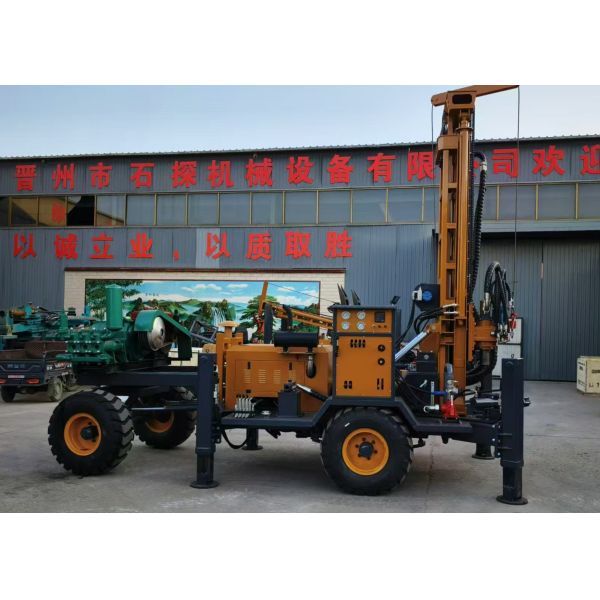

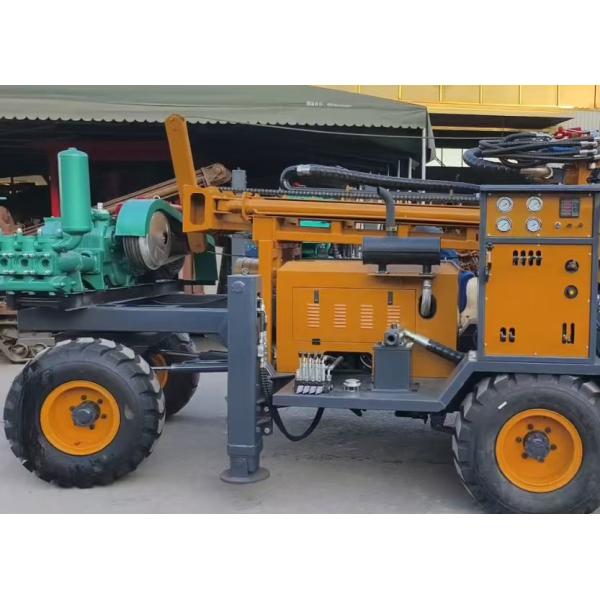

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
