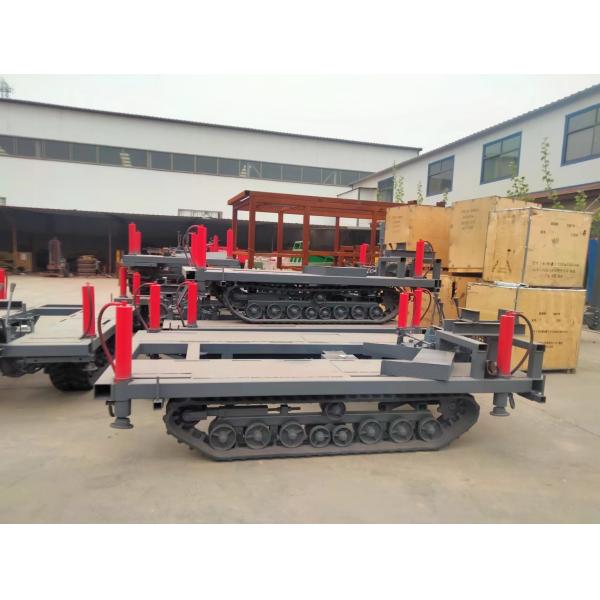

Electric Start Drilling Rig Track Chassis Supports Customization For Transmission Drive
Electric Start Drilling Rig Track Chassis Supports Customization For Transmission Drive
Electric Start Drilling Rig Track Chassis Supports Customization For Transmission Drive
Electric Start Drilling Rig Track Chassis Supports Customization For Transmission Drive
Specifications
Brand Name :
shitan
Model Number :
ST
Certification :
ISO
Place of Origin :
Jinzhou,Hebei ,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
30% TT down payment ,70% TT before shipment
Supply Ability :
1000 sets monthly
Delivery Time :
5-7 days after payment
Packaging Details :
Wooden Box,Bulk Packing
Product Name :
Track Chassis
Drive mode :
Transmission Drive
Start Type :
Electric Start
Track Size :
350*90*54
Load Capacity :
4 T
Platform Size :
3.3*1.85*0.5
Description
Electric Start Drilling Rig Track Chassis Supports Customization For Transmission Drive
Product Specifications
Attribute Value
Product Name Track Chassis
Drive Mode Transmission Drive
Start Type Electric Start
Track Size 350*90*54
Load Capacity 4 T
Platform Size 3.3*1.85*0.5
Product Overview

Our factory-direct rubber track chassis is a versatile walking mechanism widely used in engineering machinery, agricultural equipment, and special vehicles. The power system efficiently transmits power to drive wheels, which rotate to propel the rubber tracks. Ground friction enables forward or backward movement while guide wheels ensure precise directional control.

Technical Parameters
Parameter Specification
Product Capacity 3.5 MT - 4 MT
Type Dumping Truck, Track Dump Carrier
Track Specification 350*90*54 (350mm width)
Gear Type Drawbar
Engine Diesel Engine
Structural Components
  • Rubber Track: Constructed with durable rubber and reinforced fibers for flexibility and wear resistance. Specialized patterns enhance ground friction for various terrains.
  • Drive Wheel: Positioned at chassis front/rear, connects to power system via gears/sprockets to rotate tracks for movement.
  • Guide Wheel: Front-mounted for track direction control, often includes tensioning devices for optimal track tightness.
  • Support System: Carrier wheels prevent track sagging while support wheels distribute equipment weight evenly across tracks.
Load Capacity & Applications

With a 4-ton capacity, this chassis handles demanding transportation tasks including prefabricated components and heavy machinery on construction sites.

  • Integrated overload alarm system activates when exceeding rated capacity
  • Optimized load distribution through precision center of gravity design
  • Large track area (3.3*1.85*0.5 platform) reduces ground pressure for soft terrain operation
  • Stable track layout prevents tipping during full-load operation

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
