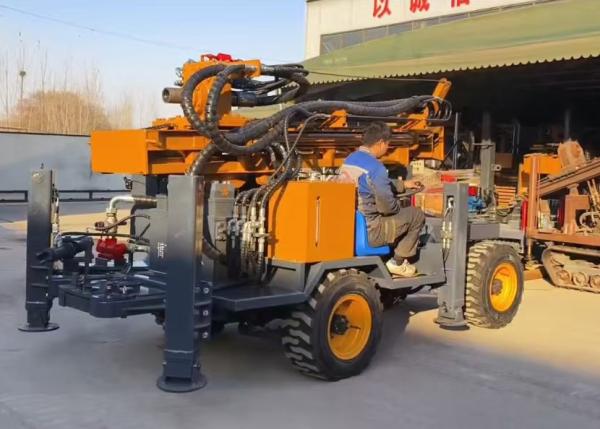

Mud Pump Drilling Rig With Fast Rotation Speed
Mud Pump Drilling Rig With Fast Rotation Speed
Mud Pump Drilling Rig With Fast Rotation Speed
Mud Pump Drilling Rig With Fast Rotation Speed
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
keyword :
Well drilling rig
Maximum turning torque :
5900
Drilling depth :
200m
One push length :
3M
Drilling pipe diameter :
Φ76mm, Φ89mm
Fast forward speed :
20m/min
Dimension :
4400x2150x2200mm
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Description
200 Type Tire Type Water Well Drilling Rig
Key Features
  • Fast rotation speed with maximum torque of 5900 Nm
  • Drilling depth capacity of 200 meters
  • Compact design with dimensions of 4400×2150×2200mm
  • Powered by Xidong 65 kW diesel engine
  • Pneumatic operation for enhanced safety in sensitive environments
Technical Specifications
Attribute Value
Maximum Turning Torque 5900 Nm
Drilling Depth 200m
One Push Length 3M
Drilling Pipe Diameter Φ76mm, Φ89mm
Fast Forward Speed 20m/min
Weight 5.5T
Detailed Parameters
Parameter Unit Value
Max Drilling Diameter mm 105-350
Air Pressure Mpa 1.2-3.5
Main Shaft Pressure T 4
Lifting Force T 18
Power Head Stroke M 40
Max Rotary Speed r/min 30-120
Moving Speed km/h 2.5
Operational Advantages
Simple operation and maintenance: The rig features a straightforward structure without complex hydraulic or electrical systems, enabling quick operator training and reduced maintenance costs.
Enhanced safety: Compressed air power eliminates electrical hazards, making it ideal for flammable environments like mines and oil fields when gas concentrations meet safety standards.
Ideal Applications
  • Remote mountainous areas with limited electricity access
  • Rock formation drilling in granite and basalt
  • Environmentally sensitive zones including nature reserves
  • Emergency water supply scenarios during natural disasters
  • Flammable environments where electrical equipment poses risks
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
