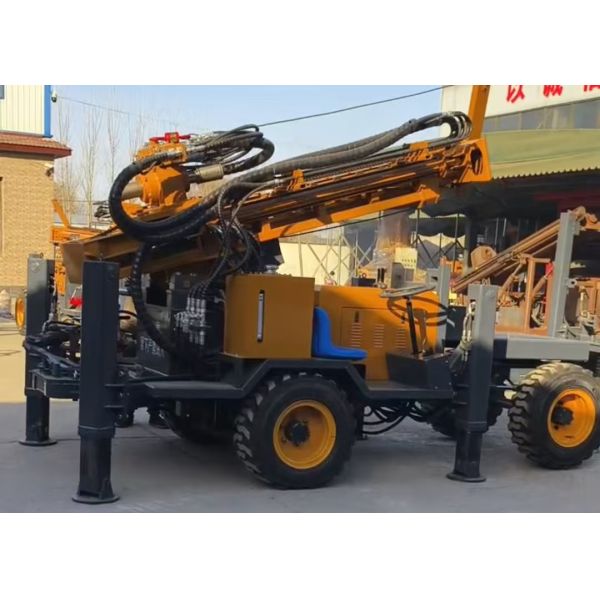

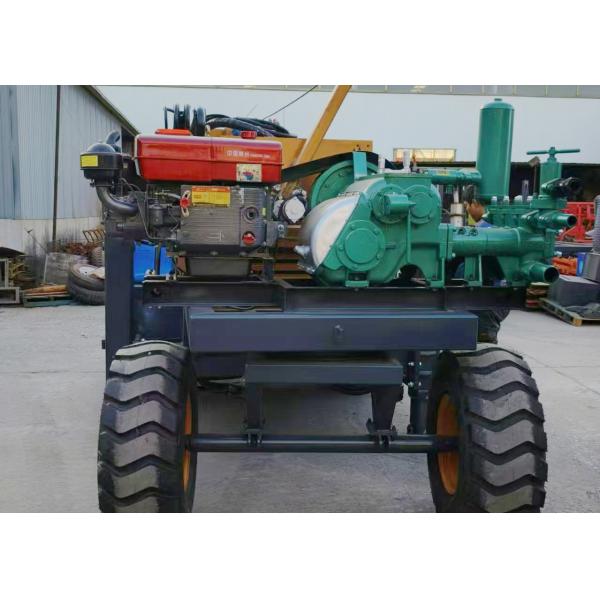

Powerful ST-200 Water Well Drilling Rig With High Efficiency
Powerful ST-200 Water Well Drilling Rig With High Efficiency
Powerful ST-200 Water Well Drilling Rig With High Efficiency
Powerful ST-200 Water Well Drilling Rig With High Efficiency
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Drilling depth :
200m
One push length :
3M
Drilling pipe diameter :
Φ76mm, Φ89mm
Iift force :
18T
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Description
ST-200 Water Well Drilling Rig
High-Efficiency Drilling Solution
The ST-200 is a powerful tire-type water well drilling rig designed for professional drilling operations with maximum efficiency and durability. This versatile rig supports both mud pump drilling and air compressor drilling methods.
Key Specifications
Attribute Value
Drilling Method Mud pump drilling and air compressor drilling
Drilling Diameter Φ105-Φ350mm
Drilling Depth 200m
One Push Length 3M
Drilling Pipe Diameter Φ76mm, Φ89mm
Lift Force 18T
Weight 5.5T
Engine Power Xidong 65 kW
Dimensions 4400×2150×2200mm
Performance & Durability
The service life of the ST-200 pneumatic water well drilling rig typically ranges between 8-15 years, depending on operating conditions and maintenance practices. Key factors affecting longevity include:
  • Working Environment: Harsh conditions (high temperature, humidity, dust, or corrosive environments) may reduce lifespan by 3-5 years
  • Maintenance: Regular maintenance can extend service life to 12-15 years or more
  • Operation: Proper use and timely replacement of vulnerable parts are crucial for longevity
Technical Parameters
Model Shitan ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm (Large drilling diameter)
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min (Fast rotation speed)
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw (Strong power)
Overall Dimensions 4400×2150×2200mm
Working Condition Loose layer and bedrock
Maintenance Guidelines
Daily Maintenance
  • Clean equipment surfaces thoroughly after each use
  • Inspect and tighten all connections, especially drill rod joints
  • Lubricate all moving parts according to manufacturer specifications
Regular Maintenance
  • Replace air filters every 200-300 working hours
  • Replace oil and fuel filters every 500-600 working hours
  • Inspect vulnerable components monthly using precision measuring tools
  • Maintain air compressor by draining moisture and checking belt tension
Special Maintenance
  • For long-term storage: Clean thoroughly, apply rust-proof oil, and store indoors
  • After harsh environment use: Perform deep cleaning and corrosion protection
Product Images
Powerful ST-200 Water Well Drilling Rig With High Efficiency Powerful ST-200 Water Well Drilling Rig With High Efficiency Powerful ST-200 Water Well Drilling Rig With High Efficiency Powerful ST-200 Water Well Drilling Rig With High Efficiency
