Factory Price BW250 Mud Pump For Drill Rig Equipment
Factory Price BW250 Mud Pump For Drill Rig Equipment
Factory Price BW250 Mud Pump For Drill Rig Equipment
Factory Price BW250 Mud Pump For Drill Rig Equipment
Specifications
Product Name :
BW 250 Mud Pump
stroke mm :
100
Cylinder bore mm :
80
Output :
250L/min
Horse Power :
18 HP Or Customized/15KW
Engine :
Diesel Engine/Motor power
Packing Size :
1000*995*650mm
weight kg :
500
Brand Name :
Shitan
Model Number :
BW 250 Mud Pump
Certification :
ISO
Place of Origin :
Jinzhou ,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
TT,Western Union
Supply Ability :
1000 sets per month
Delivery Time :
7 days after payment
Packaging Details :
Wooden Box
Description
Factory Price BW250 Mud Pump For Drill Rig Equipment
Product Specifications
Attribute Value
Product Name BW 250 Mud Pump
Stroke 100 mm
Cylinder bore 80 mm
Output 250L/min
Horse Power 18 HP Or Customized/15KW
Engine Diesel Engine/Motor power
Packing Size 1000*995*650mm
Weight 500 kg
Product Description

The BW250 mud pump is a horizontal triplex single-acting reciprocating piston pump, serving as essential equipment for drilling operations. It efficiently circulates mud water under pressure to bring rock clastics to the surface, cool drill bits, lubricate tools, and protect well walls, directly impacting drilling efficiency and operational safety.

Technical Specifications
Parameter Value
Pump speed (/min) 200 | 116 | 72 | 42
Flow (L/min) 250 | 145 | 90 | 52
Pressure (MPa) 2.5 | 4.5 | 6 | 7
Power (KW) 15
Volumetric efficiency 83%
Total efficiency 70%
V-belt pulley specifications Type B * 5 groove, 410mm pitch diameter
Input speed 500 rpm
Water absorption height 2.5 m
Inlet/Outlet size 76mm inlet / 51mm push pipe
Application Scenarios
  • Geological Exploration: Core drilling (up to 1500m with diamond bits, 1000m with hard alloy), mineral exploration, and geological structure analysis.
  • Construction Engineering: Foundation reinforcement for high-rises/bridges, tunnel wall grouting, and cast-in-place pile construction.
  • Mining Operations: Mine drainage, tailings slurry transportation, and maintaining safe working environments.
  • Hydropower Projects: Dam anti-seepage treatment, channel lining, and infrastructure reinforcement.

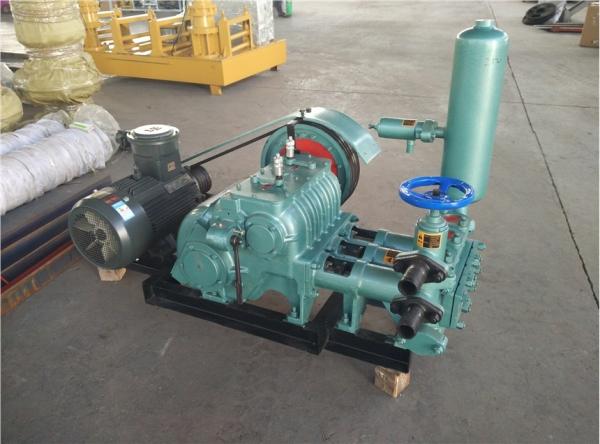

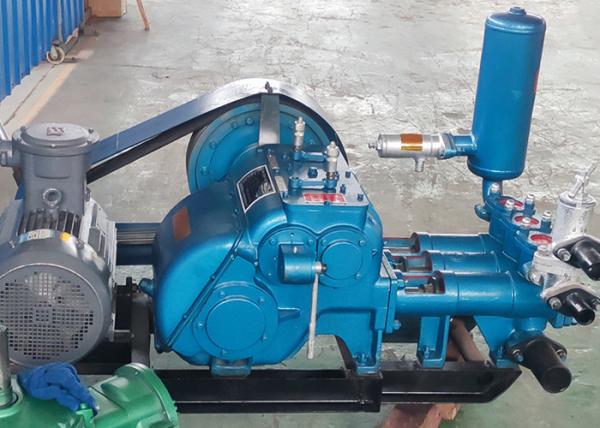

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment Factory Price BW250 Mud Pump For Drill Rig Equipment
