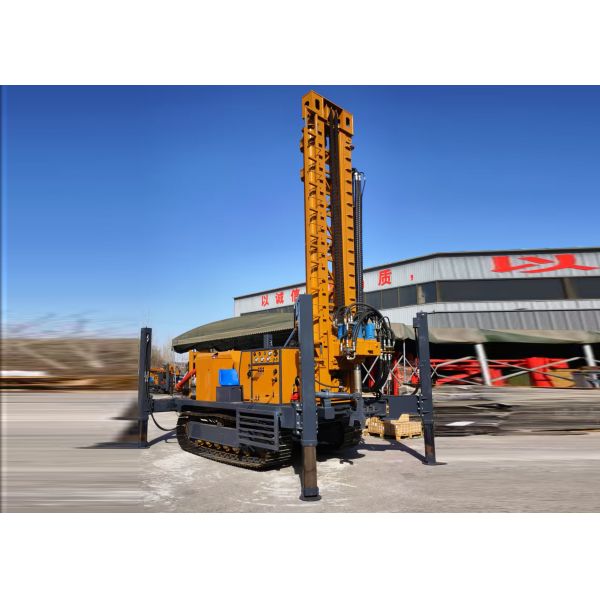

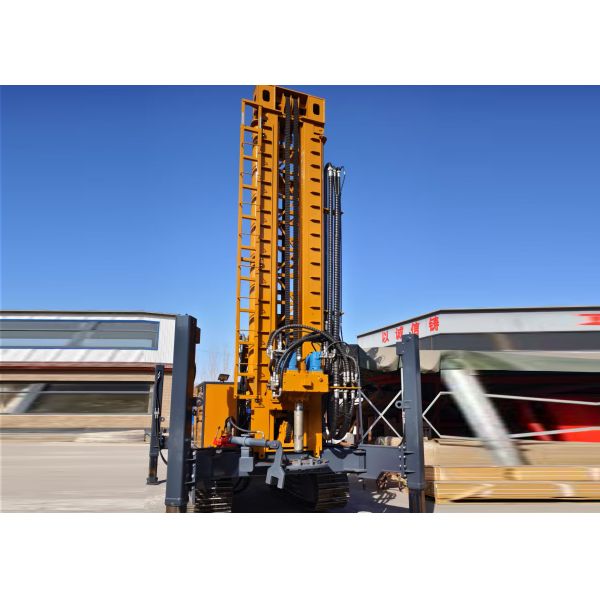

Pneumatic ST1000 type water well drilling rig with fast drilling speed
Pneumatic ST1000 type water well drilling rig with fast drilling speed
Pneumatic ST1000 type water well drilling rig with fast drilling speed
Pneumatic ST1000 type water well drilling rig with fast drilling speed
Specifications
Brand Name :
Shitan
Model Number :
ST-1000
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
High Drilling Speed ST 1000 Customized Pneumatic Borewell Machine Machines
Drilling depth :
1000m
Drilling diameter :
Φ105-Φ500mm
Dimension :
6200x2200x2500mm
One push length :
6M
Length of drill pipe :
3.0m,6.0m
Drilling pipe diameter :
Φ102mm, Φ114mm
Weight :
18T
Walking speed :
2.5km/h
Diesel engine power :
Cummins 242kw
Description

Pneumatic ST1000 type water well drilling rig with fast drilling speed

ST 1000 Pneumatic Borewell Machine Product Information

It is mainly suitable for drilling water wells,agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable.

ST 1000 Pneumatic Borewell Machine Main Technical Data:

Model
 Shitan ST 1000

Max drilling depth		 M 1000

Drilling diameter		 mm 105-500

Air pressure		 Mpa 1.2-3.5

Rod length		 m 6

Rod diameter		 mm 102-114

Main shaft pressure		 T 6

Lifting force		 T 45
Power head stroke M 47

Max rotary torque		 Nm 22000

Max rotary speed		 r/min 80-160

Secondary winch liftng force		 T 3

Jacks stroke		 m 1.5

Moving speed		 km/h 2.5

Uphill angle		 Slope 21°

Weight of the rig		 T 18
The engine 242KW / 6 cylinder

Overall dimensions		 6200*2200*2500mm

Working condition		 Loose layer and bedrock

Drilling method		 Hydraulic rotary, down-the-hole impactor


ST 1000 Pneumatic Borewell Machine Main Advantages"

1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.

2. It can be achievedwithout stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountainareas.
Pneumatic Borewell Machine maintenance
Our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.
Correct maintenance and repair is very important to maintain the technical performance, service life and reliability of the drilling rig. Daily maintenance and repair are carried out before and after the shift every day. The main contents are as follows:
(1) check whether all fasteners are loose.
(2) check whether the spindle rotates flexibly.
(3) check whether all control switches are normal and flexible.
(4) check whether the oiler is normal, whether the oil quantity is qualified and whether the oil quality is qualified.
(5) after use, it shall be cleaned in time to remove dirt and clean up.
(6) remove rust spots on rusty parts and apply rust inhibitor.
(7) there is a filter screen at the pipe joint in the gas path, which can not be removed at will, but also cleaned regularly.
(8) the shell of the drilling rig is made of aluminum alloy. It is strictly prohibited to fall, smash and press.
(9) disassemble and clean regularly, clean all parts in the motor housing and add lubricating oil. Parts with severe wear shall be replaced. Generally, the two handles do not need to be removed, but the air pipe connector can be removed to clean the filter screen.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
