High-Strength Drill Rods for Mining and Geological Exploration
High-Strength Drill Rods for Mining and Geological Exploration
High-Strength Drill Rods for Mining and Geological Exploration
High-Strength Drill Rods for Mining and Geological Exploration
Specifications
Brand Name :
SHITAN
Model Number :
ST
Certification :
API
Place of Origin :
HEBEI CHINA
MOQ :
1 PC
Price :
10-500usd
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 sets/month
Delivery Time :
5-8 working days
Packaging Details :
Standarded export package
Product name :
Water well drill pipe
Material :
DTH
Use :
Coal Mining,Well Drilling
Length :
1000 to 6000mm
Application :
rock drilling
Advantage :
Long use life,High Wear Resistant
Diameter (mm) :
76mm-140mm
Thread model :
API 2 3/8 REG
Description
High-Strength Drill Rods for Mining and Geological Exploration
Product Specifications
Attribute Value
Product name Water well drill pipe
Material DTH
Use Coal Mining, Well Drilling
Length 1000 to 6000mm
Application Rock drilling
Advantage Long use life, High Wear Resistant
Diameter (mm) 76mm-140mm
Thread model API 2 3/8 REG
Product Description
Drill rods are core components that connect drilling rig power devices to drill bits, transmitting torque and drilling media while driving the drill bit. Widely used in geological exploration, water well drilling, mining, and oil/gas development.
Technical Specifications
Diameter (mm) Thickness (mm) Thickening type Length (mm) Thread Board shank slot
76 5-8mm IU 1000/1500/2000/2500/3000/4000/5000/6000 2 3/8 API REG Double buckle Single buckle
89 6-9.35mm IU 1000/1500/2000/2500/3000/4000/5000/6000 2 3/8 IF Double buckle Single buckle
102 7-8.38mm IU/IEU 1500/2000/2500/3000/4000/5000/6000 2 7/8 IF 3 1/2 REG Double buckle Single buckle
114 6-9.35mm IU 1500/2000/2500/3000/4000/5000/6000 2 7/8 IF 3 1/2 IF/REG Double buckle Single buckle
127 9mm IU 1500/2000/2500/3000/4000/5000/6000 3 1/2 IF Double buckle Single buckle
140 8-12mm IU 3000/4500/5000/6000 4 1/2 REG or 4FH Double buckle Single buckle
Construction & Components
Drill rods consist of two main parts:
  • Rod body: Hollow high-strength alloy steel pipe for torque transmission and fluid conveyance, often with spiral grooves for enhanced slag discharge
  • Joint: Located at both ends with threaded connections (male/female designs) for quick docking, requiring high strength and sealing to prevent leaks
Core Functions
  • Transmit drilling rig torque and impact force to drive drill bits
  • Channel for flushing liquids (mud/water) to cool bits and remove debris
  • Connect drill string components to form stable drilling systems
Usage Considerations
  • Verify quality certifications (API standards) for materials and safety
  • Ensure joint design allows for easy maintenance and part replacement
  • Select manufacturers offering customization for special drilling conditions

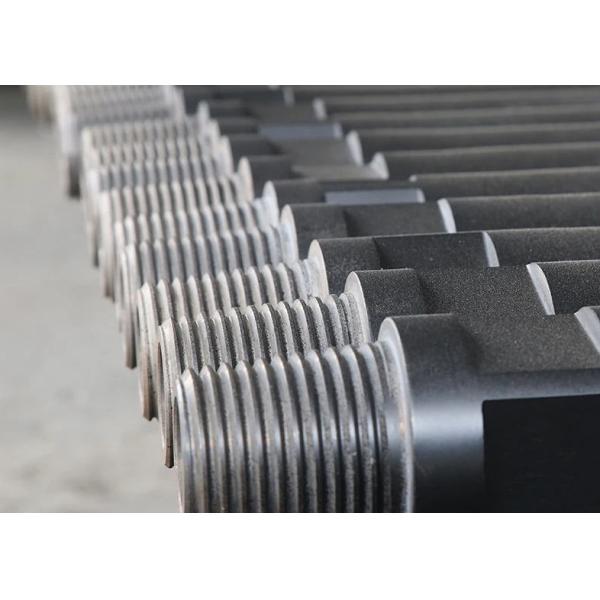

Product Images
High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration High-Strength Drill Rods for Mining and Geological Exploration
