Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Specifications
Brand Name :
Shitan
Model Number :
Small 100 meter drilling machine
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
Customized quotation list
Payment Terms :
30% TT deposit,and 70% before shipment
Supply Ability :
2000 sets
Delivery Time :
10 days after deposit
Packaging Details :
Wooden box
Product Name :
Water Drilling Rig
Power :
Diesel Engine
Rotation speed :
70-120r/min
Drill pipe length :
2m
Drilling Diameter :
50mm-300mm
After Sales Service :
Online Support
Drilling Depth :
100m
Drilling rig size :
3000mm*2100mm*2800mm
Description

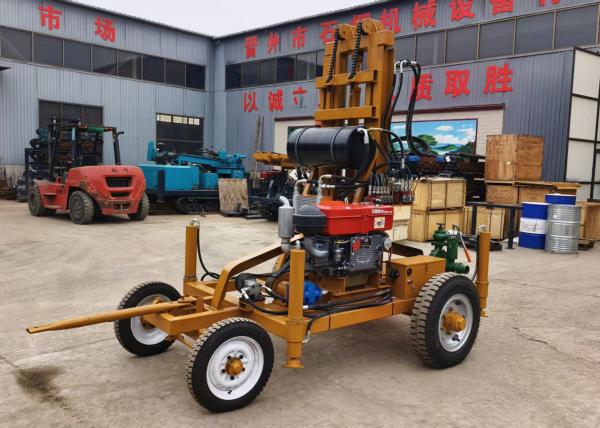

Four-wheel Tractor Borewell Machine - Preferred Choice For Rural Drilling
Portable Four-Wheel Tractor Borewell Machine - The preferred choice for efficient rural drilling operations with excellent mobility and performance.
Product Specifications
Attribute Value
Product Name Water Drilling Rig
Power Diesel Engine
Rotation Speed 70-120r/min
Drill Pipe Length 2m
Drilling Diameter 50mm-300mm
After Sales Service Online Support
Drilling Depth 100m
Drilling Rig Size 3000mm * 2100mm * 2800mm
Technical Specifications
Attribute Value
Motor Power 32HP
Rotating Torque 3000
Maximum Lifting Force 11T
Maximum Propulsion Force 2T
Weight 2.5T
Key Features
  • Excellent Maneuverability: Four-wheel tire design enables easy transportation between job sites and adapts to various terrains including plains and mountainous areas
  • Simple Operation: Fully hydraulic control system with centralized operating handles reduces operator skill requirements and labor intensity
  • High Drilling Efficiency: Oil pressure automatic feed mechanism adjusts drilling parameters based on geological conditions, with capability for high-speed drilling
  • Enhanced Safety: Comprehensive protection including wellhead clamps and hydraulic leg locking devices prevents accidents
  • Versatile Performance: Customizable for different drilling depths and diameters, adaptable to various geological formations
Applications
  • Agricultural irrigation well drilling for farmland water supply
  • Industrial water supply for factories and mining operations
  • Domestic water solutions in water-scarce regions
  • Ground source heat pump system installations
  • Geological exploration and sampling
Product Images
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Close-up of drilling mechanism
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Four-wheel Tractor Borewell Machine Preferred Choice For Rural Drilling
Drilling rig transport configuration

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
