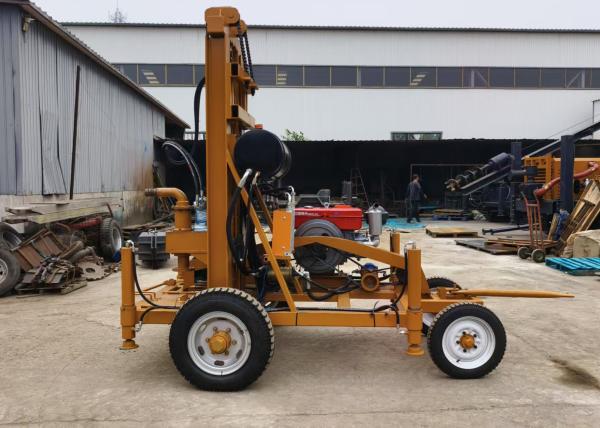

New Tire Type Land Drilling Machine High Torque Output Suitable For Complex Geological Conditions
New Tire Type Land Drilling Machine High Torque Output Suitable For Complex Geological Conditions
New Tire Type Land Drilling Machine High Torque Output Suitable For Complex Geological Conditions
New Tire Type Land Drilling Machine High Torque Output Suitable For Complex Geological Conditions
Specifications
Product Name :
Water Drilling Rig
Power :
32HP Diesel Engine
Rotation speed :
70-120r/min
Drill pipe length :
2m
Drilling Diameter :
300mm
After Sales Service :
Online Support
Drilling Depth :
100-150m
Drilling rig size :
3000mm*2100mm*2800mm
Brand Name :
Shitan
Model Number :
Small 100 meter drilling machine
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
Customized quotation list
Payment Terms :
30% TT deposit,and 70% before shipment
Supply Ability :
2000 sets
Delivery Time :
10 days after deposit
Packaging Details :
Wooden box
Description
New Tire Type Land Drilling Machine with High Torque Output
Designed for Complex Geological Conditions
Product Specifications
Attribute Value
Product Name Water Drilling Rig
Power 32HP Diesel Engine
Rotation Speed 70-120r/min
Drill Pipe Length 2m
Drilling Diameter 300mm
Drilling Depth 100-150m
Dimensions 3000mm × 2100mm × 2800mm
After Sales Service Online Support
Product Overview

The tire type water well drilling rig is a mobile drilling equipment designed specifically for drilling water wells. Its core function is to use mechanical power to drive the drill bit to break the formation, forming deep wells to obtain groundwater, with important applications across multiple fields.

Technical Specifications
  • Rotating Torque: 3000 Nm
  • Maximum Lifting Force: 11T
  • Maximum Propulsion Force: 2T
  • Weight: 2.5T
  • Drill Pipe Diameter: 60mm
Working Principle

The four-wheel tire water well drilling rig drives the hydraulic system through the power system, which controls various components to achieve drilling operations:

  • Drilling: Power system drives the turntable to rotate the drill bit while hydraulic system pushes the drill rod downward
  • Slag Discharge: Mud pump injects mud/water to carry rock debris to the surface
  • Lifting/Lowering: Winch controls drill rod movement for bit replacement or operation completion
Key Applications
  • Core Function: Drilling water wells to access groundwater using various drill bits for different formations
  • Domestic Water Supply: Provides clean water sources for rural areas and water-scarce regions
  • Agricultural Support: Enables irrigation well drilling and supplies water for livestock operations
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
