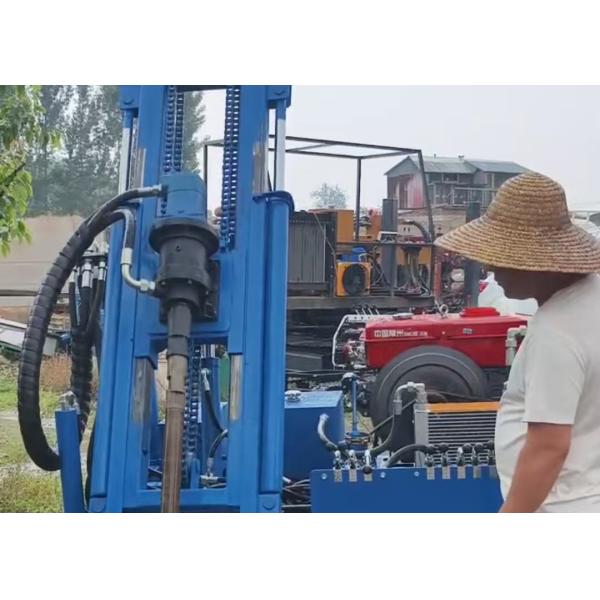

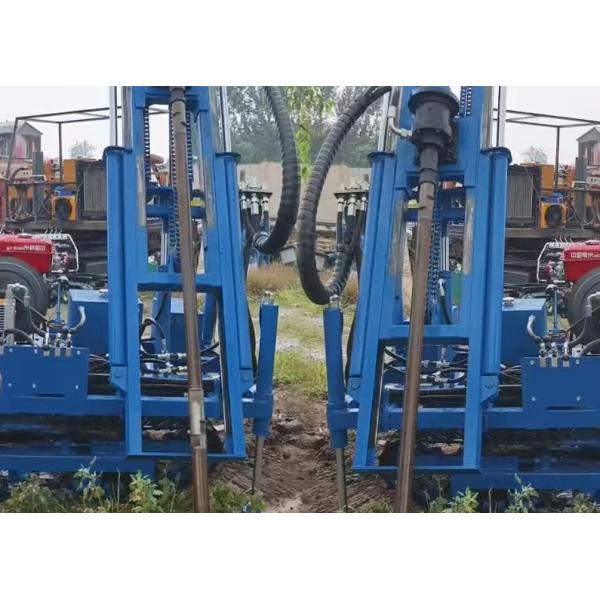

Crawler Hydraulic Coring Drilling Rig Easy To Move
Crawler Hydraulic Coring Drilling Rig Easy To Move
Crawler Hydraulic Coring Drilling Rig Easy To Move
Crawler Hydraulic Coring Drilling Rig Easy To Move
Specifications
Brand Name :
Shitan
Model Number :
Small 100 meter drilling machine
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
Customized quotation list
Payment Terms :
30% TT deposit,and 70% before shipment
Supply Ability :
2000 sets
Delivery Time :
10 days after deposit
Packaging Details :
Wooden box
Product Name :
Crawler Mounted Water Drilling Rig
Power :
28HP
Drill pipe length :
1.5m
Drilling Diameter :
50mm-100mm
After Sales Service :
Online Support
Drilling Depth :
30m-100m
Drilling rig size :
2000mm*1200mm*1200mm
weight :
1.5T
Description

Overview of tracked hydraulic drilling rig;


Working principle:


Using hydraulic oil as the working medium, the power device drives the hydraulic pump to convert mechanical energy into hydraulic energy. The hydraulic system delivers pressure oil to various actuating components (such as hydraulic motors, cylinders, etc.) to drive the movement of components such as drill rigs, rock drills, and thrusters. The hydraulic rock drill generates high-frequency impact and rotational motion under the action of high-pressure oil. The impact drill bit breaks the rock, while the thruster pushes the drill rod and drill bit into the rock. The drill rod unloading device connects or disassembles the drill rod in a timely manner according to the drilling depth, achieving deep hole drilling.


Technical Parameters:


Product Name Small 100 Meter Crawler Mounted Drilling Rig Machine
Drilling Depth 30m-100m
After Sales Service Online Support
Drilling Rod Diameter 60 Mm
Weight 1.5T
Color Yellow, blue, red
Drilling Diameter 50mm-100mm
Power Diesel Engine
Rotation speed 80r/min
Drill pipe length 1.5m


Core advantages:

The down the hole impact technology directly acts on the bottom of the hole, resulting in minimal energy loss during rock breaking and a 2-3 times higher efficiency in breaking hard rocks compared to rotary drilling machines;
The tracked chassis is flexible in movement, stable in support, reduces transition time and operational shaking, and is suitable for complex terrains;
The fully hydraulic system can automatically adjust parameters and adapt to different rock hardness.

Reduce maintenance costs and failure rates:

Standardized operation: Reduce thread wear caused by frequent manual contact with drill rods. For example, the polymer liner guide rail of the Jeya drilling rig can reduce mechanical wear, while the automatic lubrication system further reduces component wear.
Fault warning: Some devices integrate sensors to monitor the status of the connecting rod in real time. For example, proximity switches can provide early warning of sensing distance attenuation to avoid sudden failures.

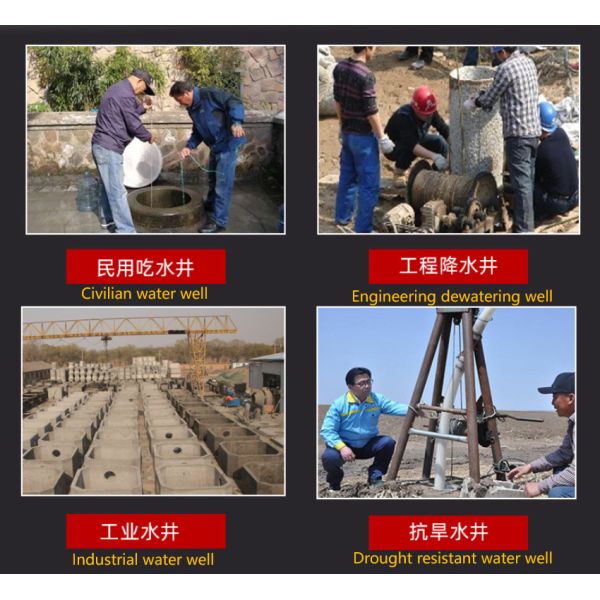

application area:

Mining: Used for drilling operations in open-pit and underground mines, such as mining stone, coal, etc., which can drill blasting holes, anchor holes, anchor holes, etc.
Water conservancy and hydropower engineering: It can be used for drilling, grouting, anchoring, drainage and other operations in dam construction, reservoir reinforcement, water diversion tunnels and other projects.
Transportation Engineering: Suitable for drilling operations in roadbed reinforcement, slope protection, tunnel construction, and other aspects of highway and railway construction, such as drilling anchor holes, anchor holes, and pipe shed holes.
Building foundation engineering: In high-rise buildings, bridges, ports and other foundation engineering, it can be used for drilling and grouting piles, foundation reinforcement, anti floating anchor rods and other construction.
Geological exploration: used for drilling and sampling, geological structure detection, and other work in the field of geological exploration, to help understand the underground geological conditions.
