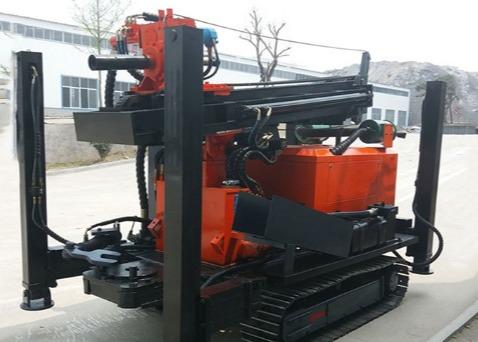

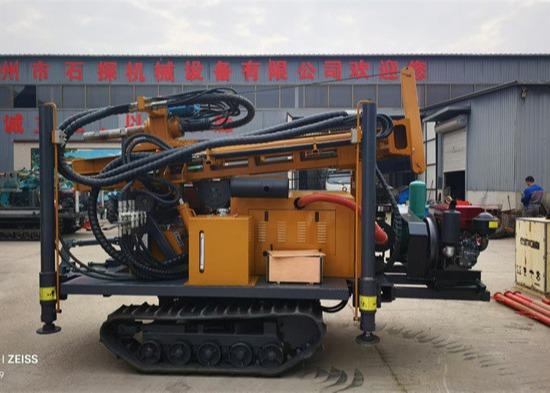

5900 Rotary Torque New Drilling Rig 160 Meters Depth
5900 Rotary Torque New Drilling Rig 160 Meters Depth
5900 Rotary Torque New Drilling Rig 160 Meters Depth
5900 Rotary Torque New Drilling Rig 160 Meters Depth
Specifications
Product Name :
ST 160 Pneumatic Borewell Machine
Key Words :
Pneumatic Water Well Drilling Rig ,160 Meters Drilling,Borehole Drilling
Drilling Depth :
160 Meters
Weight :
4 T
Warranty :
12 Months
Rotary Torque :
5900
Moving Speed :
2.5 Km/hour
Drilling Rod Length :
3M
Brand Name :
Shitan
Model Number :
ST-160
Place of Origin :
Jinzhou,China
Certification :
ISO
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Bare packaging/wooden crate packaging
Delivery Time :
10-20 days after down payment
Payment Terms :
30% TT down payment,70% TT before shipment
Supply Ability :
10000set
Description
ST 160 Pneumatic Borewell Machine - 160 Meters Drilling Depth
Key Specifications
Attribute Value
Product Name ST 160 Pneumatic Borewell Machine
Drilling Depth 160 Meters
Weight 4 T
Warranty 12 Months
Rotary Torque 5900
Moving Speed 2.5 Km/hour
Drilling Rod Length 3M
Product Overview
The ST 160 Pneumatic Borewell Machine is a high-performance drilling rig with a 12-month warranty, designed for professional water well drilling applications. Featuring a robust steel construction and crawler-mounted design, this machine delivers exceptional drilling performance with a maximum depth of 160 meters.
Key Features
  • Rotary Torque: 5900 for powerful drilling performance
  • Drilling Hole Diameter: 105-254 mm for versatile applications
  • High Leg Stroke: 1.35 Meter for efficient operation
  • Fast Lifting Speed: 20 M/min for improved productivity
  • Crawler Mounted: Provides excellent mobility (2.5 Km/hour)
  • Drilling Rod Diameter: 76/89mm for various drilling needs
  • Lifting Force: 10T for heavy-duty performance
Technical Specifications
Product Type Water Borehole Drilling Machine
Equipment Type Large Water Well Drilling Equipment
Mount Type Crawler Mounted Drilling Rig
Material Steel
Weight 4 T
Applications
The ST-160 Pneumatic Water Well Borehole Machine is ideal for various professional drilling applications:
  • Water well drilling
  • Geothermal drilling
  • Mineral exploration
  • Construction drilling
Customization Options
Customize your Crawler Mounted Pneumatic Borehole Drilling Rig with our Product Customization Services:
Brand Name Shitan
Model Number ST-160
Place of Origin Jinzhou, China
Certification ISO
Minimum Order Quantity 1 set
Price Negotiable
Delivery Time 10-20 days after down payment
Support and Services
Our comprehensive support package ensures optimal performance and longevity of your drilling equipment:
  • Professional installation and commissioning
  • Maintenance and repair services
  • 24/7 technical support
  • Operator training programs
  • Custom modification services
Frequently Asked Questions
Q: What is the brand name of the borewell machine?
A: The brand name is Shitan.
Q: What is the model number?
A: The model number is ST-160.
Q: Where is the machine manufactured?
A: It is manufactured in Jinzhou, China.
Q: What certifications does it have?
A: The machine is ISO certified.
Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
