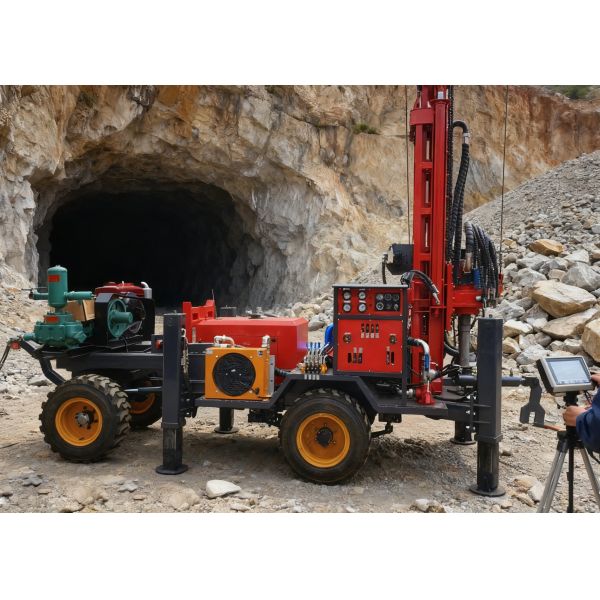

200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200M water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Rod Diameter :
76-89mm
Jacks Stroke :
1.35m
Drilling depth :
200m
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Working Condition :
Loose layer and bedrock
Description
200m Rural Drinking Water Well Drilling Rig Easy Operation and Portable
This portable and easy-to-operate water well drilling rig is designed for efficient water well construction in rural and agricultural settings.
Product Overview
A complete mechanical system for drilling water wells and performing supporting operations including well casing, washing, and cementing. Ideal for rural drinking water, farmland irrigation, industrial water supply, ground source heat pump holes, and precipitation wells.
Technical Specifications
Parameter Value
Model ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw
Overall Dimensions 4400*2150*2200mm
Working Condition Loose layer and bedrock
Core Features
  • Impact-based drilling with rotation support delivers 3-5 times higher efficiency in hard rock compared to ordinary rotary drills
  • Excellent performance in hard formations including granite and basalt
  • Air-based drilling medium eliminates mud pollution for cleaner wells and better water quality
  • Minimal hole wall disturbance ensures stability in complex formations and mountainous areas
  • Simple equipment structure with few fault points for easy field maintenance
Work Process
  1. Power transmission: Engine-driven rotation and feeding of drilling tools
  2. Stratum fragmentation: Drill bit breaks rocks or soil through cutting and impact methods
  3. Slag discharge: Mud pump maintains hole stability by removing drilling debris
  4. Well completion: Casing and cementing to form usable water wells
Product Images
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
200m Rural Drinking Water Well Drilling Rig Easy Operation And Portable
