Horizontal Twin Cylinder BW850/2 Drilling Mud Pump Manufacturer
Horizontal Twin Cylinder BW850/2 Drilling Mud Pump Manufacturer
Horizontal Twin Cylinder BW850/2 Drilling Mud Pump Manufacturer
Horizontal Twin Cylinder BW850/2 Drilling Mud Pump Manufacturer
Specifications
Product Name :
BW 850/2 Mud Pump
stroke mm :
150
Horse Power :
4105
Engine :
Diesel Engine
Brand Name :
Shitan
Model Number :
BW850/2 Mud Pump
MOQ :
1 set
Price :
Negotiable
Delivery Time :
7 days after payment
Packaging Details :
Wooden Box
Cylinder bore mm :
82
Output :
850L/min
Packing Size :
2000*1030*1400mm
weight kg :
1500
Certification :
ISO
Place of Origin :
Jinzhou ,China
Payment Terms :
TT,Western Union
Supply Ability :
1000 sets per month
Description
BW850/2 Dual Cylinder Double Acting Reciprocating Piston Pump

Primary Applications
BW850/2 is a dual cylinder double acting reciprocating piston pump. The motor drives the crankshaft to make the piston reciprocate, and the left and right sides of the piston alternately suck and discharge slurry. The two cylinders work in a staggered manner to achieve continuous, stable, and high-pressure transportation of slurry, providing flushing fluid circulation power for the drilling rig.
Technical Specifications
Attribute Value
Product Name BW 850/2 Mud Pump
Stroke 150 mm
Pump Speed 180 mm
Cylinder Diameter 82/58 mm
Flow Rate 850/600 L/min
Power 2.0 /3.0MPa
Horse Power 4105
Engine Diesel Engine
Packing Size 2000 * 1030 * 1400 mm
Weight 1500 kg

Working principle of mud pump


1. Structural dynamic principle
The motor drives the crankshaft to rotate through a belt/coupling.
The crankshaft drives the connecting rod, crosshead, and piston rod to perform reciprocating linear motion.
The piston moves left and right inside the cylinder liner, forming a volume change, thereby achieving suction and discharge.
2. Double action principle (key)
The meaning of "double action" is: when the piston moves to the left, it pumps slurry, and when it moves to the right, it pumps slurry continuously, with less pulsation.
Piston moves to the right:
The volume on the right side of the piston decreases → the mud is squeezed → the drain valve is pushed open → it is discharged.
The left volume of the piston increases → negative pressure is formed → the suction valve is opened → mud is sucked in.


Pressure and flow characteristics


1.Flow rate: determined by piston area, stroke, and stroke
2.Pressure: determined by drilling resistance
3.The pump is equipped with a safety valve that automatically overflows when the pressure exceeds the limit, protecting the equipment

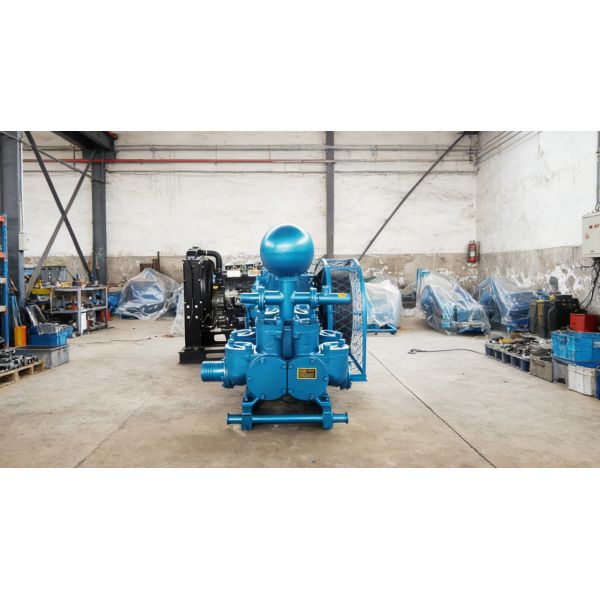

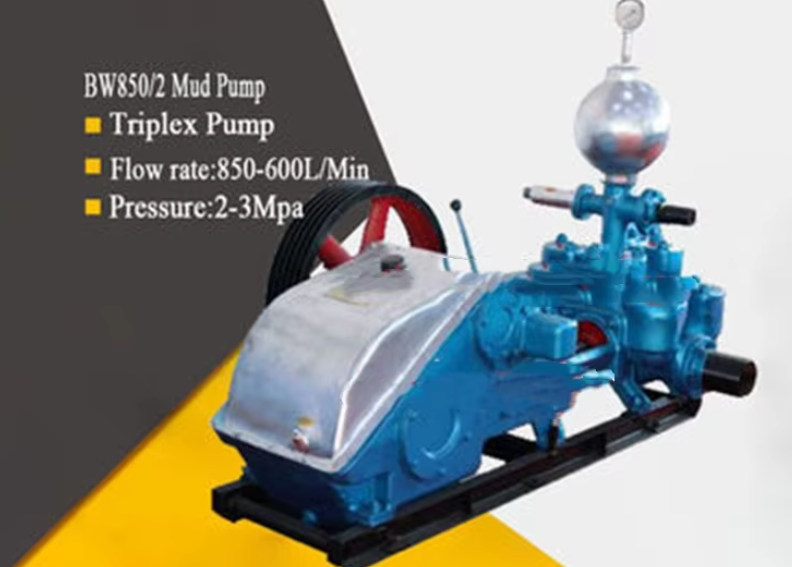

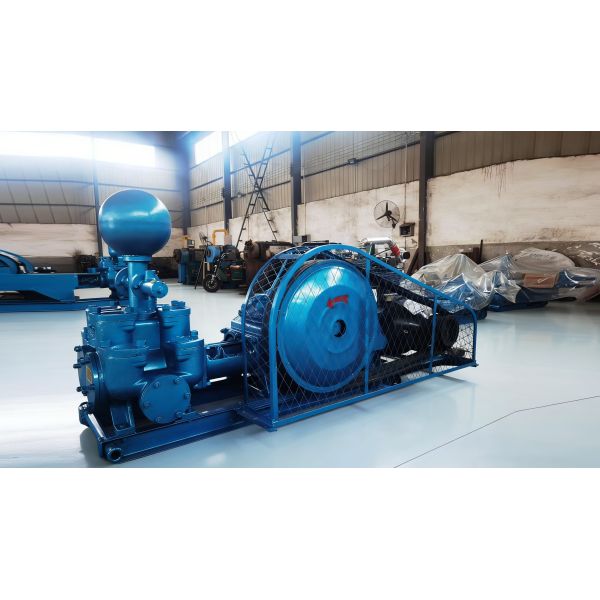

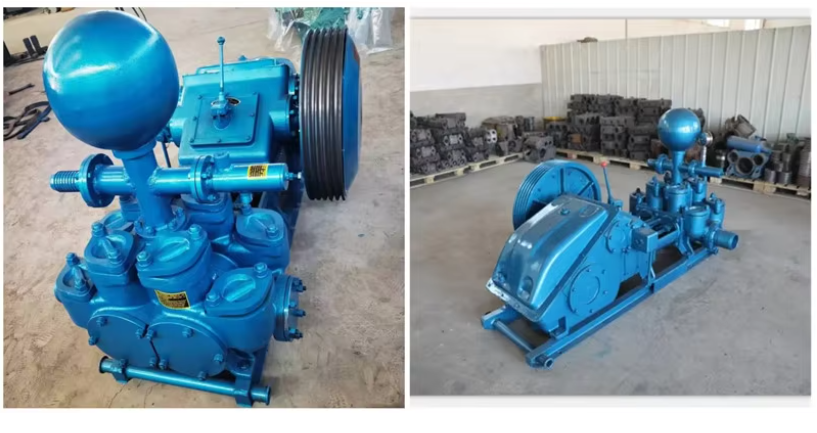

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
