Heavy Duty Sealed Steel Crawler Support Assembly Mud Proof Low Wear Modular Design
Heavy Duty Sealed Steel Crawler Support Assembly Mud Proof Low Wear Modular Design
Heavy Duty Sealed Steel Crawler Support Assembly Mud Proof Low Wear Modular Design
Heavy Duty Sealed Steel Crawler Support Assembly Mud Proof Low Wear Modular Design
Specifications
Brand Name :
shitan
Model Number :
ST
Certification :
ISO
Place of Origin :
Jinzhou,Hebei ,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
30% TT down payment,70% TT before shipment
Supply Ability :
1000 sets monthly
Delivery Time :
5-7 days after payment
Packaging Details :
Wooden Box,Bulk Packing
Product Name :
Track Chassis
Drive mode :
Transmission Drive
Start Type :
Electric Start
Track Size :
400*90*54
Load Capacity :
8 T
Platform Size :
4*1.85*0.7
Structure Type :
Welded Steel Structure, Heavy-duty Frame
Travel Speed :
0–3 km/h (infinitely variable)
Gradeability :
Gradeability
Undercarriage Weight :
1,800–3,500 kg (depending on load)
Description
Heavy Duty Sealed Steel Crawler Support Assembly Mud Proof Low Wear Modular Design
1. Product Overview

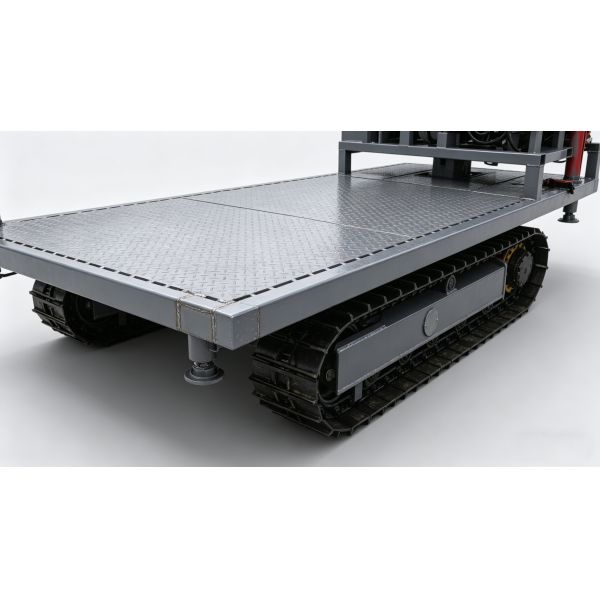

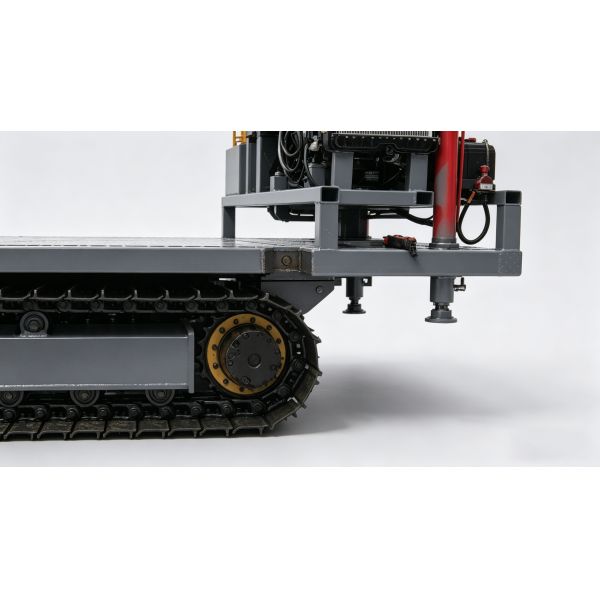

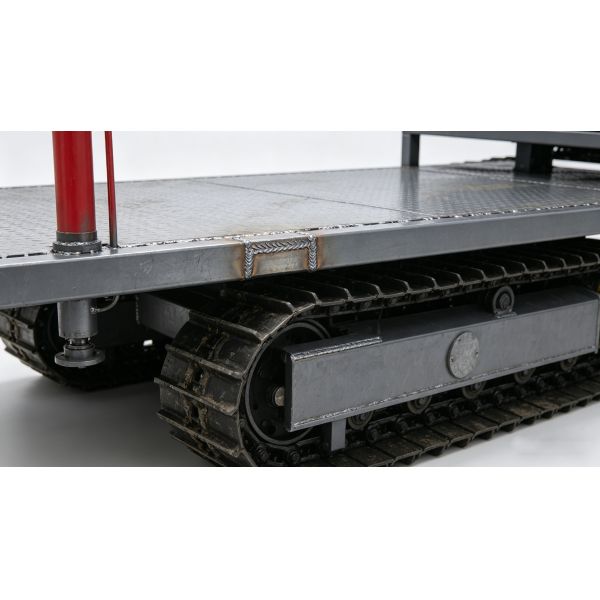

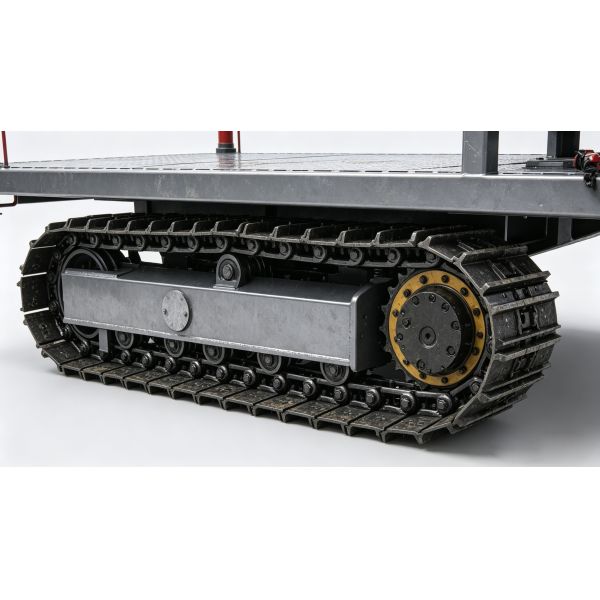

Heavy‑duty all‑steel crawler chassis built with high‑strength , fully welded heavy‑duty structure, featuring shock resistance, anti‑corrosion and long service life. Adopts hydraulic drive system with low ground pressure, strong gradeability and stable all‑terrain performance. Customizable size, load capacity and mounting interface, perfectly matched for drilling rigs, water well rigs and geological exploration equipment. Modular design for easy maintenance, ideal for harsh construction and mining working environments.

2. Core Specifications
Category Specification
Structure & Material

- Main frame: Q345 high-strength steel, fully welded heavy-duty construction

- Track shoes: High manganese alloy steel, heat-treated for impact resistance

- Surface treatment: Sandblasted, anti-rust primer + industrial polyurethane topcoat
Performance

- Rated load capacity: 5–20 tons (customizable)

- Ground pressure: ≤0.06 MPa (low-pressure design for soft ground)

- Gradeability: Up to 30°

- Travel speed: 0–3 km/h (infinitely variable control)

- Steering: In-situ pivot / differential steering
Drive System

- Hydraulic travel motors + planetary gear reducers

- Spring-loaded track tensioning system

- Sealed, lifetime-lubricated support rollers & idlers
Platform & Mounting

- Platform: Anti-slip checkered steel plate (size customizable)

- Mounting interface: Custom bolt pattern for direct rig installation

- Optional: 4-point hydraulic leveling outriggers
Environmental Adaptability

- Operating temperature: -20°C to +50°C

- Waterproof & dustproof design for harsh construction sites

- Resistant to mud, sand, and corrosive environments
Product Advantages

5. High structural stability and safety
The four-wheel belt sealed structure has good shock absorption effect and minimal shaking during operation, ensuring precise and safe drilling construction.

6. Modular and easy to maintain
Standardized and universal components, easy disassembly and assembly, low maintenance and repair costs in the later stage, and long service life.

7. Support customization
Size, load capacity, track width, installation platform, support legs, and interfaces can be customized according to needs, suitable for various types of construction machinery.

8. Export quality can be shipped by sea
Standardized workmanship, compact structure, easy to pack, suitable for foreign trade exports, and undertaking overseas engineering equipment matching.

4. Typical Applications
  • Geological exploration drilling rigs
  • Water well drilling equipment
  • Foundation construction machinery
  • Mining and quarry equipment
  • Remote-area heavy equipment transport
