Compact Structure Track Mounted Drill Cross-country Low Failure Rate
Compact Structure Track Mounted Drill Cross-country Low Failure Rate
Compact Structure Track Mounted Drill Cross-country Low Failure Rate
Compact Structure Track Mounted Drill Cross-country Low Failure Rate
Specifications
Brand Name :
Shitan
Model Number :
200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Crawler drilling rig
Track size :
2.3 * 1.65m, grounding length 1.6m
Track specifications :
350 * 90 * 54
Platform size :
3.3 * 1.85m
Tower height :
6.5m
Load capacity :
476, 137, 191, 339, 612 r/min
Reverse rotation speed :
33, 145 r/min
Dimensions (diesel engine model) :
1790 × 1100 × 1500 mm
Description

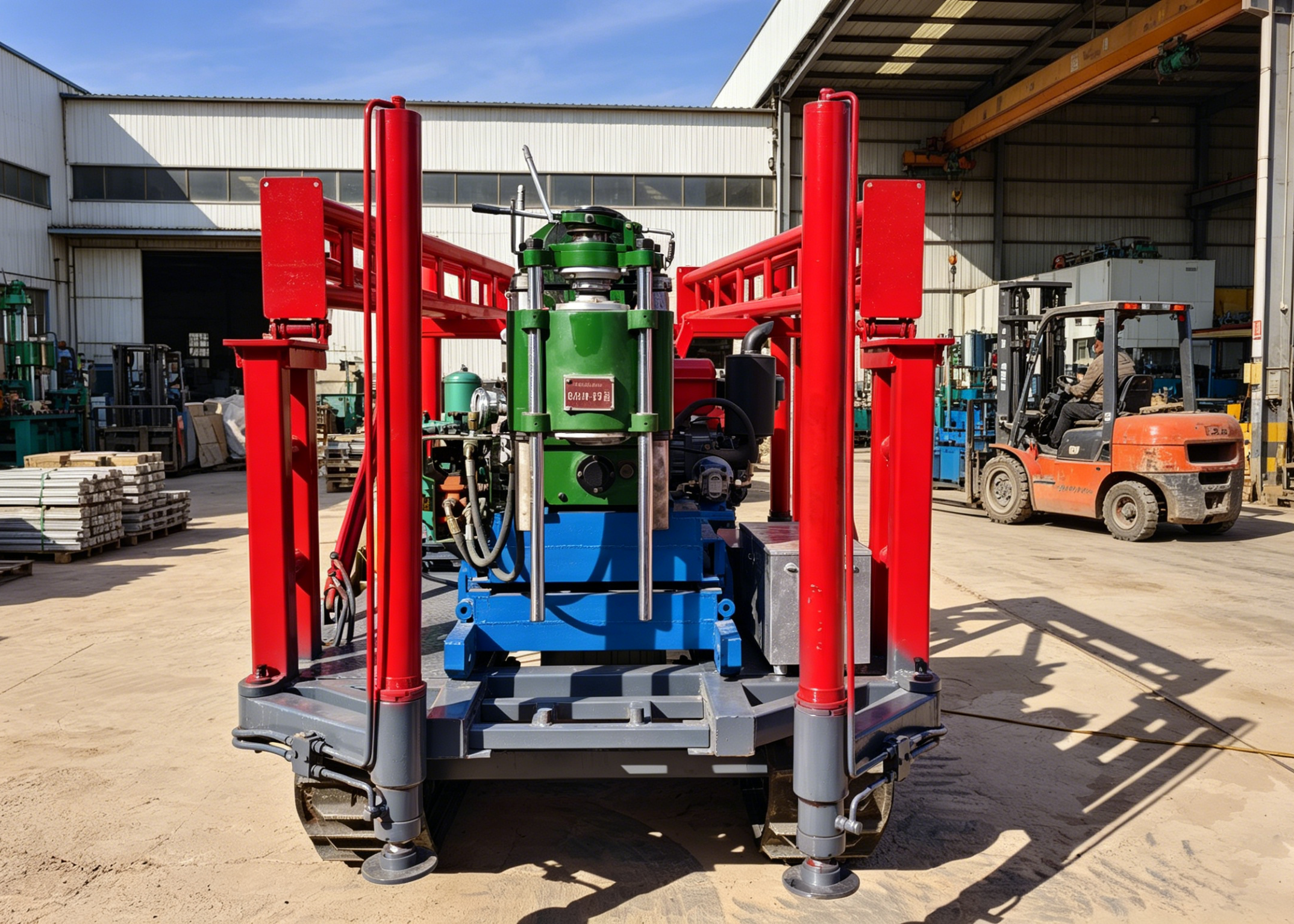

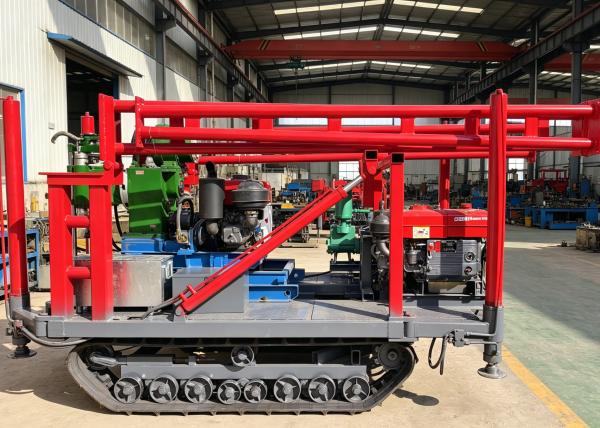

Wendeng crawler drilling rig
Wendeng drilling rig is a vertical axis core drilling rig produced in Wendeng area, Shandong Province. It belongs to the exploration equipment of medium and shallow hole engineering and is known for its simple structure, durability, and high cost-effectiveness. It is widely used in geological exploration, water wells, and foundation engineering.
Technical Specifications
Attribute Value
Product Name Crawler Drilling Rig
Drilling Way Rotary
Geological Adaptation Soil, Rock, Hard Rock
Usage Soil Sample
Track Machine Size 3300mm * 1850mm * 2000mm
Track Specifications 350 * 90 * 54
Tower Height 6500mm
Exploration Hole (50mm Drill Pipe) Opening: 150mm, Final: 91mm, Depth: 240m
Water Well Hole (50mm Drill Pipe) Opening: 325mm, Final: 219mm, Depth: 120m
Basic Hole (60mm Drill Rod) Opening/Final: 600mm, Depth: 60m
Vertical Shaft Speed (Forward Rotation) 1100 r/min (High Speed Gear)
Maximum Torque 400 N·m
Electric Motor 15kw
Diesel Engine 1115
Dimensions 1800 * 800 * 1200 mm
Whole Machine Weight 750 kg
Main application scenarios
Geological exploration: core drilling, mineral survey, engineering geological sampling (coalfield, metallurgy, hydrology, etc.).
Water well engineering: civil/industrial water wells, drought resistant wells, with a diameter of 100-300mm and a depth of ≤ 240m.
Basic engineering: building pile foundation, roadbed reinforcement, slope anchoring holes, concrete coring (highway/dam).
Summary of Core Advantages
✅ Durable and reliable: mainly mechanical transmission, low failure rate, and low maintenance cost.
✅ Easy to operate: centralized handle, hydraulic input, easy for beginners to pick up.
✅ Strong adaptability: interchangeable drill bits/drilling towers to meet the needs of exploration, water wells, and pile foundations.
✅ High cost-effectiveness: affordable in price among devices of the same depth, with a large market share and easy to purchase accessories.
General Applications
  • Geological Survey: Core sampling and stratigraphic testing for infrastructure projects
  • Well Drilling: Civil drinking water wells, farmland irrigation wells, mountainous deep wells, shallow geothermal wells
  • Mining Engineering: Mine water exploration, gas drainage, blasting holes, slope support anchor holes
  • Slope and Foundation Pit Support: Mountain slope protection, roadbed slope, building foundation pit anchor systems
  • Municipal Infrastructure: Pipe network drilling, foundation reinforcement, grouting holes, geological monitoring
  • Complex Terrain: Mountainous areas, forests, muddy terrain, steep slopes requiring self-guided transition operations
  • Other Fields: Photovoltaic power plant pile foundations, wind power foundation surveys, geological hazard control
Product Gallery
Compact Structure Track Mounted Drill Cross-country Low Failure RateCompact Structure Track Mounted Drill Cross-country Low Failure RateCompact Structure Track Mounted Drill Cross-country Low Failure RateCompact Structure Track Mounted Drill Cross-country Low Failure RateCompact Structure Track Mounted Drill Cross-country Low Failure Rate
