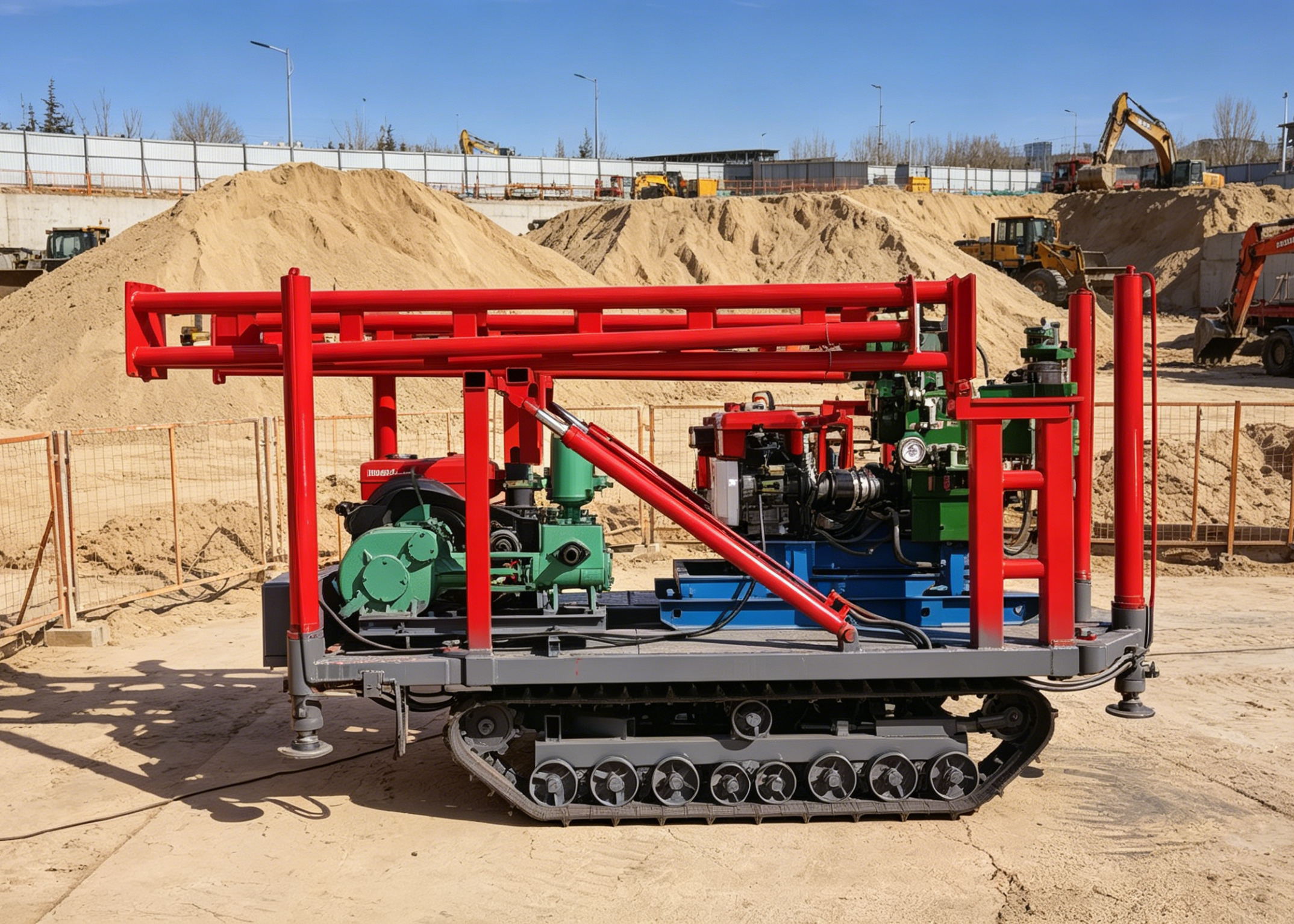

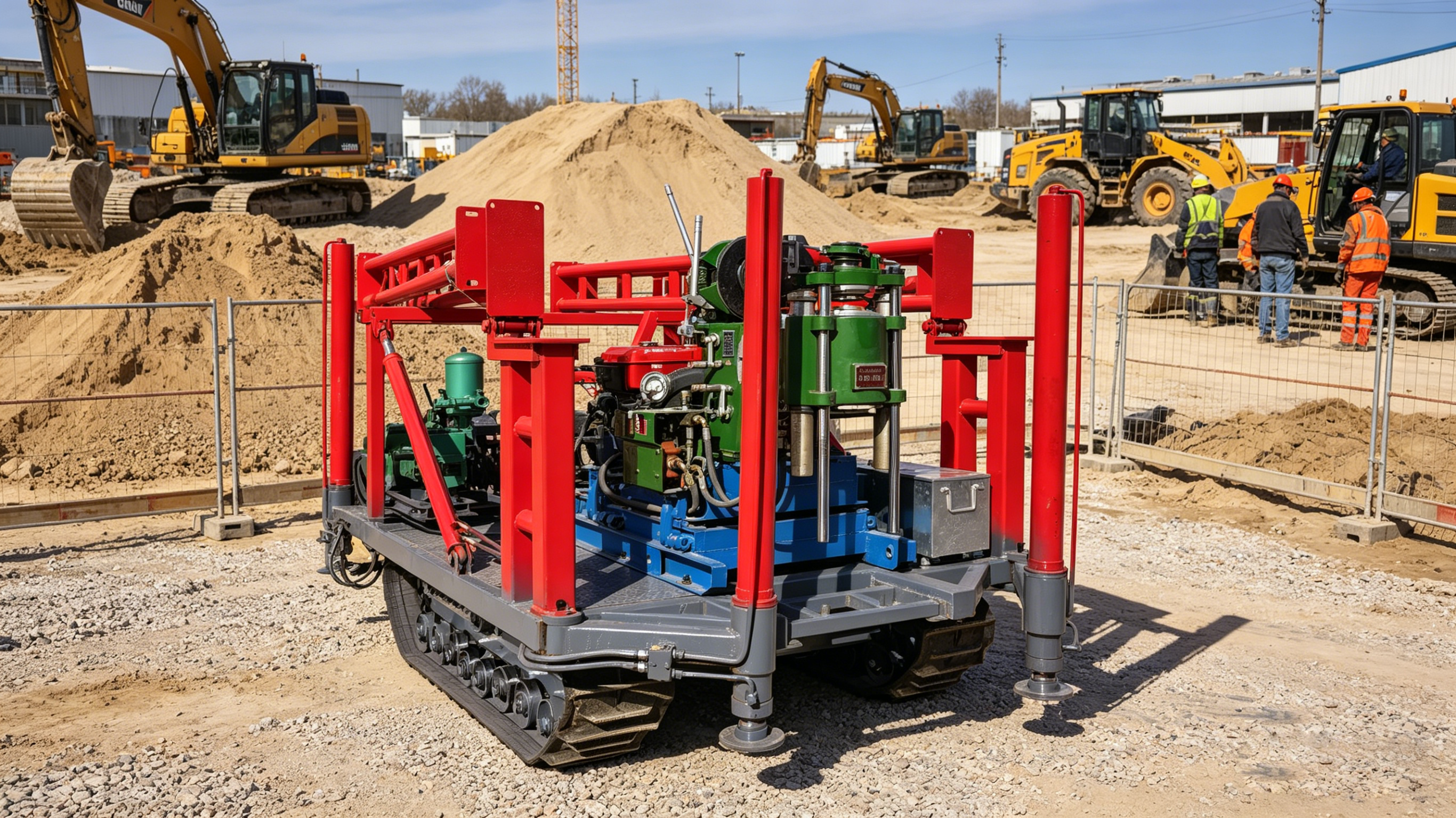

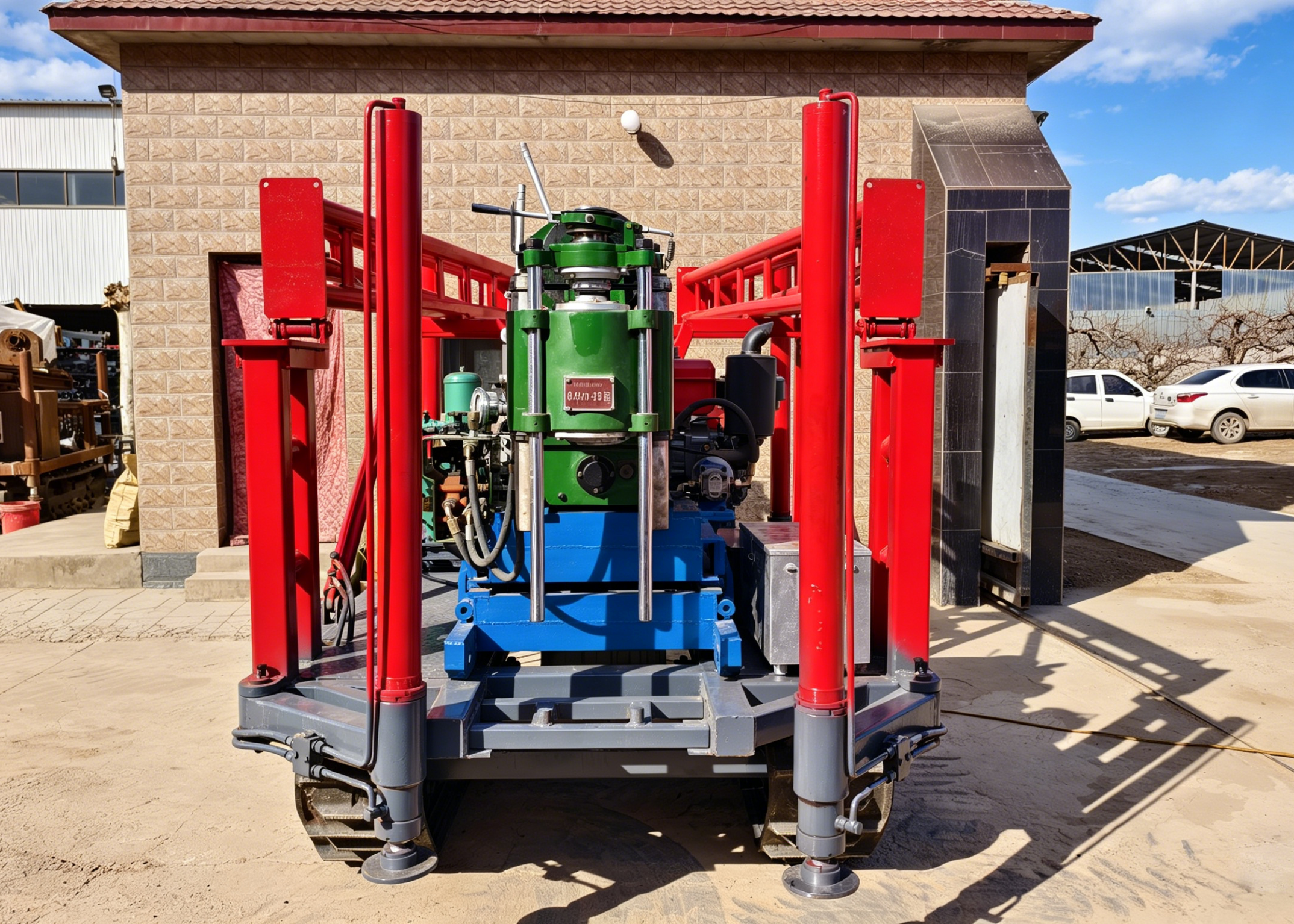

Heavy Duty Crawler Boring Machine Fast Moving Wide Application
Heavy Duty Crawler Boring Machine Fast Moving Wide Application
Heavy Duty Crawler Boring Machine Fast Moving Wide Application
Heavy Duty Crawler Boring Machine Fast Moving Wide Application
Specifications
Brand Name :
Shitan
Model Number :
200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Crawler drilling rig
Track size :
2.3 * 1.65m, grounding length 1.6m
Track specifications :
350 * 90 * 54
Platform size :
3.3 * 1.85m
Tower height :
6.5m
Load capacity :
476, 137, 191, 339, 612 r/min
Vertical Shaft Speed (Forward Rotation) :
1100 r/min (High Speed Gear)
Diesel engine :
L28 type (electric start), 20 KW
Dimensions (diesel engine model) :
1790 × 1100 × 1500 mm
Description
High Efficiency Crawler Drill Rig All Terrain Stable Performance
Product Overview

Crawler drilling rig is a self-propelled drilling equipment with a crawler chassis and full hydraulic drive. Its core advantages are strong terrain adaptability, flexible movement, and stable construction. It is widely used in geological exploration, water wells, foundation engineering, and mining scenarios.

Technical Specifications
Attribute Value
Product Name Crawler Drilling Rig
Drilling Way Rotary
Geological Adaptation Soil, Rock, Hard Rock
Usage Soil Sample
Track Machine Weight 3300 KG
Track Machine Size 3300mm * 1850mm * 2000mm
Track Specifications 350 * 90 * 54
Tower Height 6500mm
Exploration Hole (50mm Drill Pipe) Opening: 150mm, Final: 91mm, Depth: 240m
Water Well Hole (50mm Drill Pipe) Opening: 325mm, Final: 219mm, Depth: 120m
Basic Hole (60mm Drill Rod) Opening/Final: 600mm, Depth: 60m
Vertical Shaft Speed (Forward Rotation) 1100 r/min (High Speed Gear)
Maximum Torque 400 N·m
Electric Motor 15kw
Diesel Engine 1115
Dimensions 1800 * 800 * 1200 mm
Whole Machine Weight 750 kg
Main Features
All terrain access: No need to harden the road surface, operations can be carried out in mountains, forests, riverbanks, mining areas, and tunnels, with flexible transitions.
Efficient and stable: low center of gravity+track support, minimal construction vibration, precise hole positioning; Fully hydraulic power, high torque, high drilling efficiency.
Multi functional adaptation: interchangeable drill bits/processes to meet various needs such as geological coring, water wells, pile foundations, anchoring holes, gas drainage holes, etc.
Time and labor saving: self-propelled, no need for lifting, fast transition, short auxiliary time; Hydraulic operation, low labor intensity.
Common applications
Geological exploration: core drilling, soil sampling, mineral survey.
Water well engineering: civil/industrial water wells, drought resistant wells, with a diameter of 100mm to 300mm and a depth of tens to hundreds of meters.
Basic engineering: building pile foundation, roadbed reinforcement, slope anchoring, tunnel pipe shed holes.
Mining/underground: gas drainage, grouting fire extinguishing, coal seam water injection, water exploration holes (explosion-proof models used in coal mines).
Product Gallery
Heavy Duty Crawler Boring Machine Fast Moving Wide ApplicationHeavy Duty Crawler Boring Machine Fast Moving Wide ApplicationHeavy Duty Crawler Boring Machine Fast Moving Wide ApplicationHeavy Duty Crawler Boring Machine Fast Moving Wide ApplicationHeavy Duty Crawler Boring Machine Fast Moving Wide Application
