High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive
High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive
High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive
High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive
Specifications
Brand Name :
Shitan
Model Number :
200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Crawler drilling rig
Track size :
2.3 * 1.65m, grounding length 1.6m
Track specifications :
350 * 90 * 54
Platform size :
3.3 * 1.85m
Tower height :
6.5m
Load capacity :
476, 137, 191, 339, 612 r/min
Reverse rotation speed :
33, 145 r/min
Diesel engine :
L28 type (electric start), 20 KW
Dimensions (diesel engine model) :
1790 × 1100 × 1500 mm
Description
High Efficiency Crawler Drill Rig All Terrain Stable Performance
Product Overview

The crawler drilling rig is a multifunctional drilling equipment featuring a crawler chassis as the walking mechanism and fully hydraulic drive. Designed for self-propelled, all-terrain operation, it delivers high efficiency and stable performance. Widely used in geological exploration, water well drilling, mining construction, and foundation engineering.

Technical Specifications
Attribute Value
Product Name Crawler Drilling Rig
Drilling Way Rotary
Geological Adaptation Soil, Rock, Hard Rock
Usage Soil Sample
Track Machine Weight 3300 KG
Warranty 1 Year
Track Machine Size 3300mm * 1850mm * 2000mm
Track Specifications 350 * 90 * 54
Tower Height 6500mm
Exploration Hole (50mm Drill Pipe) Opening: 150mm, Final: 91mm, Depth: 240m
Water Well Hole (50mm Drill Pipe) Opening: 325mm, Final: 219mm, Depth: 120m
Basic Hole (60mm Drill Rod) Opening/Final: 600mm, Depth: 60m
Vertical Shaft Speed (Forward Rotation) 1100 r/min (High Speed Gear)
Maximum Torque 400 N·m
Electric Motor 15kw
Diesel Engine 1115
Dimensions 1800 * 800 * 1200 mm
Whole Machine Weight 750 kg
Application Scope
  • Geological Exploration: Solid ore deposit survey, geophysical exploration, core sampling (diameter 46-75 mm, depth 180-240 m)
  • Engineering Survey: Geological survey and concrete coring for highways, railways, bridges, buildings, and dams
  • Water Well/Agricultural Well: Small water wells within 325mm diameter, depth ≤ 120m
  • Mining and Support: Water/gas exploration holes, blasting holes, slope anchor holes (0-90° inclination angle)
  • Other Applications: Monitoring holes, recharge holes, quality inspection holes, urban non-excavation/municipal drilling holes
General Applications
  • Geological Survey: Core sampling and stratigraphic testing for infrastructure projects
  • Well Drilling: Civil drinking water wells, farmland irrigation wells, mountainous deep wells, shallow geothermal wells
  • Mining Engineering: Mine water exploration, gas drainage, blasting holes, slope support anchor holes
  • Slope and Foundation Pit Support: Mountain slope protection, roadbed slope, building foundation pit anchor systems
  • Municipal Infrastructure: Pipe network drilling, foundation reinforcement, grouting holes, geological monitoring
  • Complex Terrain: Mountainous areas, forests, muddy terrain, steep slopes requiring self-guided transition operations
  • Other Fields: Photovoltaic power plant pile foundations, wind power foundation surveys, geological hazard control

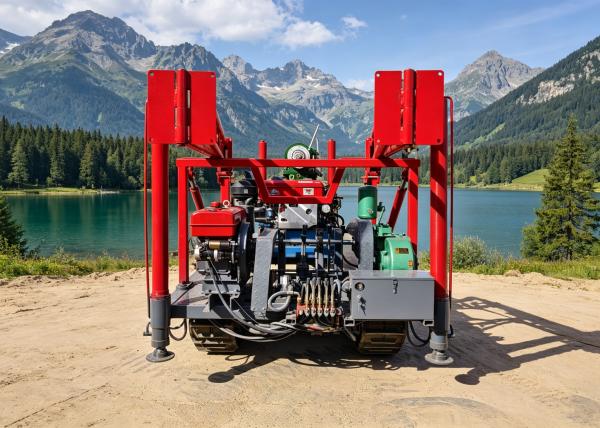

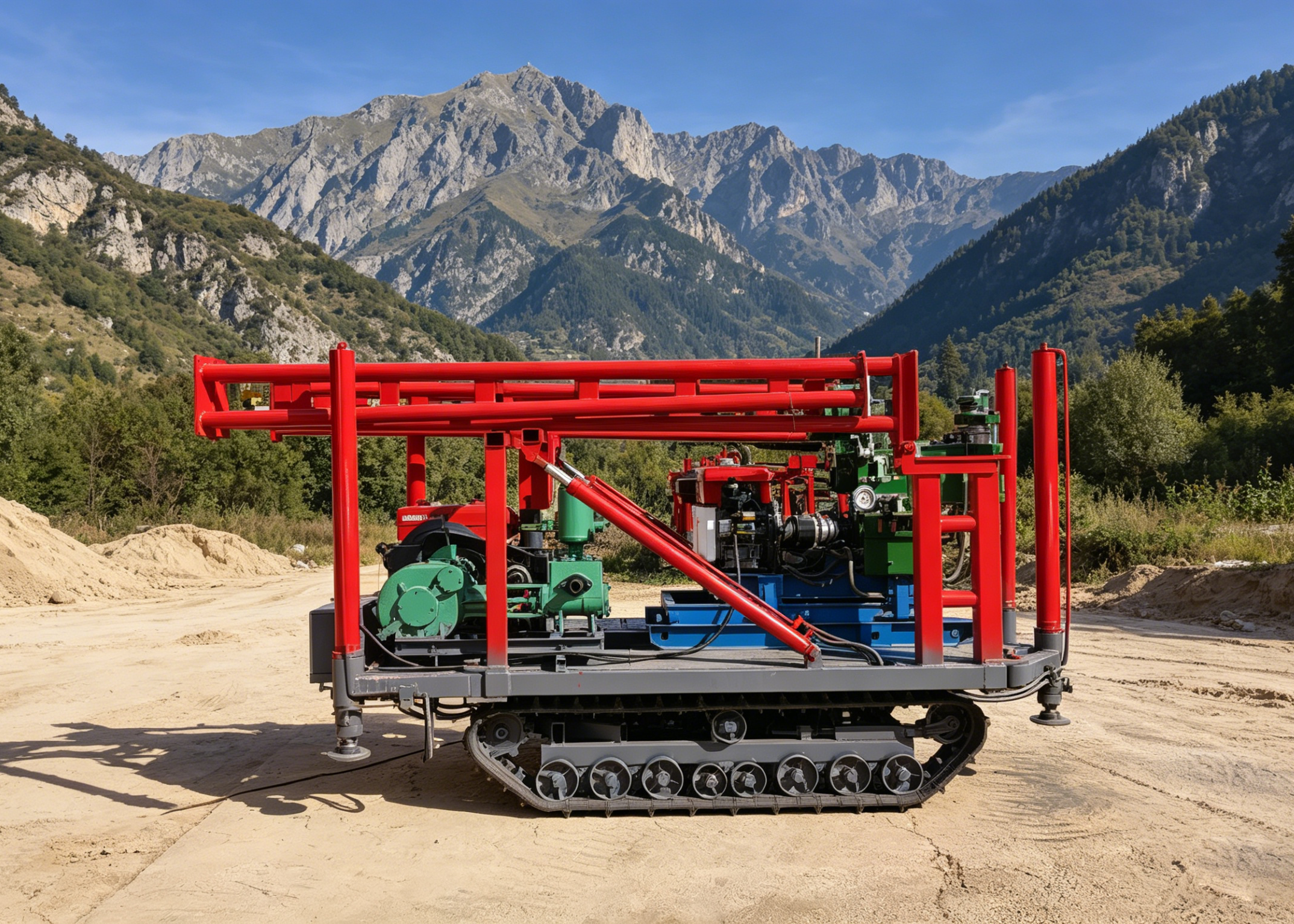

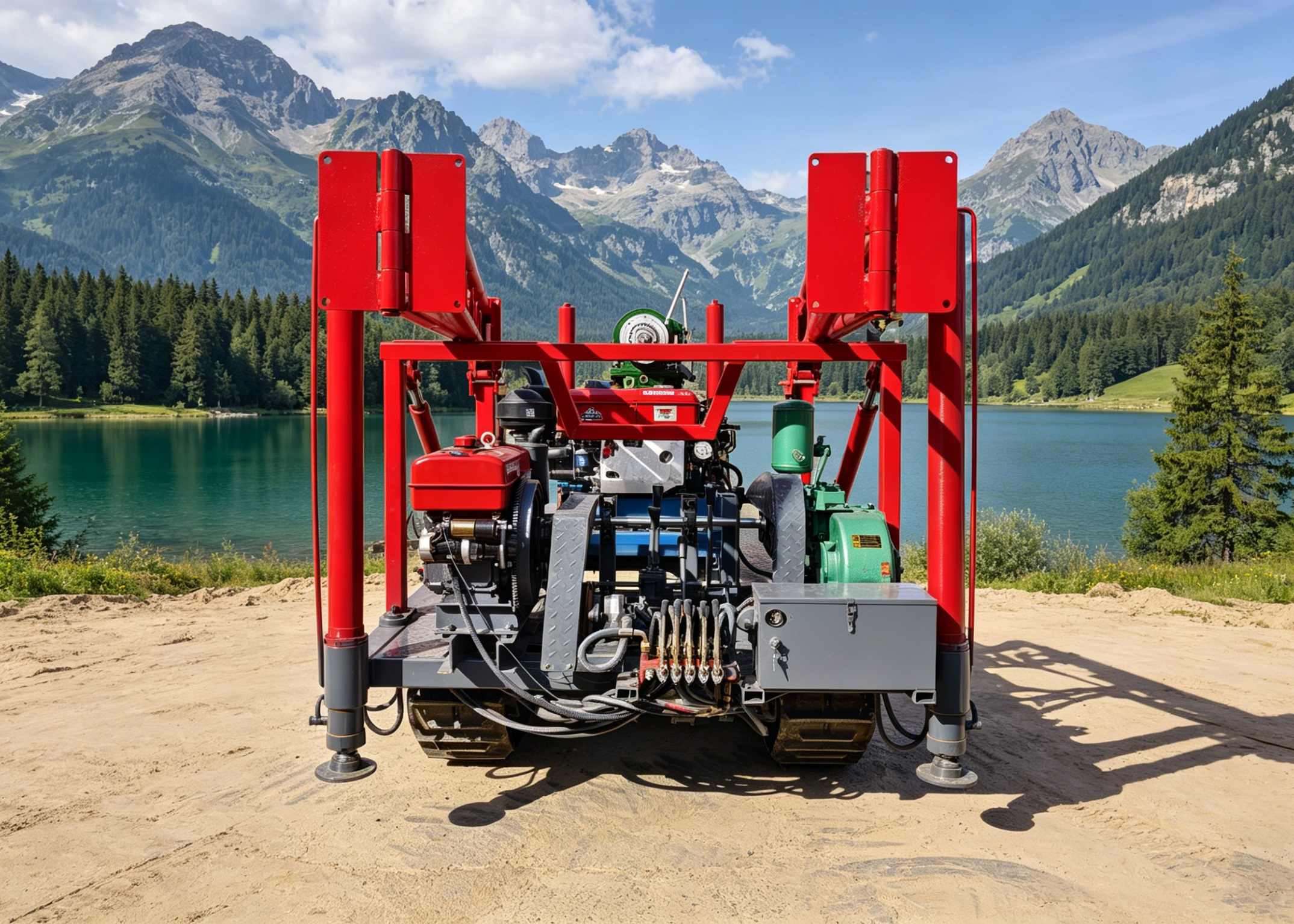

Product Gallery

High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic DriveHigh Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive

High Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic DriveHigh Efficiency All Terrain Crawler Drilling Rig with Stable Performance and Hydraulic Drive
