Small Hydraulic Crawler Drilling Machine Suitable For Geological Exploration
Small Hydraulic Crawler Drilling Machine Suitable For Geological Exploration
Small Hydraulic Crawler Drilling Machine Suitable For Geological Exploration
Small Hydraulic Crawler Drilling Machine Suitable For Geological Exploration
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
Gy-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Drilling Diameter :
75-200mm
Type :
Rubber track hydraulic chassis
Power Type :
Diesel
Product Name :
Gy 200 Soil Testing Drilling Rig
Drilling Depth :
300m
Power(W) :
16.2kw
Dimension(L*W*H) :
1730*860*1360mm
Weight :
1T
Condition :
New
Description

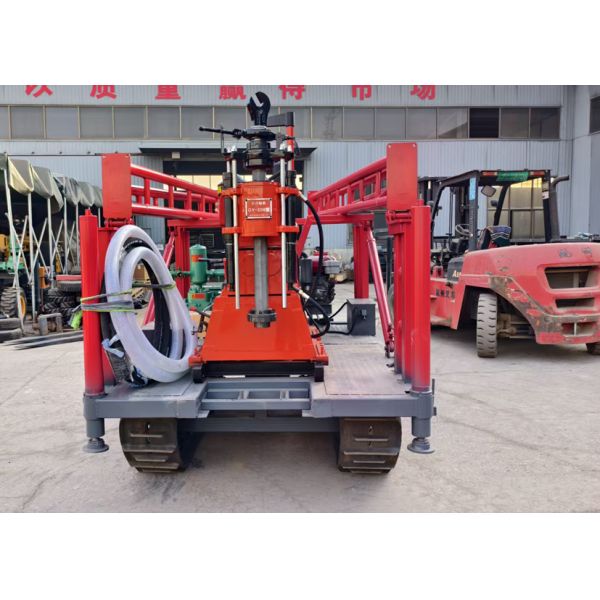

GY200 Hydraulic Rubber Crawler Core Drilling Machine

The GY200 core drilling rig is a lightweight and multifunctional engineering exploration drilling machine designed for efficient core extraction, flexible adaptation, and all-terrain operation. This cost-effective solution is widely used in geological exploration, engineering surveys, water well construction, and various exploration scenarios.

Technical Specifications
Drilling Depth 60-295m
Drilling Diameter 46-300mm
Drill Pipe Diameter 42-50mm
Spindle Rotatable Angle 0-360°
Net Weight (excluding power machine) 670kg
Dimensions (L*W*H) 1820*980*1400mm
Spindle Speed 68-900 r/min
Maximum Torque 2000 N*m
Driving Travel 400mm
Bobbin Line Speed (2 layers) 0.27-1.64 m/s
Bobbin Diameter 135mm
Applications
  • Engineering geological survey (buildings, roads, bridges, water and electricity)
  • Solid mineral survey and exploration
  • Hydrogeology and water well drilling
  • Geophysical exploration and geological hazard investigation
Core Advantages
Multi-Scenario Versatile Adaptation

Covers industrial/civil buildings, railways, bridges, hydropower and other engineering geological exploration. Capable of small-diameter foundation pile holes and water well construction, reducing equipment procurement costs with one machine for multiple purposes.

Efficient and Stable Working Performance

Low speed and high torque design prevents jamming or disturbance during hard rock drilling, ensuring high core recovery rate. Hydraulic feed with flexible multiple gear speeds adapts to various rock types including granite and sandstone, maximizing construction efficiency.

Low Maintenance and High Reliability

Hydraulic dual pump oil supply system for easy operation with minimal faults and simplified troubleshooting. Original core hydraulic components provide strong durability and low long-term operation and maintenance costs.
