Efficient Water Well Rotary Drilling Machine 200 Meters Depth
Efficient Water Well Rotary Drilling Machine 200 Meters Depth
Efficient Water Well Rotary Drilling Machine 200 Meters Depth
Efficient Water Well Rotary Drilling Machine 200 Meters Depth
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Product Name :
200 type tire type water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Drilling depth :
200m
One push length :
3M
Drilling pipe diameter :
Φ76mm, Φ89mm
Iift force :
18T
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Description
ST-200 Water Well Drilling Rig
Working Principle

A tire drilling rig uses an engine to drive a hydraulic pump, which delivers hydraulic oil to various hydraulic actuators such as oil cylinders, motors, etc., pushing the drilling arm, thrusters, and other components to rotate and feed the drill bit, thereby drilling in rocks or soil. During the drilling process, the mud pump injects mud into the borehole to cool, lubricate the drill bit, and carry rock debris.

Technical Parameters
Model Shitan ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm (Large drilling diameter)
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min (Fast rotation speed)
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw (Strong power)
Overall Dimensions 4400×2150×2200mm
Working Condition Loose layer and bedrock
Features

Good maneuverability: The tire type walking mechanism enables the drilling rig to move quickly and flexibly between different work locations, saving relocation time and costs, especially suitable for projects that require frequent movement.

Strong adaptability: Different types of drill bits and drilling tools can be replaced according to different geological conditions and drilling requirements, using different drilling techniques such as rotary drilling, impact drilling, etc., suitable for various engineering geological surveys and construction scenarios.

Easy to operate: The operation of the drilling rig is usually centralized in the operating room, and through the hydraulic control system and various instruments, the operator can easily control the various actions of the drilling rig, real-time understanding of the drilling situation, with low labor intensity.

High work efficiency: Advanced hydraulic systems and drilling technology enable tire drilling machines to have high drilling speed and work efficiency. For example, some drilling machines have stepless speed regulation function for rotation, which can adjust drilling speed according to different rock conditions and improve drilling efficiency.

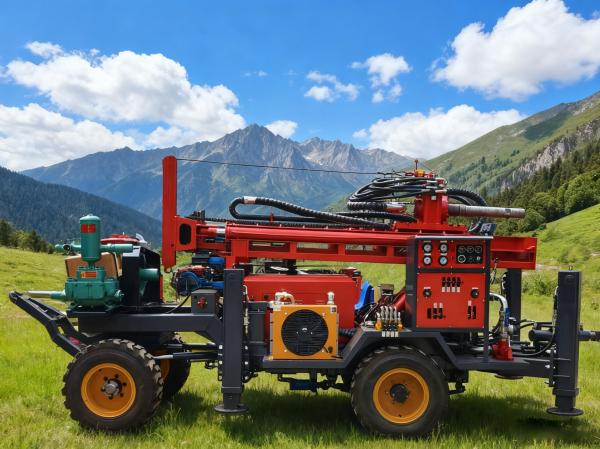

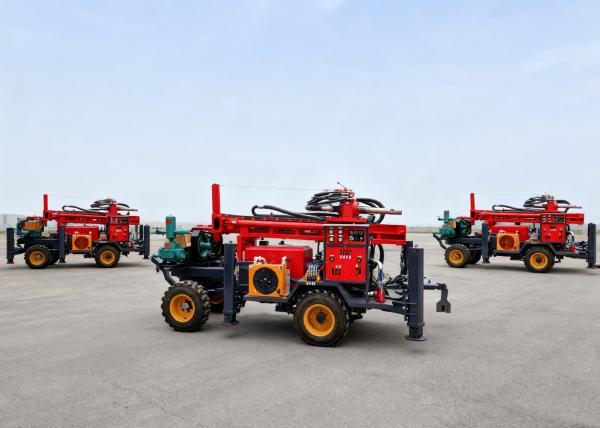

Product Images
Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth Efficient Water Well Rotary Drilling Machine 200 Meters Depth
