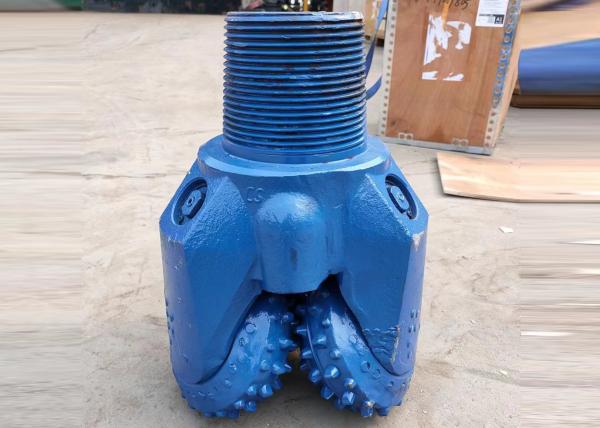

Mining Drilling Three Cone Rock Roller Tricone Bit Multiple Sizes
Mining Drilling Three Cone Rock Roller Tricone Bit Multiple Sizes
Mining Drilling Three Cone Rock Roller Tricone Bit Multiple Sizes
Mining Drilling Three Cone Rock Roller Tricone Bit Multiple Sizes
Specifications
Brand Name :
Shitan
Model Number :
STR
Certification :
API
Place of Origin :
HEBEI CHINA
Payment Terms :
L/C,T/T,Western Union,MoneyGram,D/P
Delivery Time :
5-8 working days
Packaging Details :
Wooden cases standarded export package or as request
Material :
Carbide
Type :
Drill Bit
Machine type :
Drilling Equipment
Processing type :
Forging
Use :
Well Drilling,water well and oil well and so on
Application :
DTH Drilling,rock drilling
Color :
golden
Advantage :
High-efficiency,Wear Resistant,High Performance
Description

Mining Drilling Three Cone Rock Roller Tricone Bit Multiple Sizes


Tricone Bit Description

Three cone drill bit is currently one of the most widely used types of drill bits in the fields of oil and gas drilling, geological exploration, and water well drilling. Its core advantage lies in its adaptability to multiple types of rock formations and efficient crushing ability. With the structural design of "three cone collaborative operation", it can achieve stable drilling under complex geological conditions and is the core tool for construction from shallow to deep wells.


Drilling rig parameters


Size (inches)

Size (mm)

3 7/8

98

4 5/8

118

5 7/8

149

6

152

6 1/2

165

7 1/2

190

7 7/8

200

8 1/2

216

8 3/4

222.2

9 1/2

241

9 5/8

244.4

9 7/8

250

10 5/8

269

11 5/8

295

12 1/4

311

12 5/8

320.6

13 5/8

346

14 3/4

374.6

15 1/2

393

16

406

17 1/2

445


In addition, there are some large-sized three cone drill bits, such as 26 inches (660 mm), 36 inches (914.4 mm), etc., mainly used for some special large-scale engineering or oil drilling projects.


Rock roller tricone bits applications


Tricone bits are mainly used for large-scale open-pit mining, such as open-pit coal mines, iron mines, copper mines and molybdenum mines, also the non-metallic mines,water well drilling. With the increasing in variety of type, it's also widely used in quarrying, foundation clearing, hydro geological drilling, coring, tunneling in railway transportation department and shaft drilling in underground mines


The advantage of tricone rock bit

Hard Alloy Welding Perivent bit wear and tear work and protect the bearing
Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation
High strength tungsten carbide teeth ,high temperature hear treatment forged alloy steel
Lubricating system protection of the bearing and seal system of the bit
Sealed Journal bearing
You can find the bit Diameter,thread Pin IADC code Serial number on the bottom
