High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement
High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement
High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement
High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Jinzhou,China
Product Name :
ST 200 Pneumatic Drilling Rig
Key words :
Water well drilling rig, drilling rig, pneumatic water well drilling rig
Drilling Hole Diameter :
105-300 Mm
Drilling Depth :
100-200 Meters
Drilling Rod Diameter :
76 Mm
Drilling Rod Length :
3 M
Lifting Force :
18MT
Material :
Rubber Track
Overall Dimensions :
3.8m*1.8m*2.3m
Engine :
Xidong:65KW
Description
Overview of ST200 drilling rig

Product Overview

The Pneumatic 200 Drilling Machine is a professional drilling equipment powered by compressed air and adapted to a core diameter of 200mm. It has the advantages of explosion-proof safety and efficient rock breaking, and is widely used in mining water exploration, geological exploration, engineering support and other scenarios.
It relies on pneumatic motor drive, with high impact frequency and strong impact energy, capable of dealing with complex geological conditions such as hard rocks and fractured rock layers, without generating electric sparks, and suitable for high gas flammable and explosive environments such as coal mines; Some models adopt lightweight design, are portable and easy to transport, easy to operate and maintain, and balance the flexibility of field operations with long-term stability. They are commonly used safe and efficient equipment in small and medium-sized drilling projects.

Technical Specifications
Parameter Value
Product Type Crawler Mounted Drilling Rig
Drilling Hole Diameter 105-300 mm
Drilling Rod Length 3 m
Weight 5.5 MT
Rotary Torque 5900
Material Rubber Track
Lifting Force
18T
Maximum Rotational Speed
30/120r/min
Overall Dimensions
3.8m*1.8m*2.3m
Engine
Xidong:65KW
Safety taboos
It is strictly prohibited to operate underground in mines without checking gas concentration and ventilation, and it is strictly prohibited to operate under overpressure (air compressor pressure>0.7MPa) or without lubrication (drill pipe joints not coated with grease);
During the drilling process, it is strictly prohibited to touch the rotating drill rod or drill bit with hands, and it is strictly prohibited to stand directly below the drilling rig (to prevent the drilling tool from falling);
It is prohibited to dismantle air ducts and drill rods while the drilling rig is running, and it is forbidden to use the drilling rig to lift heavy objects (such as dragging other equipment);
Fault handling must be carried out after shutting down and cutting off the air supply. It is strictly prohibited to carry out "pressure maintenance". For complex faults (such as damage to the pneumatic motor), professional personnel should be contacted, and unauthorized disassembly of the core part is prohibited
Precautions for maintenance and upkeep
All maintenance operations must be carried out after shutting down the machine and cutting off the air supply (shutting down the air compressor, releasing the air duct pressure). It is strictly prohibited to disassemble components under pressure to prevent safety accidents;
When replacing components, it is necessary to use original parts that match the drilling rig model (such as pneumatic motor blades, impactor pistons) to avoid equipment failure caused by non original parts;
Establish a maintenance ledger to record the maintenance time, component replacement status, and operation duration for each maintenance, in order to trace the equipment status and prevent malfunctions in advance.

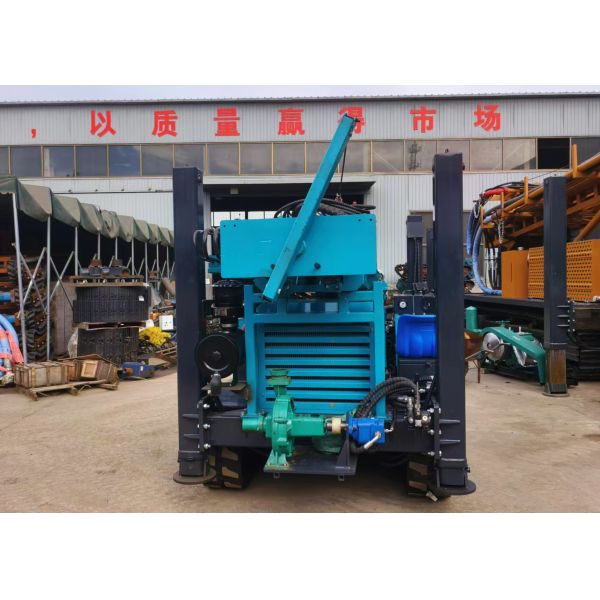

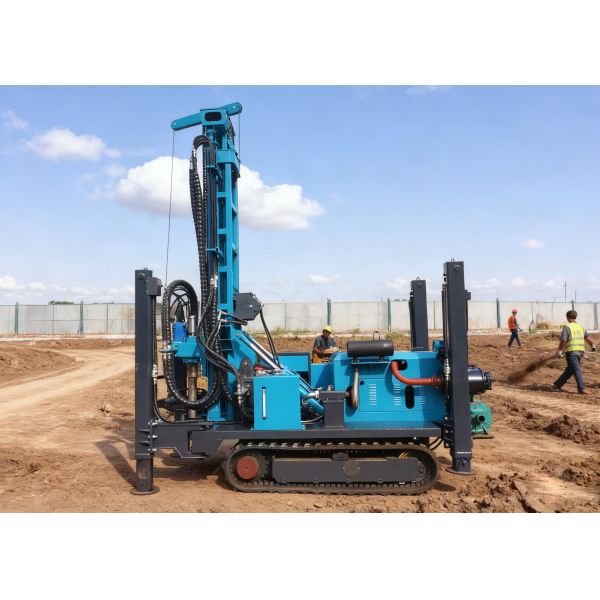

Product Images
High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement

High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement

High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement

High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement

High-efficiency Pneumatic 200 Drilling Rig Crawler Mounted Easy Movement
