Continuous Operation Tracked Drilling Rig With High Stability
Continuous Operation Tracked Drilling Rig With High Stability
Continuous Operation Tracked Drilling Rig With High Stability
Continuous Operation Tracked Drilling Rig With High Stability
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Jinzhou,China
Product Name :
ST 200 Pneumatic Drilling Rig
Key words :
Water well drilling rig, drilling rig, pneumatic water well drilling rig
Drilling Hole Diameter :
105-300 Mm
Drilling Depth :
100-200 Meters
Drilling Rod Diameter :
76 Mm
Drilling Rod Length :
3 M
Walking speed :
2.5km/h
High leg travel :
1.35m
Maximum turning torque :
5900/NM
Maximum rotation speed :
85/170r/min
Overall Dimensions :
3.8m*1.8m*2.3m
Engine :
Xidong:65KW
Description
Continuous Operation Tracked Drilling Rig with High Stability
Pneumatic Water Well Drilling Rig with Strong Drilling Ability and Flexible Steering
The pneumatic drilling rig operates by converting compressed air pressure energy into mechanical energy. Utilizing a pneumatic motor and impactor, it achieves both rotation and impact actions for effective rock breaking. The drilling process consists of three key stages: power transmission, action execution, and drilling operation.
Technical Specifications
Parameter Value
Product Type Crawler Mounted Drilling Rig
Drilling Hole Diameter 105-300 mm
Drilling Rod Length 3 m
Weight 5.5 MT
Rotary Torque 5900
Material Rubber Track
Walking speed 2.5km/h
Lifting Force 18T
Maximum Rotational Speed 30/120r/min
Climbing degree 30
High leg travel 1.35m
Overall Dimensions 3.8m*1.8m*2.3m
Engine Xidong:65KW
Power On Safety Control
  • Gradually open the air compressor valve using a "small opening → gradual increase" method to prevent damage from sudden airflow
  • After starting, idle for 1-2 minutes to check for smooth operation and abnormal noises
  • Verify emergency stop button responsiveness before lowering drilling tool
Drilling Process Safety Regulations
  • Begin with "low speed, light pressure" drilling (≤1/3 rated value) until 10-20cm depth is achieved
  • Monitor pressure gauges and drilling rig vibration continuously during operation
  • Immediately stop operation for any pressure drops, severe shaking, or abnormal noises
  • Never touch rotating components, stand directly below the rig, or modify equipment during operation
  • Always stop machine, cut gas supply, and clean threads before adding drill rods
Product Images

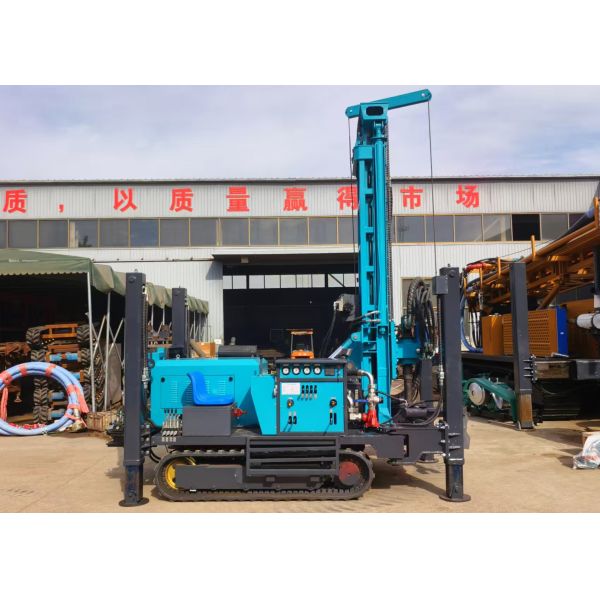

Front view of ST-200 drilling rig
Continuous Operation Tracked Drilling Rig With High Stability
Continuous Operation Tracked Drilling Rig With High Stability

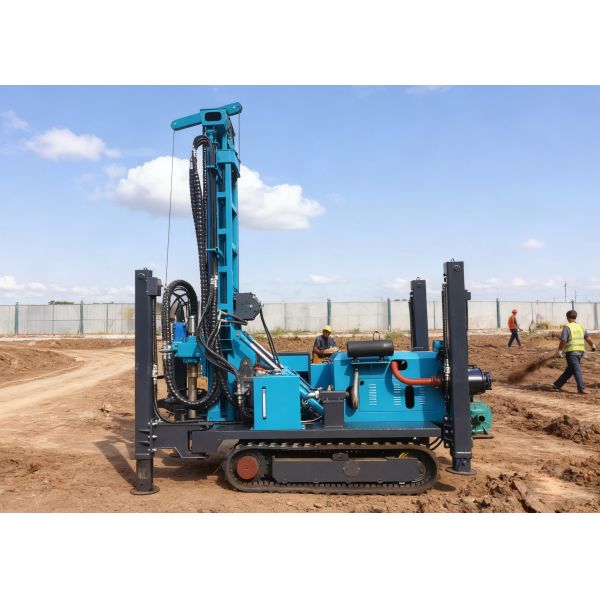

Side view of ST-200 drilling rig
Continuous Operation Tracked Drilling Rig With High Stability
Operational view of drilling rig
Continuous Operation Tracked Drilling Rig With High Stability
Drilling mechanism close-up

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
