Durable Tire Type Water Well Drilling Rig With High Safety
Durable Tire Type Water Well Drilling Rig With High Safety
Durable Tire Type Water Well Drilling Rig With High Safety
Durable Tire Type Water Well Drilling Rig With High Safety
Specifications
Product Name :
200 type tire type water well drilling rig
Drilling method :
Mud pump drilling and air compressor drilling
Drilling diameter :
Φ105-Φ350mm
Drilling depth :
200m
One push length :
3M
Iift force :
18T
Weight :
5.5T
Diesel engine power :
Xidong 65 kW
Dimension :
4400x2150x2200mm
Working Condition :
Loose layer and bedrock
Brand Name :
Shitan
Model Number :
ST-200
Place of Origin :
Hebei China
MOQ :
1 set
Price :
35000 USD-45000 USD
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Description
ST-200 Water Well Drilling Rig
The tire type water well drilling rig is a compact, mobile drilling solution designed for civilian drinking water and agricultural irrigation applications. Its tire-mounted design provides excellent mobility for complex outdoor conditions, requiring no complex installation while delivering stable performance across various geological formations including soil, sand layers, and weathered rocks.
Technical Specifications
Parameter Value
Model Shitan ST 200
Max Drilling Depth 200m
Drilling Diameter 105-350mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3m
Rod Diameter 76-89mm
Main Shaft Pressure 4T
Lifting Force 18T
Power Head Stroke 40m
Max Rotary Torque 5900 Nm
Max Rotary Speed 30-120 r/min
Secondary Winch Lifting Force 1T
Jacks Stroke 1.35m
Moving Speed 2.5 km/h
Uphill Angle 21°
Weight 5.5T
Engine Xidong 65kw
Overall Dimensions 4400*2150*2200mm
Working Condition Loose layer and bedrock
Primary Applications
  • Domestic Water Supply: Rural household and community water wells for daily consumption
  • Agricultural Irrigation: Water wells for farmland, orchards, and greenhouse operations
  • Small Industrial Use: Water supply for processing plants and breeding farms
  • Emergency Water Supply: Rapid deployment for construction camps and remote areas
  • Landscaping Projects: Irrigation wells for rural water supply systems
Operational Scope
  • Geological Compatibility: Soil, sand layers, gravel, and weathered rock formations
  • Project Range: 50-200 meter drilling depth (model dependent)
  • Site Flexibility: Suitable for scattered plots and remote locations
Operating Principle
  • Power Transmission: Engine-driven hydraulic/air pump powers drill rod and bit
  • Drilling Mechanism: Rotating bit cuts through soil and rock formations
  • Debris Management: Mud circulation removes cuttings while stabilizing bore walls
  • Stabilization: Support legs secure rig during operation for precise drilling

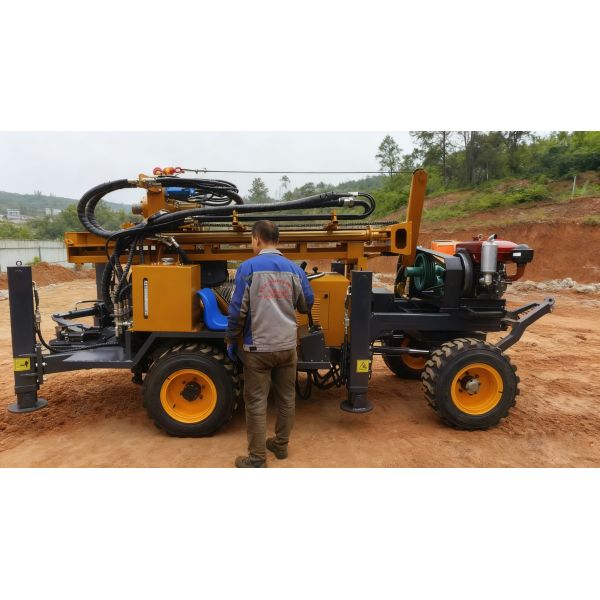

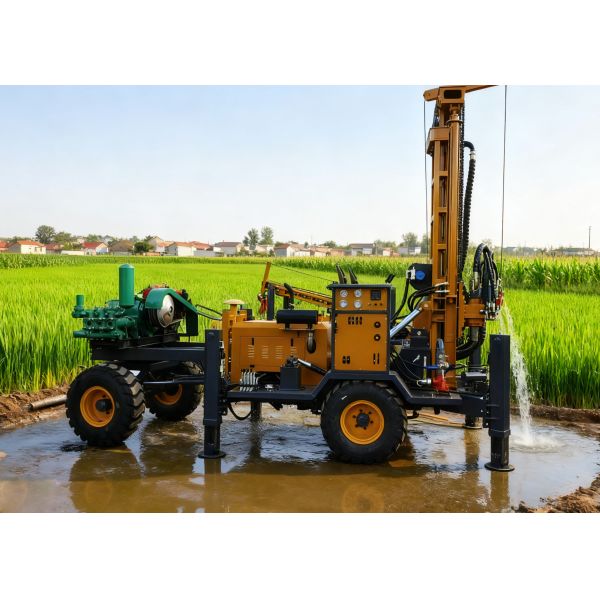

Product Images
Durable Tire Type Water Well Drilling Rig With High Safety Durable Tire Type Water Well Drilling Rig With High Safety Durable Tire Type Water Well Drilling Rig With High Safety Durable Tire Type Water Well Drilling Rig With High Safety Durable Tire Type Water Well Drilling Rig With High Safety Durable Tire Type Water Well Drilling Rig With High Safety
